Sony PMW-EX280 - Top Panel Assembly

2-6. Top Panel Assembly
Preparation
1. Remove the battery lid. (Refer to “2-2. Lithium Battery”.)
2. Remove the bottom cover. (Refer to “2-3. Bottom Cover and Tripod Washer”.)
3. Remove the inside panel assembly. (Refer to “2-4-1. Inside Panel Assembly”.)
4. Remove the outside panel assembly. (Refer to “2-5-1. Outside Panel Assembly”.)
Procedure
1. Remove the four screws.
2. Remove the top panel, waterproof sheet (IN), and waterproof sheet (OUT).

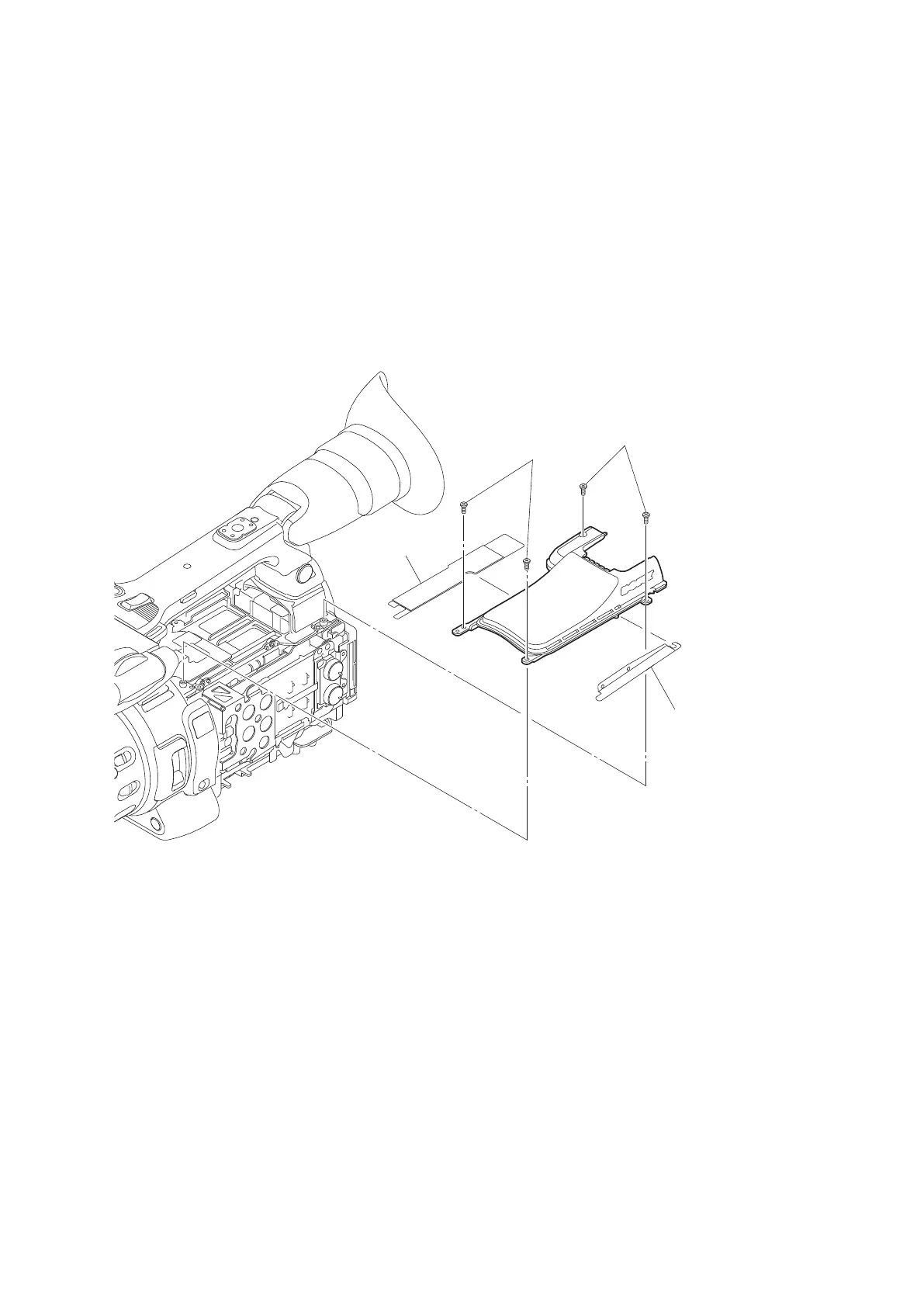

Precision screws
(M2 x 5)
Waterproof sheet (IN)
Waterproof sheet
(OUT)
Precision screws
(M2 x 5)
3. Install the removed parts by reversing steps of removal.
PMW-200/PMW-EX280
2-12
