2-11. IO-255 Board
Preparation
1. Remove the battery lid. (Refer to “2-2. Lithium Battery”.)
2. Remove the bottom cover. (Refer to “2-3. Bottom Cover and Tripod Washer”.)
3. Remove the inside panel assembly. (Refer to “2-4-1. Inside Panel Assembly”.)
4. Remove the outside panel assembly. (Refer to “2-5-1. Outside Panel Assembly”.)
5. Remove the top panel assembly. (Refer to “2-6. Top Panel Assembly”.)
6. Remove the SxS slot assembly. (Refer to “2-7-1. SxS Slot Assembly”.)
7. Remove the front panel assembly. (Refer to “2-8-1. Front Panel Assembly”.)
8. Remove the rear panel assembly. (Refer to “2-9. Rear Panel Assembly”.)
Procedure
1. Peel off the tape (BT).
2. Disconnect the flexible flat cable from the connector CN2201 on the DCP-56 board.
3. Disconnect the coaxial cable from the IO-255 assembly.
4. Remove the two precision screws (M2 x 4) to detach the IO-255 assembly.

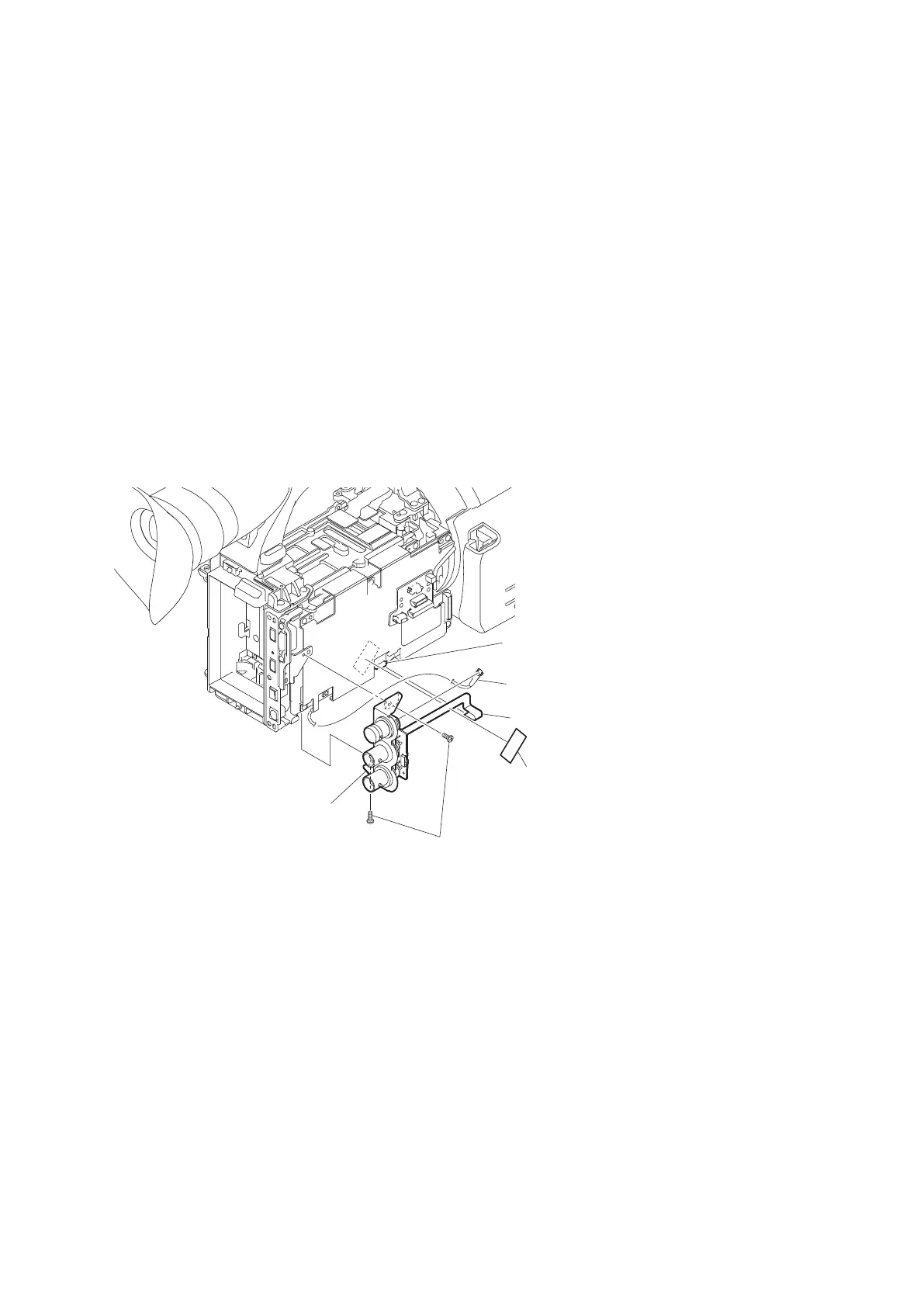

Tape (BT)
Coaxial cable
IO-255 assembly
CN2201 (DCP-56 board)
Flexible flat cable
Precision screws
(M2 x 4)
5. Unsolder the coaxial connectors (BNC type) on the IO-255 board.
6. Remove the IO-255 board in the arrow direction, and then remove the coaxial connectors (BNC type) and the V-
OUT spacer.
PMW-200/PMW-EX280
2-20
To Next Page
