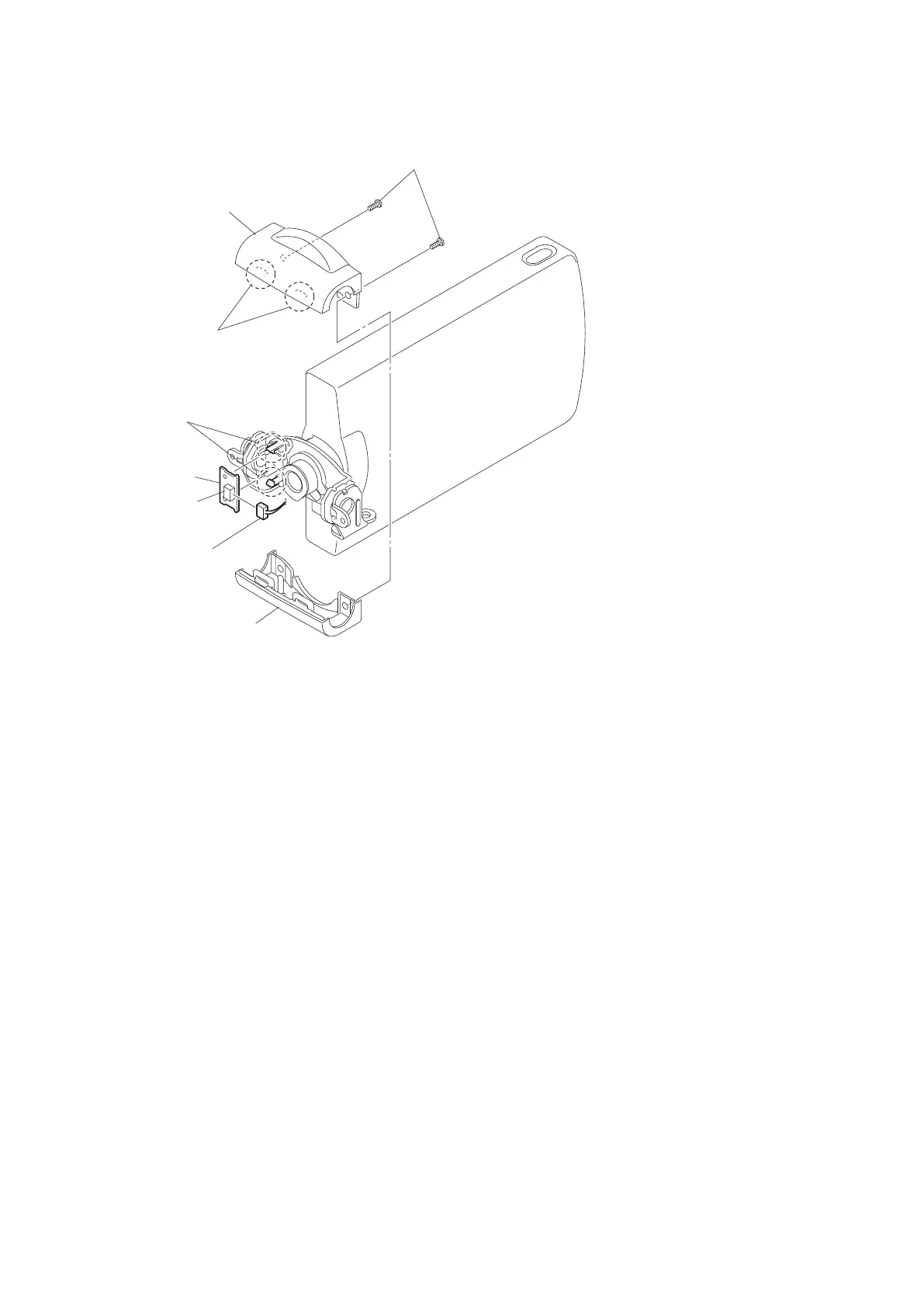

3. Remove the two claws to detach the DET-55 board.
Claws
Claws
DET-55 board
CN100
Harness
Panel hinge cabinet B
Panel hinge cabinet T
Precision screws (M2 x 5)
4. Install the removed parts by reversing steps of removal.
2-13-7. LCD Panel
Preparation
1. Remove the handle (upper) case assembly. (Refer to “2-13-2. Control Switch Block (GZ92000)”.)
2. Remove the control panel assembly. (Refer to “2-13-3. MIC Unit”.)
3. Remove the LCD assembly. (Refer to “2-13-5. LCD Assembly”.)
Procedure
1. Remove the two precision screws (M2 x 5) and the two claws to detach the LCD cabinet.
2. Peel off the tape 50 and the LCD conductive tape.
3. Remove the main gasket (H).
4. Remove the two precision screws (M2 x 4).
PMW-200/PMW-EX280
2-30
