2-16. Main Chassis
2-16-1. IF-1182 Board
Preparation
1. Remove the battery lid. (Refer to “2-2. Lithium Battery”.)
2. Remove the bottom cover. (Refer to “2-3. Bottom Cover and Tripod Washer”.)
3. Remove the inside panel assembly. (Refer to “2-4-1. Inside Panel Assembly”.)
4. Remove the outside panel assembly. (Refer to “2-5-1. Outside Panel Assembly”.)
5. Remove the top panel assembly. (Refer to “2-6. Top Panel Assembly”.)
Procedure
1. Peel off the tape.
2. Disconnect the HN-387 board from the connector CN102 on the IF-1182 board.
3. Disconnect the flexible flat cable from the connector CN103 on the IF-1182 board.
4. Remove the two precision screws (M2 x 4).
5. Disconnect the HN-386 board from the connector CN100 on the IF-1182 board to detach the IF-1182 board.

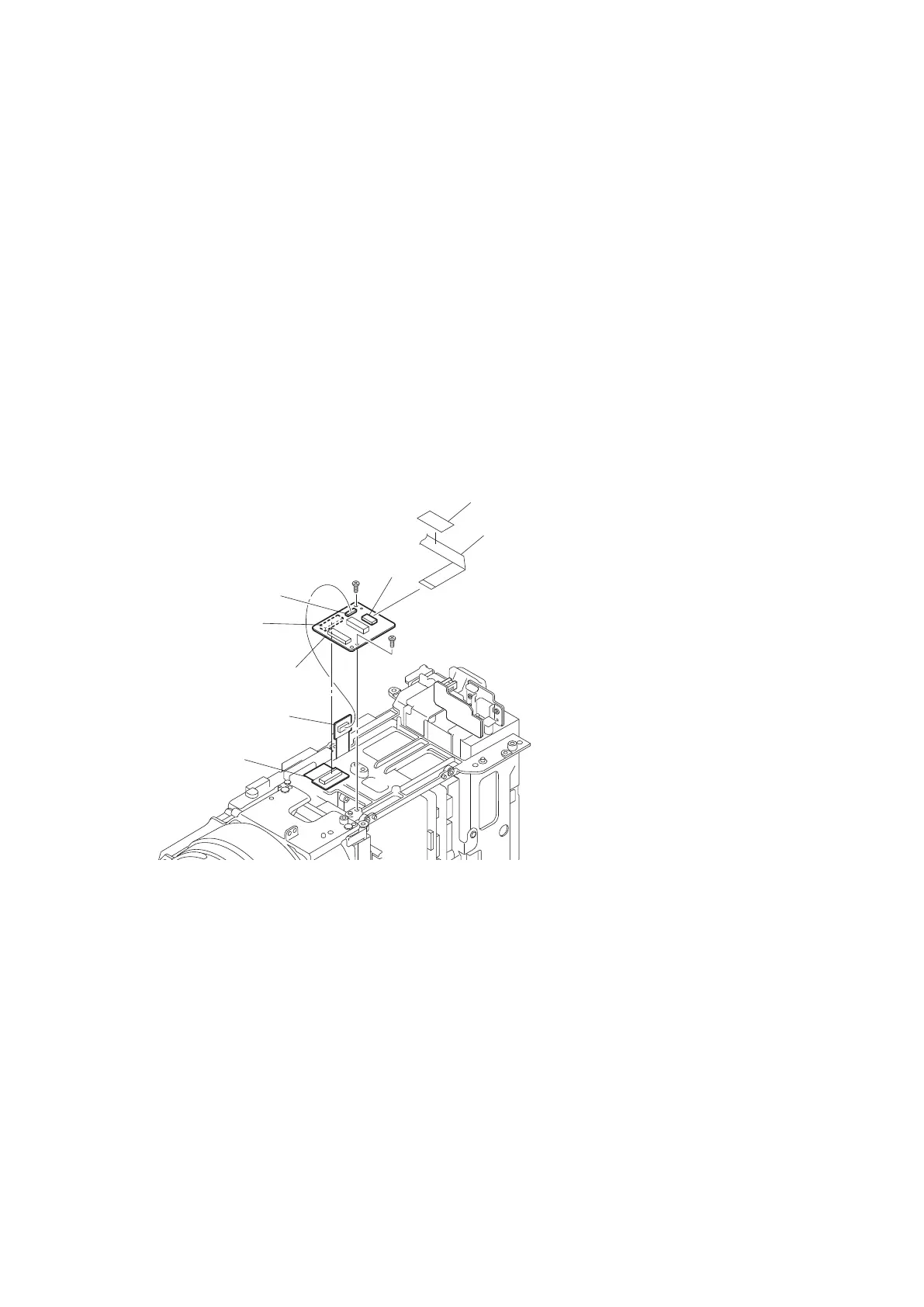

Tape
Flexible flat cable
IF-1182 board
HN-387 board
HN-386 board
CN102
CN103
CN100
Precision screw
(M2 x 4)
Precision screw
(M2 x 4)
6. Install the removed parts by reversing steps of removal.
2-16-2. DPR-343 Board
Preparation
1. Remove the battery lid. (Refer to “2-2. Lithium Battery”.)
2. Remove the bottom cover. (Refer to “2-3. Bottom Cover and Tripod Washer”.)
3. Remove the inside panel assembly. (Refer to “2-4-1. Inside Panel Assembly”.)
4. Remove the outside panel assembly. (Refer to “2-5-1. Outside Panel Assembly”.)
5. Remove the top panel assembly. (Refer to “2-6. Top Panel Assembly”.)
6. Remove the SxS slot assembly. (Refer to “2-7-1. SxS Slot Assembly”.)
7. Remove the front panel assembly. (Refer to“2-8-1. Front Panel Assembly”.)
8. Remove the rear panel assembly. (Refer to “2-9. Rear Panel Assembly”.)
9. Remove the IO-255 assembly. (Refer to“2-11. IO-255 Board”.)
10. Remove the DCP-56 board. (Refer to “2-12. DCP-56 Board”.)
