Sony PMW-EX280 - Rear Panel Assembly

2-9. Rear Panel Assembly
Preparation
1. Remove the battery lid. (Refer to “2-2. Lithium Battery”.)
2. Remove the bottom cover. (Refer to “2-3. Bottom Cover and Tripod Washer”.)
3. Remove the inside panel assembly. (Refer to “2-4-1. Inside Panel Assembly”.)
4. Remove the outside panel assembly. (Refer to “2-5-1. Outside Panel Assembly”.)
5. Remove the top panel assembly. (Refer to “2-6. Top Panel Assembly”.)
6. Remove the SxS slot assembly. (Refer to “2-7-1. SxS Slot Assembly”.)
Procedure

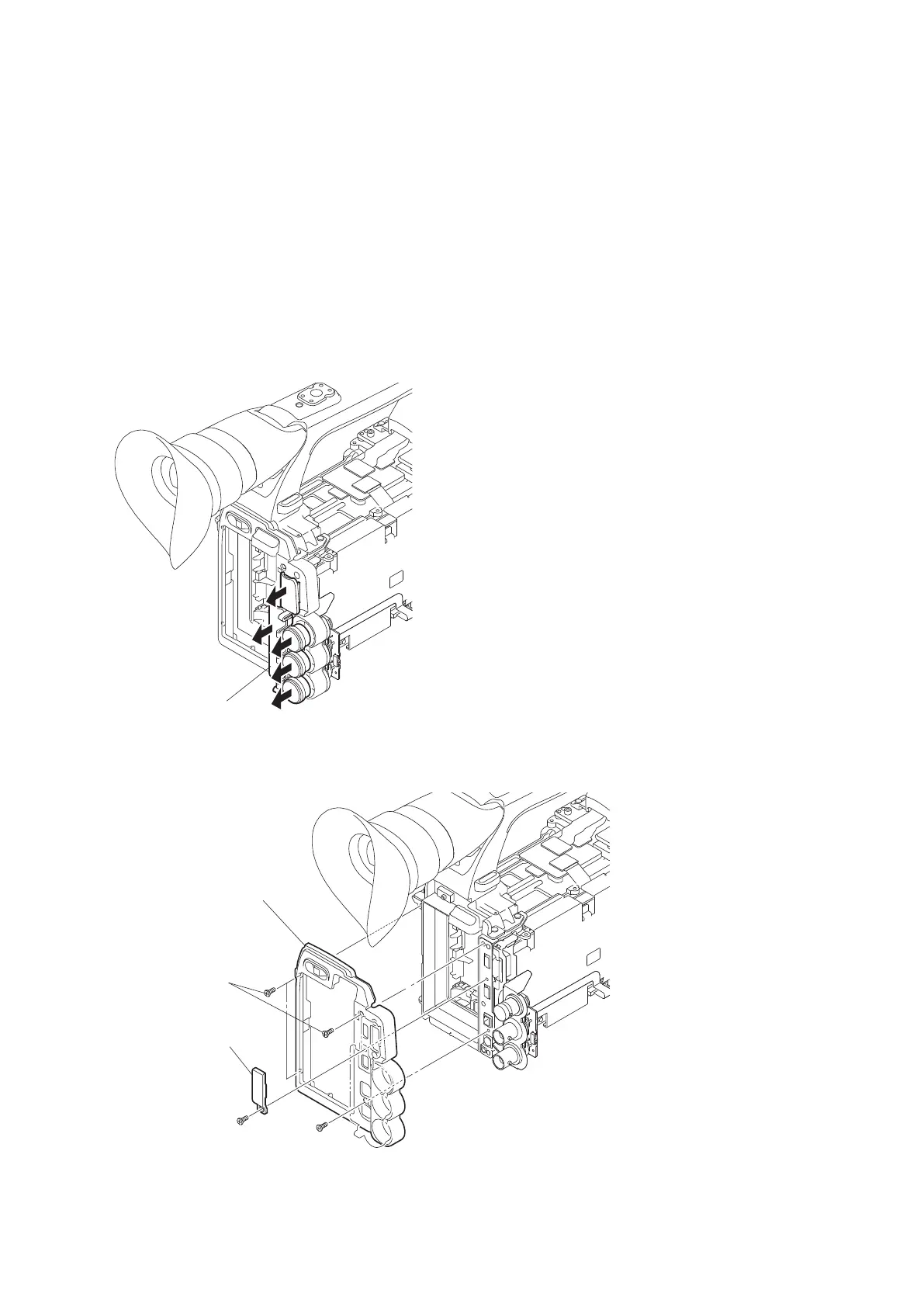

1. Detach the cap from the connector.
Caps
2. Remove the (a) precision screw (M2 x 5) to detach the USB cap.
3. Remove the four (b) precision screws (M2 x 5) to detach the rear panel assembly.
USB cap
Rear panel assembly
(a) Precision screw
(M2 x 5)
(b) Precision screws
(M2 x 5)
(b) Precision screws
(M2 x 5)
4. Install the removed parts by reversing steps of removal.
PMW-200/PMW-EX280
2-18
