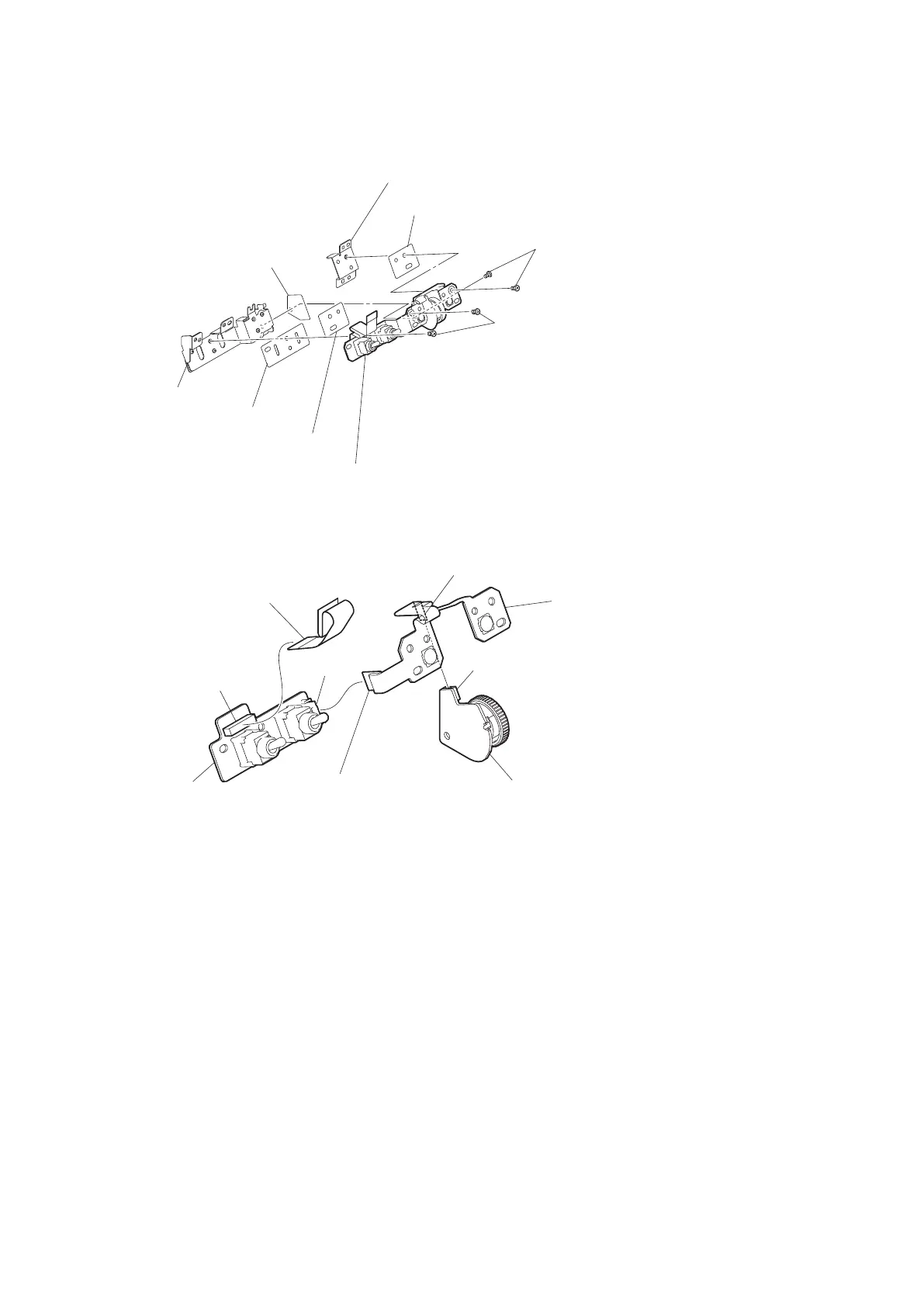

3. Remove the four precision screws (M2 x 4) to detach the SW board assembly, insulating sheet A, two SW insulating
sheets B, and SW insulating sheet C.
SW board assembly
SW insulating sheet A
SW bracket A
SW bracket B
SW insulating sheet B
SW insulating sheet C
SW insulating sheet B
Precision screws
(M2 x 4)
Precision screws
(M2 x 4)
4. Disconnect the flexible board from the connector CN100 on the SW-1578 board.
5. Disconnect the flexible board from the connector CN101 on the SW-1577 board.
6. Disconnect the flexible flat cable from the connector CN100 on the SW-1577 board.
SW-1579 board
SW-1578 boardSW-1577 board
Flexible flat cable
CN100
CN101
CN100
Flexible board
Flexible board
7. Install the removed parts by reversing steps of removal.
2-4-3. SxS Lid Assembly
Preparation
1. Remove the battery lid. (Refer to “2-2. Lithium Battery”.)
2. Remove the bottom cover. (Refer to “2-3. Bottom Cover and Tripod Washer”.)
3. Remove the inside panel assembly. (Refer to “2-4-1. Inside Panel Assembly”.)
Procedure
1. Remove the two tapping screws (2 x 5) to detach the lid shaft retainer.
PMW-200/PMW-EX280
2-6
