6. Remove the SxS slot assembly. (Refer to “2-7-1. SxS Slot Assembly”.)
7. Remove the front panel assembly. (Refer to “2-8-1. Front Panel Assembly”.)
8. Remove the rear panel assembly. (Refer to “2-9. Rear Panel Assembly”.)
9. Remove the IO-255 assembly. (Refer to “2-11. IO-255 Board”.)
10. Remove the main heat spreader DCP. (Refer to “2-12. DCP-56 Board”.)
11. Remove the handle assembly. (Refer to “2-13-1. Handle Assembly”.)
12. Remove the front lens assembly. (Refer to “2-14-1. Front Lens Assembly”.)
13. Remove the HN-399 board. (Refer to “2-14-2. HN-399 Board”.)
14. Remove the prism block unit. (Refer to “2-14-3. Prism Block Unit”.)
Procedure

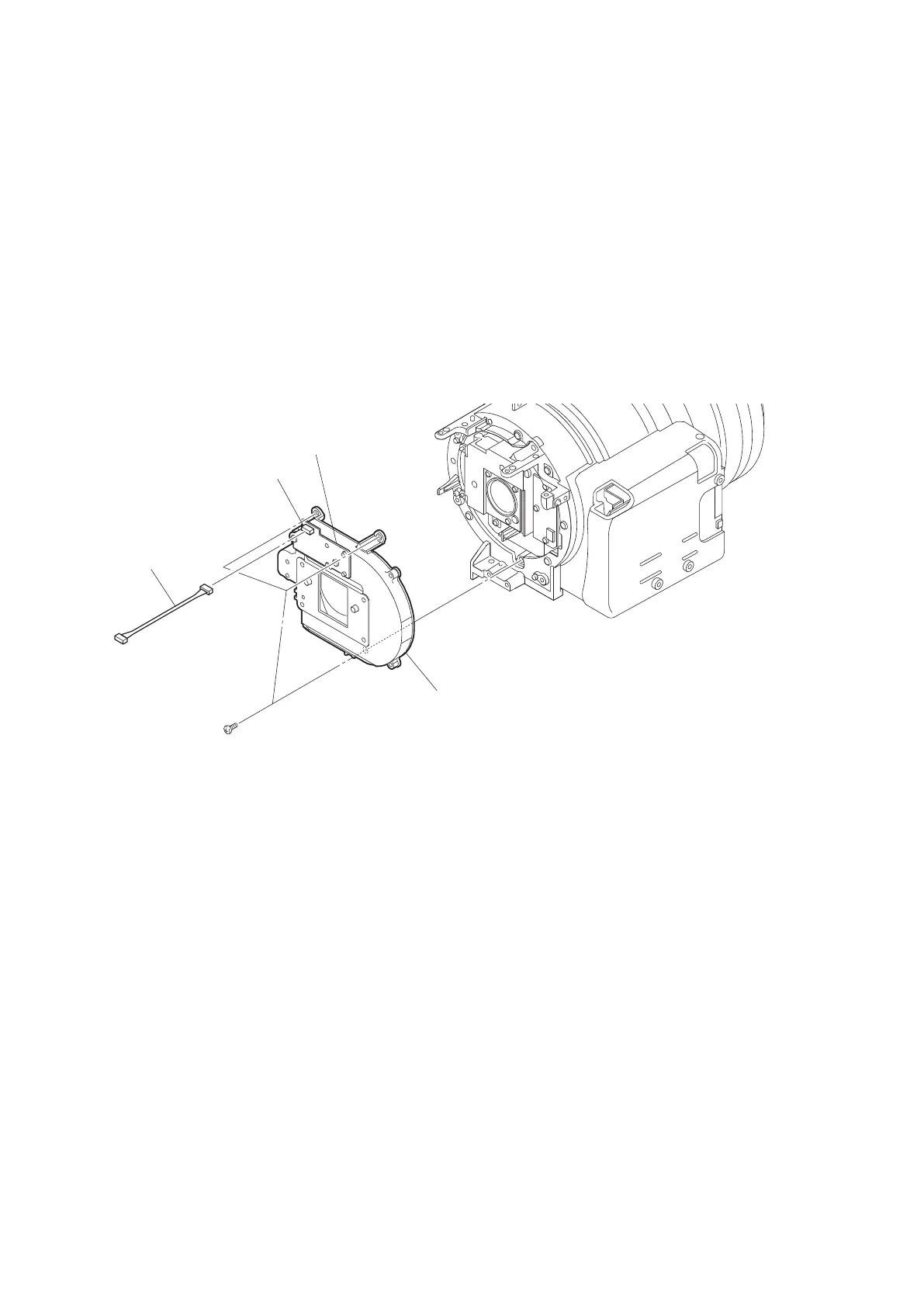

1. Disconnect the harness from the connector CN1 on the SE board.
2. Remove the three screws to detach the optical ND filter.
P2.6 x 5
Optical ND filter
CN1
SE board
Harness
3. Install the removed parts by reversing steps of removal.
2-14-5. Lens Unit
Preparation
1. Remove the battery lid. (Refer to “2-2. Lithium Battery”.)
2. Remove the bottom cover. (Refer to “2-3. Bottom Cover and Tripod Washer”.)
3. Remove the inside panel assembly. (Refer to “2-4-1. Inside Panel Assembly”.)
4. Remove the outside panel assembly. (Refer to “2-5-1. Outside Panel Assembly”.)
5. Remove the top panel assembly. (Refer to “2-6. Top Panel Assembly”.)
6. Remove the SxS slot assembly. (Refer to “2-7-1. SxS Slot Assembly”.)
7. Remove the front panel assembly. (Refer to“2-8-1. Front Panel Assembly”.)
8. Remove the rear panel assembly. (Refer to “2-9. Rear Panel Assembly”.)
9. Remove the IO-255 assembly. (Refer to“2-11. IO-255 Board”.)
10. Remove the main heat spreader DCP. (Refer to “2-12. DCP-56 Board”.)
11. Remove the handle assembly. (Refer to “2-13-1. Handle Assembly”.)
12. Remove the front lens assembly. (Refer to “2-14-1. Front Lens Assembly”.)
13. Remove the HN-399 board. (Refer to “2-14-2. HN-399 Board”.)
14. Remove the prism block unit. (Refer to “2-14-3. Prism Block Unit”.)
15. Remove the optical ND filter. (Refer to “2-14-4. Optical ND Filter”.)
PMW-200/PMW-EX280
2-43
