2-15. Battery Case
2-15-1. Battery Case Assembly
Preparation
1. Remove the battery lid. (Refer to “2-2. Lithium Battery”.)
2. Remove the bottom cover. (Refer to “2-3. Bottom Cover and Tripod Washer”.)
3. Remove the inside panel assembly. (Refer to “2-4-1. Inside Panel Assembly”.)
4. Remove the outside panel assembly. (Refer to “2-5-1. Outside Panel Assembly”.)
5. Remove the top panel assembly. (Refer to “2-6. Top Panel Assembly”.)
6. Remove the SxS slot assembly. (Refer to “2-7-1. SxS Slot Assembly”.)
7. Remove the front panel assembly. (Refer to “2-8-1. Front Panel Assembly”.)
8. Remove the rear panel assembly. (Refer to “2-9. Rear Panel Assembly”.)
9. Remove the IO-255 assembly. (Refer to“2-11. IO-255 Board”.)
10. Remove the main heat spreader DCP. (Refer to “2-12. DCP-56 Board”.)
11. Remove the handle assembly. (Refer to “2-13-1. Handle Assembly”.)
Procedure
1. Disconnect the harness from the connector CN202 on the RE-298 board.
2. Disconnect the harnesses from the connectors CN100 and CN101 on the RE-299 board.
3. Remove the four precision screws (M2 x 5) to detach the battery case assembly.
4. Remove the two tapping screws (2 x 5) to detach the DC bracket from the battery case assembly.

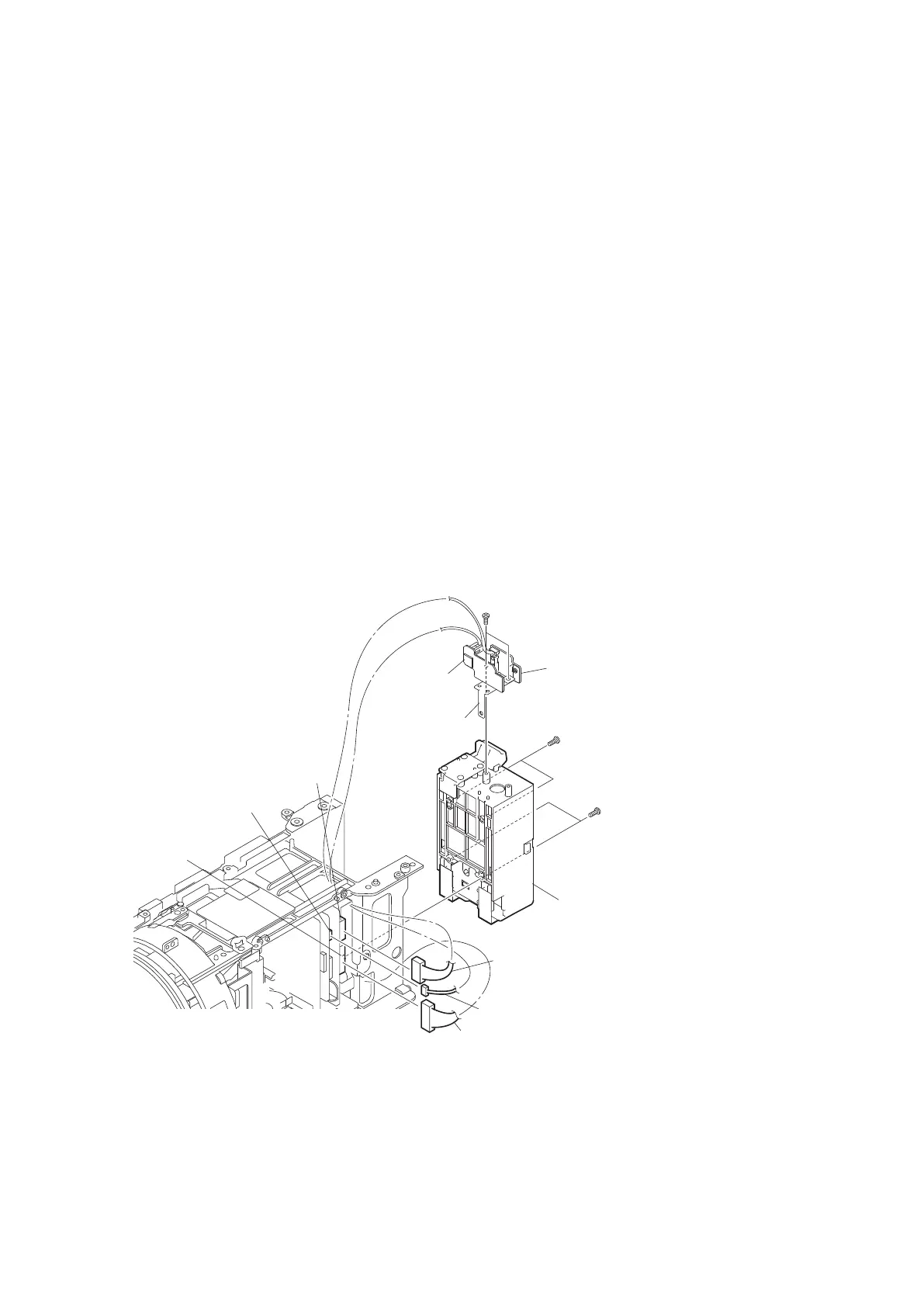

DC-167 board
CN101
RE-299 board
CN100
RE-299 board
CN202
RE-298 board
DC bracket
Battery case assembly
PSW-97 board
Tapping screws
(2 x 5)
Precision screws
(M2 x 5)
Precision screws
(M2 x 5)
Harness
Harness
Harness
5. Install the removed parts by reversing steps of removal.
2-15-2. DC-167 Board/PSW-97 Board
Preparation
1. Remove the battery lid. (Refer to “2-2. Lithium Battery”.)
2. Remove the bottom cover. (Refer to “2-3. Bottom Cover and Tripod Washer”.)
