2-13. Handle
2-13-1. Handle Assembly
Preparation
1. Remove the battery lid. (Refer to “2-2. Lithium Battery”.)
2. Remove the bottom cover. (Refer to “2-3. Bottom Cover and Tripod Washer”.)
3. Remove the inside panel assembly. (Refer to “2-4-1. Inside Panel Assembly”.)
4. Remove the outside panel assembly. (Refer to “2-5-1. Outside Panel Assembly”.)
5. Remove the top panel assembly. (Refer to “2-6. Top Panel Assembly”.)
6. Remove the SxS slot assembly. (Refer to “2-7-1. SxS Slot Assembly”.)
7. Remove the front panel assembly. (Refer to “2-8-1. Front Panel Assembly”.)
8. Remove the rear panel assembly. (Refer to “2-9. Rear Panel Assembly”.)
9. Remove the IO-255 assembly. (Refer to “2-11. IO-255 Board”.)
10. Remove the main heat spreader DCP. (Refer to “2-12. DCP-56 Board”.)
Procedure
1. Peel off the tape (BT).
2. Disconnect the fine-wire coaxial cable with connector from the connector CN2301 on the DCP-56 board.
3. Disconnect the HN-404 board from the connector CN104 on the IF-1182 board.
4. Disconnect the HN-403 board from the connector CN101 on the IF-1182 board.
5. Remove the six precision screws (M2.6 x 5) to detach the handle assembly.

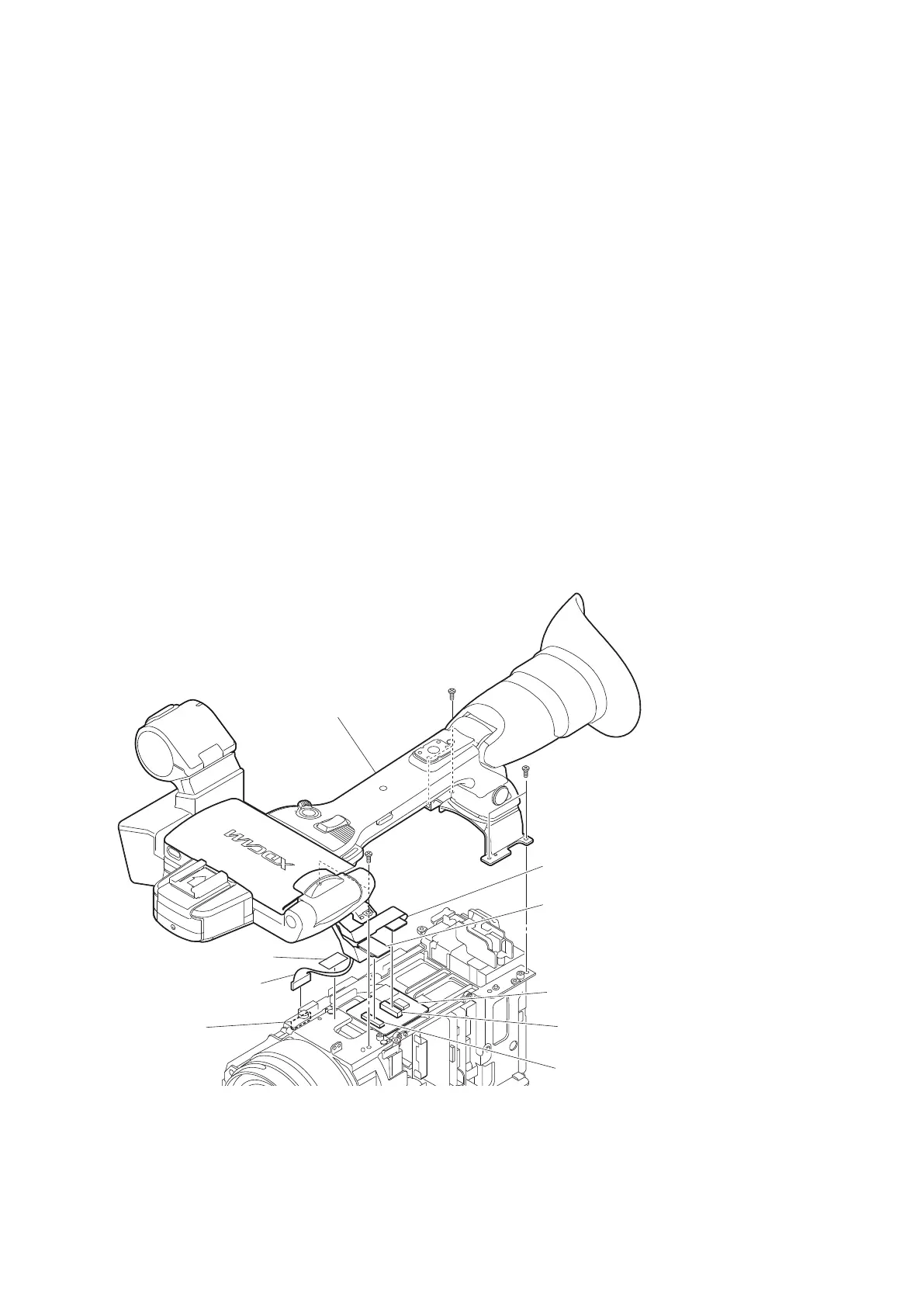

Handle assembly
Fine-wire coaxial cable
CN2301
(DCP-56 board)
CN104
IF-1182 board
HN-403 board
CN101
Precision scerws
(M2.6 x 5)
Precision scerws
(M2.6 x 5)
Precision scerws
(M2.6 x 5)
HN-404 board
Tape (BT)
6. Install the removed parts by reversing steps of removal.
