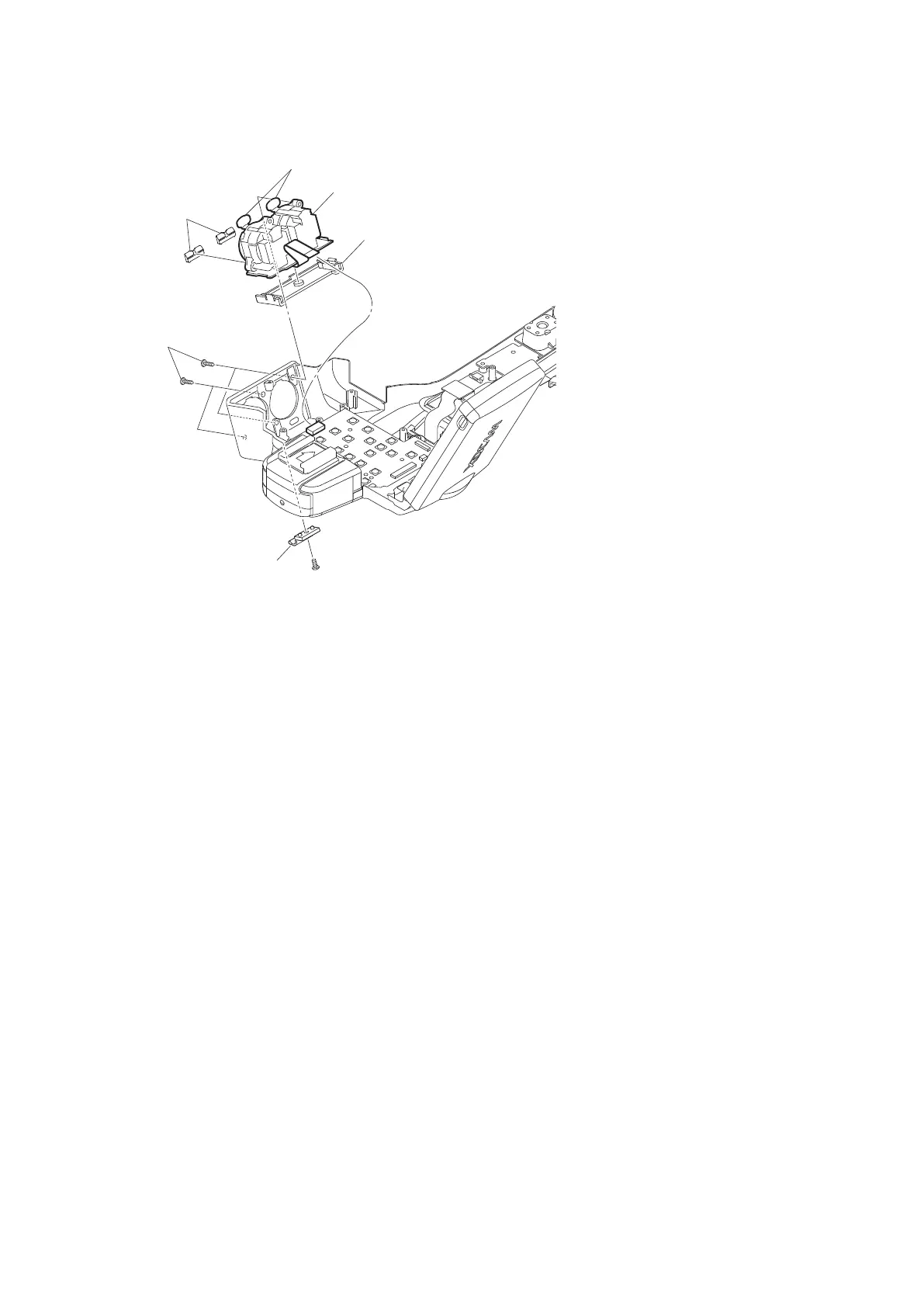

7. Remove the two XLR SW knobs and the XLR SW rail from the AXM-48 board.
Precision screw
(M2 x 5)
AXM-48 board
Push buttons
XLR SW Rail
Cable holder
XLR SW knobs
PTT2.6 x 6
8. Install the removed parts by reversing steps of removal.
2-13-10. KSW-62 Board/KSW-61 Board/Speaker
Items to be prepared
When replacing the speaker:
• Speaker cushion (Part No. 4-119-285-01) x1
Preparation
1. Remove the handle (upper) case assembly. (Refer to “2-13-2. Control Switch Block (GZ92000)”.)
2. Remove the control panel assembly. (Refer to “2-13-3. MIC Unit”.)
Procedure
1. Disconnect the HN-403 board from the connector CN400 on the KSW-62 board.
2. Disconnect the Three harnesses from the connectors CN102, CN402, and CN403 on the KSW-62 board.
3. Disconnect the two flexible boards from the connectors CN100 and CN101 on the KSW-62 board.
4. Remove the eight precision screws (M2 x 4).
PMW-200/PMW-EX280
2-35
