Procedure

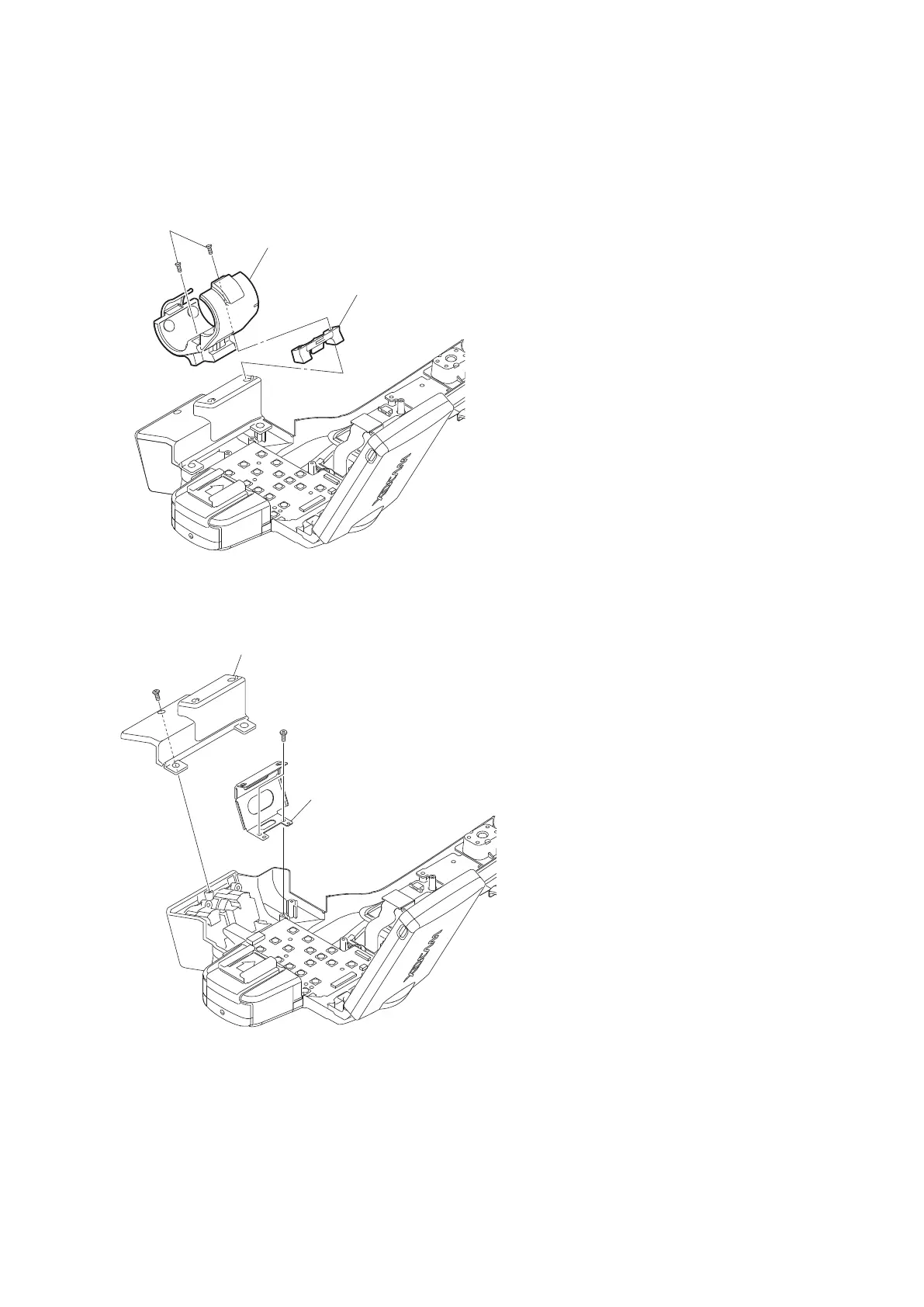

1. Remove the two precision screws (M2.6 x 5) to detach the MIC holder assembly and microphone holder rubber
cover.
Precision screws
(M2.6 x 5)
MIC holder assembly
Microphone holder rubber civer
2. Remove the one precision screw (M2 x 5) to detach the XLR cover.
3. Remove the two precision screws (M2 x 4) to detach the MIC bracket.
Precision screw
(M2 x 5)
Precision screws
(M2 x 4)
XLR cover
MIC bracket
4. Remove the two push buttons.
5. Remove the precision screws (M2 x 5) to detach the cable holder.
6. Remove the four screws (PTT2.6 x 6) to detach the AXM-48 board.
