Sony PMW-EX280 - Section 2 Replacement of Main Parts; 2-1. Outline of Replacement Procedure

Section 2
Replacement of Main Parts
2-1. Outline of Replacement Procedure

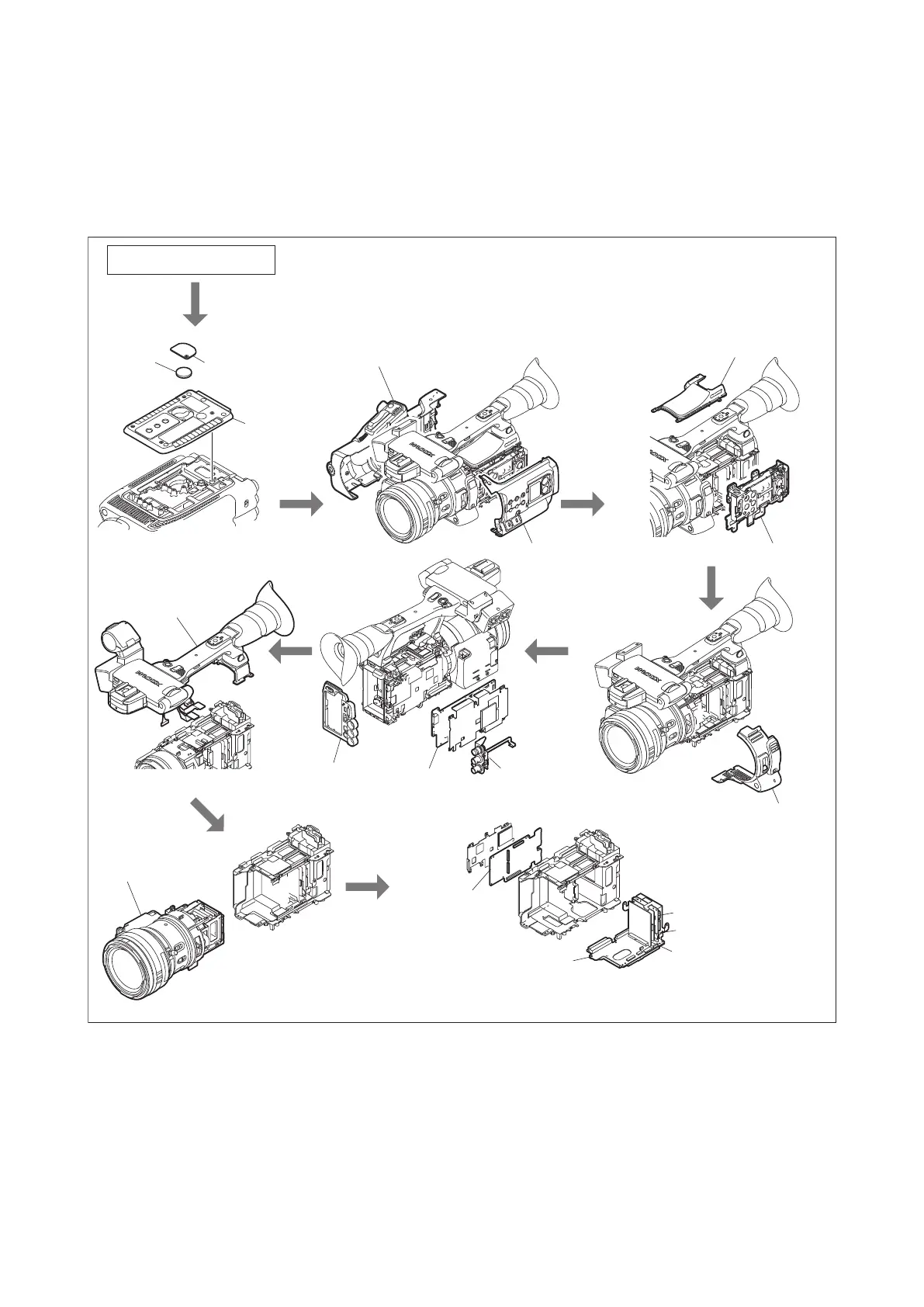

The following figure shows the main parts removing flow.
Inside panel assembly
Top panel assembly
SxS slot assembly
Front panel
assembly
Handle assembly
DPR-343 board
AU-342 board
RE-299 board
RE-298 board
RE-300 board
Rear panel assembly
Front lens assembly
DCP-56 board
Battery lid
Lithium battery
START
Bottom cover
IO-255 assembly
Outside panel assembly
PMW-200/PMW-EX280
2-1
