Section 1
Service Overview

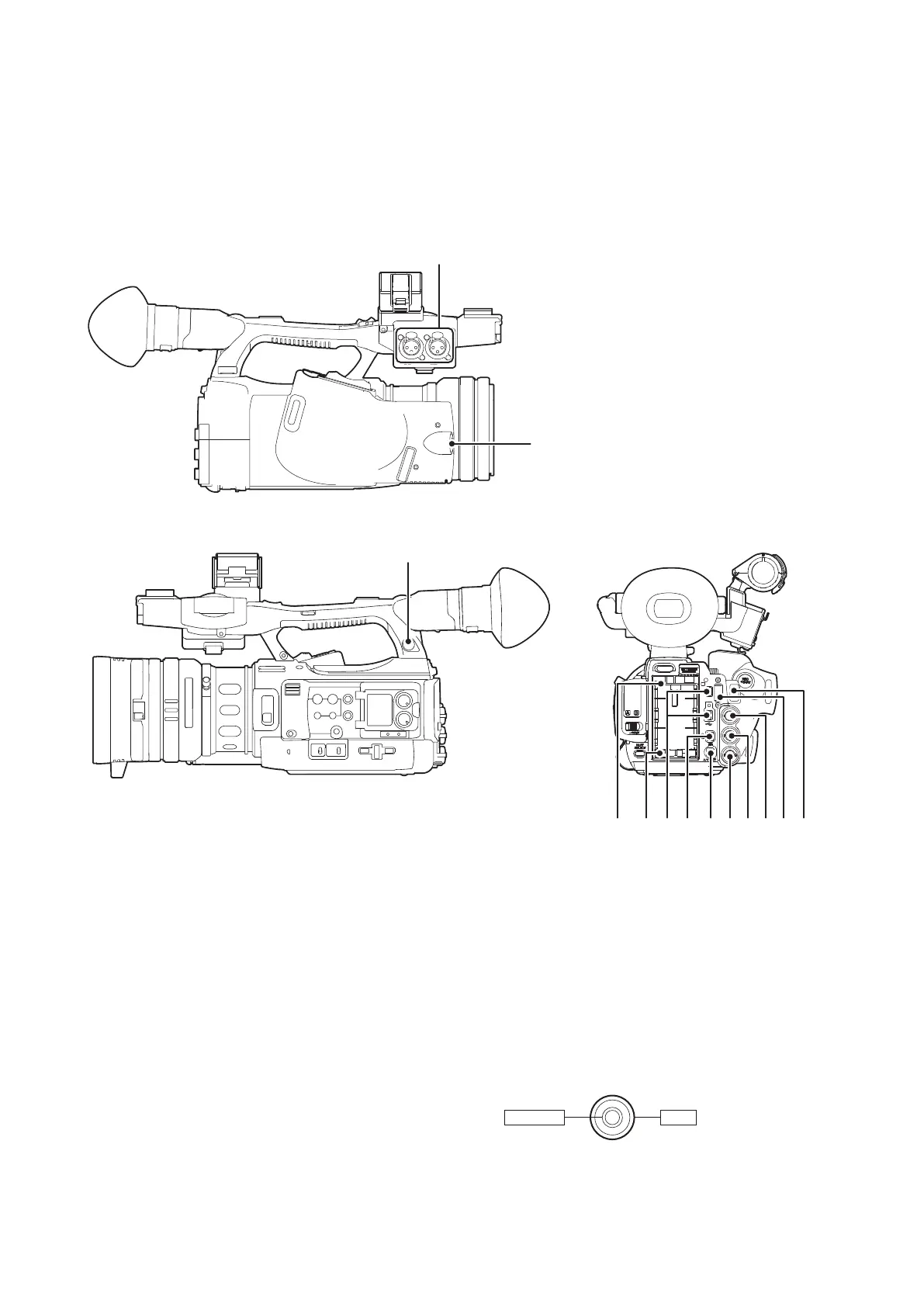

1-1. External Connectors
1-1-1. Connector Input/Output Signals
6
107891142
1
3
13
5 12
Input/Output Signals
1. GENLOCK IN/VIDEO OUT
Both IN and OUT, BNC type
GENLOCK IN: SD binary sync/HD tri-level sync, 1.0 Vp-p,
75 Ω, termination
VIDEO OUT: 1.0 Vp-p, 75 Ω, Unbalanced
2. TC IN/OUT
Both IN and OUT, BNC type
TC IN: 0.5 V to 18 Vp-p
TC OUT: 1.0 Vp-p, 75 Ω, Unbalanced
3. HEADPHONE
Stereo mini jack
–20.5 dBu (reference level output 16 Ω loaded)
Sound monitor, monaural/stereo selectable
4. SDI OUT
SDI signal SMPTE 292M/259M compliant
BNC type, 0.8 Vp-p, 75 Ω, 270 Mbps/1.5 Gbps
5. DC IN
- External View -
2-Pin,
DC JACK TYPE 4
GNDEXT DC
PMW-200/PMW-EX280
1-1
