2-7. SxS Slot
2-7-1. SxS Slot Assembly
Item to be prepared
• Tape50 (Part No. 3-878-657-01) x 1
Preparation
1. Remove the battery lid. (Refer to “2-2. Lithium Battery”.)
2. Remove the bottom cover. (Refer to “2-3. Bottom Cover and Tripod Washer”.)
3. Remove the inside panel assembly. (Refer to “2-4-1. Inside Panel Assembly”.)
4. Remove the outside panel assembly. (Refer to “2-5-1. Outside Panel Assembly”.)
5. Remove the top panel assembly. (Refer to “2-6. Top Panel Assembly”.)
Procedure
1. Peel off the cable protection tape (Tape50).
2. Disconnect the flexible board from the connector CN103 on the SWC-54 board.
3. Disconnect the fine-wire coaxial cable from the connector CN300 on the SWC-54 board.
4. Disconnect the harness from the connector CN104 on the SWC-54 board.
5. Disconnect the fine-wire coaxial cable from the connector CN100 on the EC-75 board.
6. Remove the four precision screws.
7. Disconnect the flexible board from the connector CN103 on the AU-342 board.

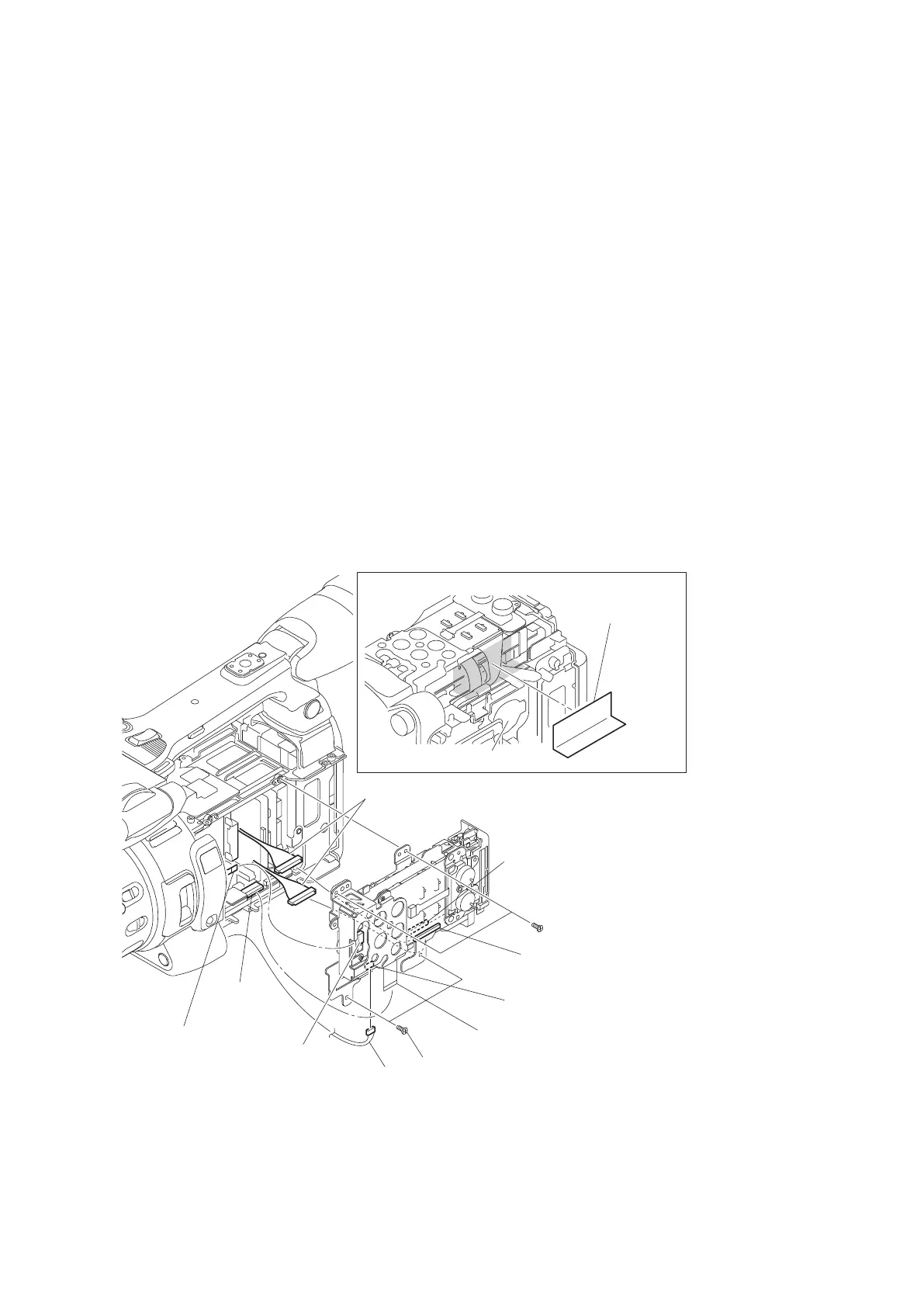

CN103
(AU-342 board)
CN103
(SWC-54 board)
CN100
(EC-75 board)
Precision screws
(M2 x 4)
Precision screws (M2 x 4)
Fine-wire coaxial cables
Cable protection tape
(tape 50)
Bottom side
Harness
Flexible board
Flexible board
CN300
(SWC-54 board)
CN104
(SWC-54 board)
8. Install the removed parts by reversing steps of removal.
