2-7-2. AU Volume Block
Preparation
1. Remove the battery lid. (Refer to “2-2. Lithium Battery”.)
2. Remove the bottom cover. (Refer to “2-3. Bottom Cover and Tripod Washer”.)
3. Remove the inside panel assembly. (Refer to “2-4-1. Inside Panel Assembly”.)
Procedure

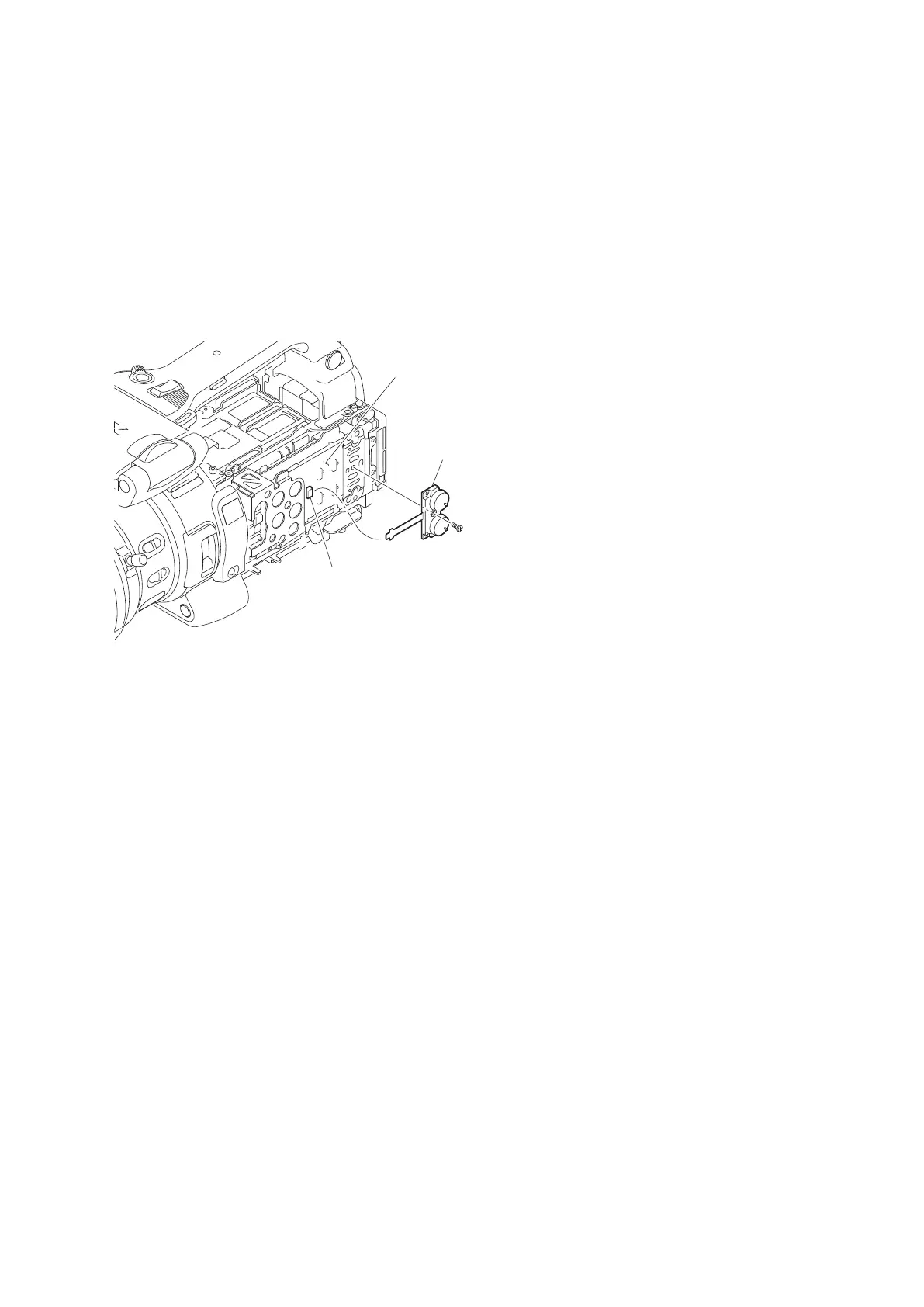

1. Remove the precision screw (M2 x 5).
2. Disconnect the AU volume block from the connector CN102 on the SWC-54 board.
CN102
AU volume block
SWC-54 board
Precision screw
(M2x 5)
3. Install the removed parts by reversing steps of removal.
2-7-3. SWC-54 Board/EC-75 Board
Preparation
1. Remove the battery lid. (Refer to “2-2. Lithium Battery”.)
2. Remove the bottom cover. (Refer to “2-3. Bottom Cover and Tripod Washer”.)
3. Remove the inside panel assembly. (Refer to “2-4-1. Inside Panel Assembly”.)
4. Remove the outside panel assembly. (Refer to “2-5-1. Outside Panel Assembly”.)
5. Remove the top panel assembly. (Refer to “2-6. Top Panel Assembly”.)
6. Remove the SxS slot assembly. (Refer to “2-7-1. SxS Slot Assembly”.)
Procedure
1. Disconnect the flexible board from the connector CN102 on the SWC-54 board.
2. Remove the two (a) precision screws (M2 x 4) to detach the AU hold plate.
3. Remove the tapping screw (2 x 5) to detach the escutcheon.
4. Disconnect the harness from the connector (CN100) on the SW-1575 board.
5. Remove the three (b) precision screws (M2 x 4).
PMW-200/PMW-EX280
2-14
