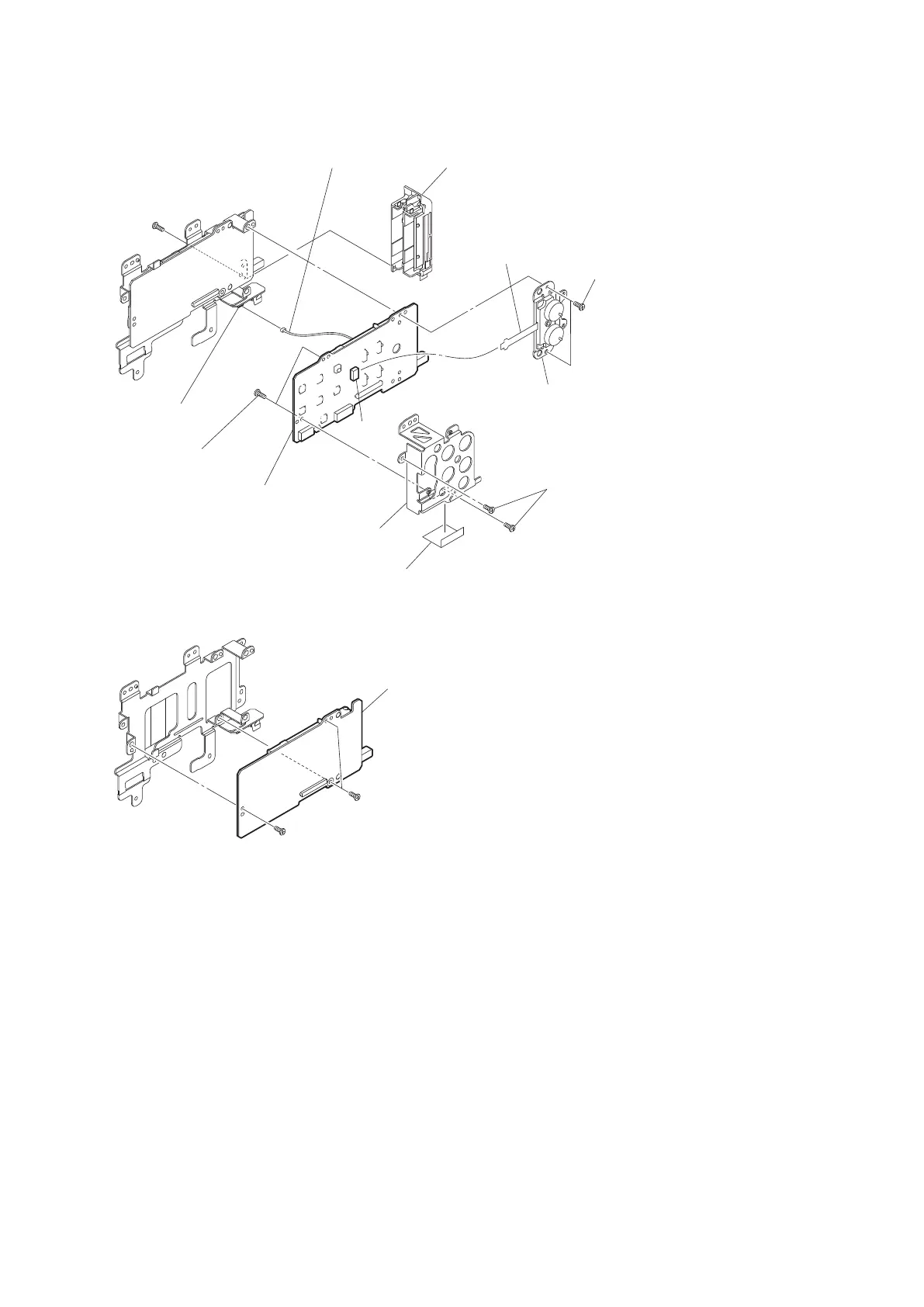

6. Remove the two (c) precision screws (M2 x 4) to detach the inside shield plate from the SWC-54 board.
EscutcheonHarness
Tapping screw
(2 x 5)
(a) Precision screws
(2 x 4)
(b) Precision screws
(2 x 4)
(c) Precision screws
(2 x 4)
SWC-54 board
CN100
(SW-1575 board)
Tape
Inside shield plate
CN102
AU hold plate
Flexible board
7. Remove the three precision screws (M2 x 4) to detach the EC-75 board.
Precision screws
(M2 x 4)
Precision screws
(M2 x 4)
EC-75 board
8. Install the removed parts by reversing steps of removal.
