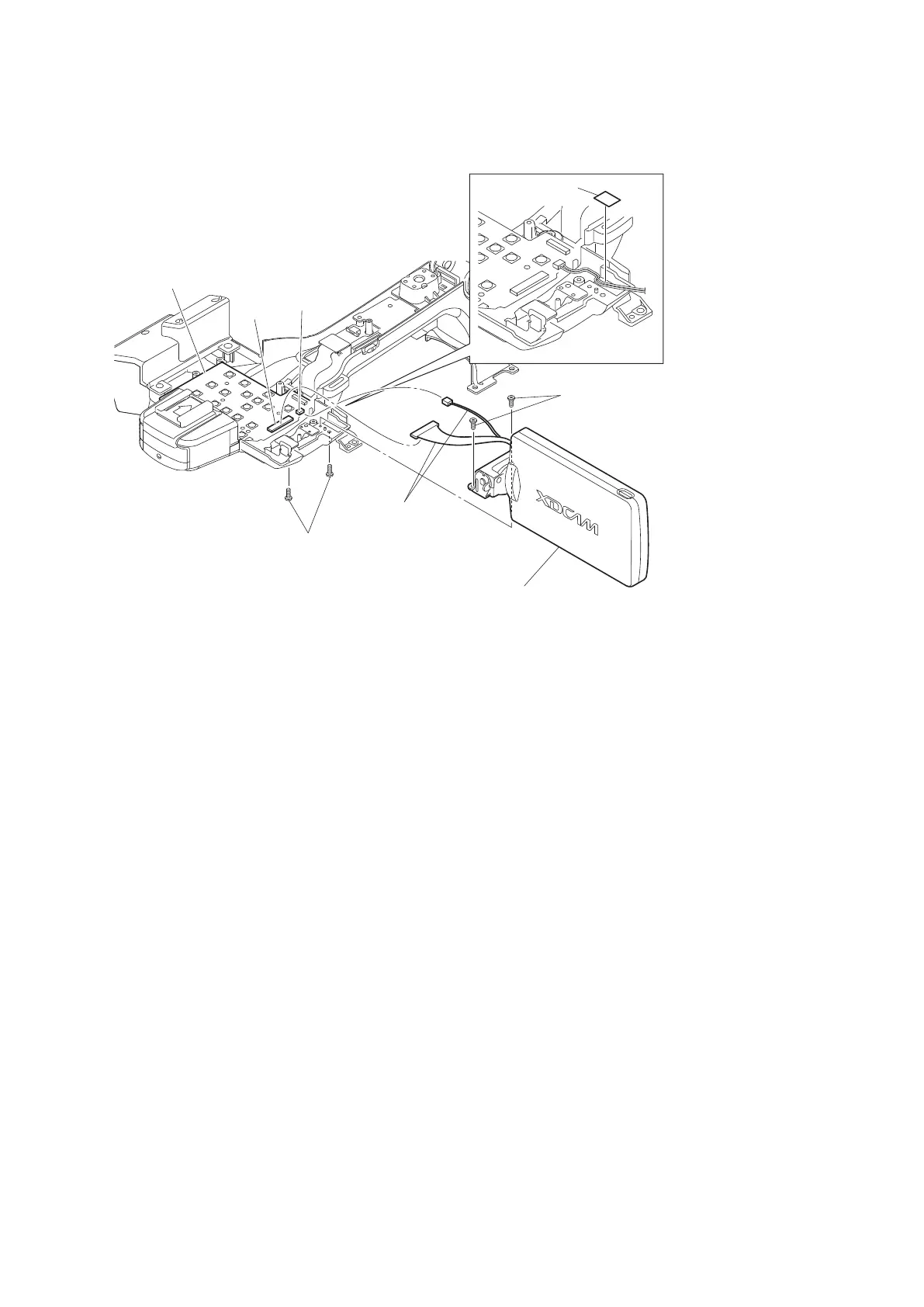

3. Remove the two precision screws (M2 x 4) and the two precision screws (M2.6 x 5) to detach the LCD
assembly.
Tape(BT)
CN402
KSW-62 board
LCD assembly
Harnesses
Precision screws
(M2.6 x 5)
Precision screws
(M2 x 4)
CN403
4. Install the removed parts by reversing steps of removal.
2-13-6. DET-55 Board
Preparation
1. Remove the handle (upper) case assembly. (Refer to “2-13-2. Control Switch Block (GZ92000)”.)
2. Remove the control panel assembly. (Refer to “2-13-3. MIC Unit”.)
3. Remove the LCD assembly. (Refer to “2-13-5. LCD Assembly”.)
Procedure
1. Remove the two precision screws (M2 x 5) and the two claws to detach the panel hinge cabinet T and the panel
hinge cabinet B.
2. Disconnect the harness from the connector CN100 on the DET-55 board.
PMW-200/PMW-EX280
2-29
