Sony PMW-EX280 - Bottom Cover and Tripod Washer

2-3. Bottom Cover and Tripod Washer
Preparation
1. Remove the battery lid. (Refer to “2-2. Lithium Battery”.)
Procedure

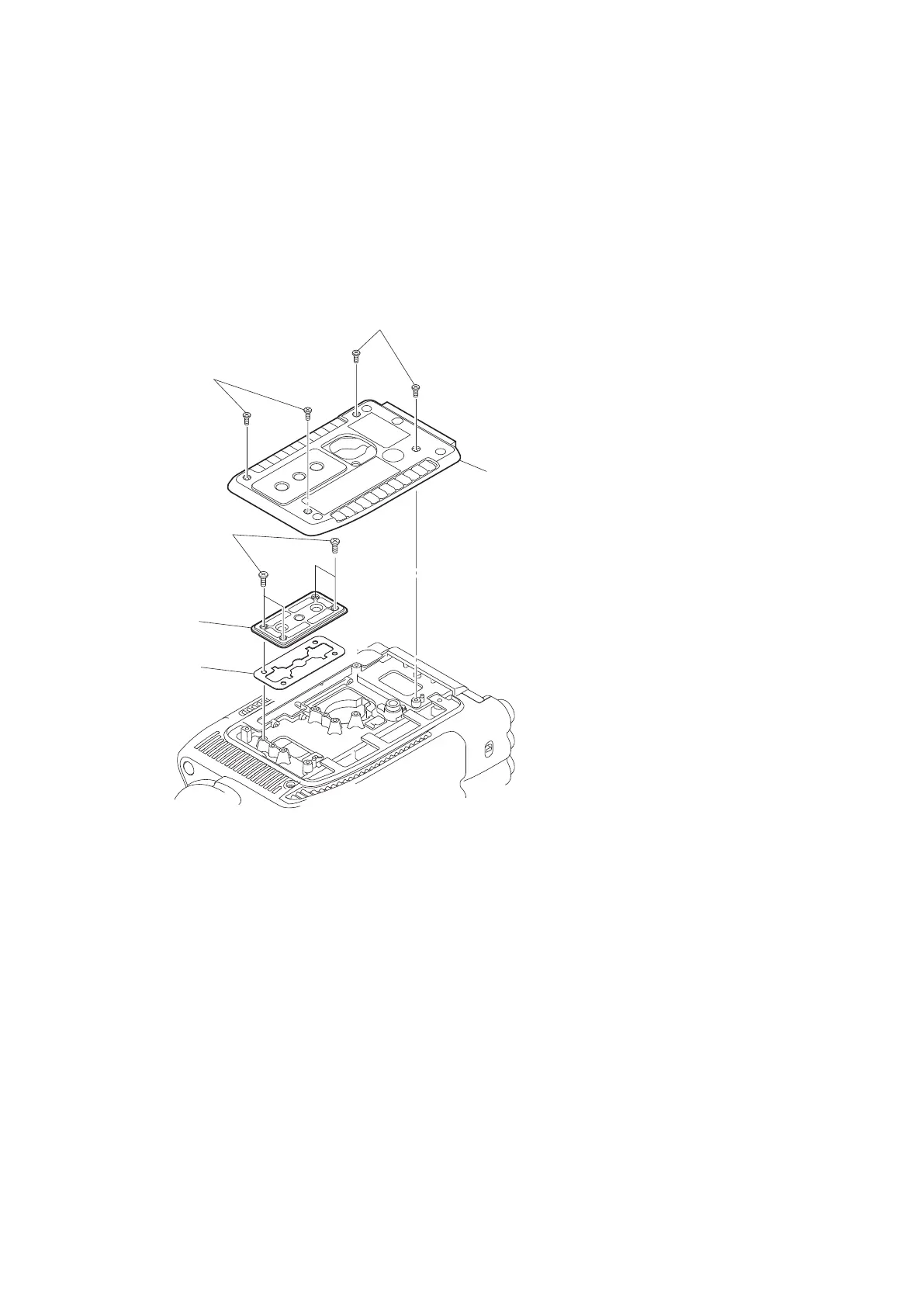

1. Remove the four precision screws (M2 x 5) to detach the bottom cover.
2. Remove the four precision screws (M2.6 x 5) to detach the bottom spacer and tripod washer.
Precisionscrews
(M2x5)
Precisionscrews
(M2x5)
Precisionscrews
(M2.6x5)
Tripodwasher
Bottomspacer
Bottomcover
3. Install the removed parts by reversing steps of removal.
PMW-200/PMW-EX280
2-3
