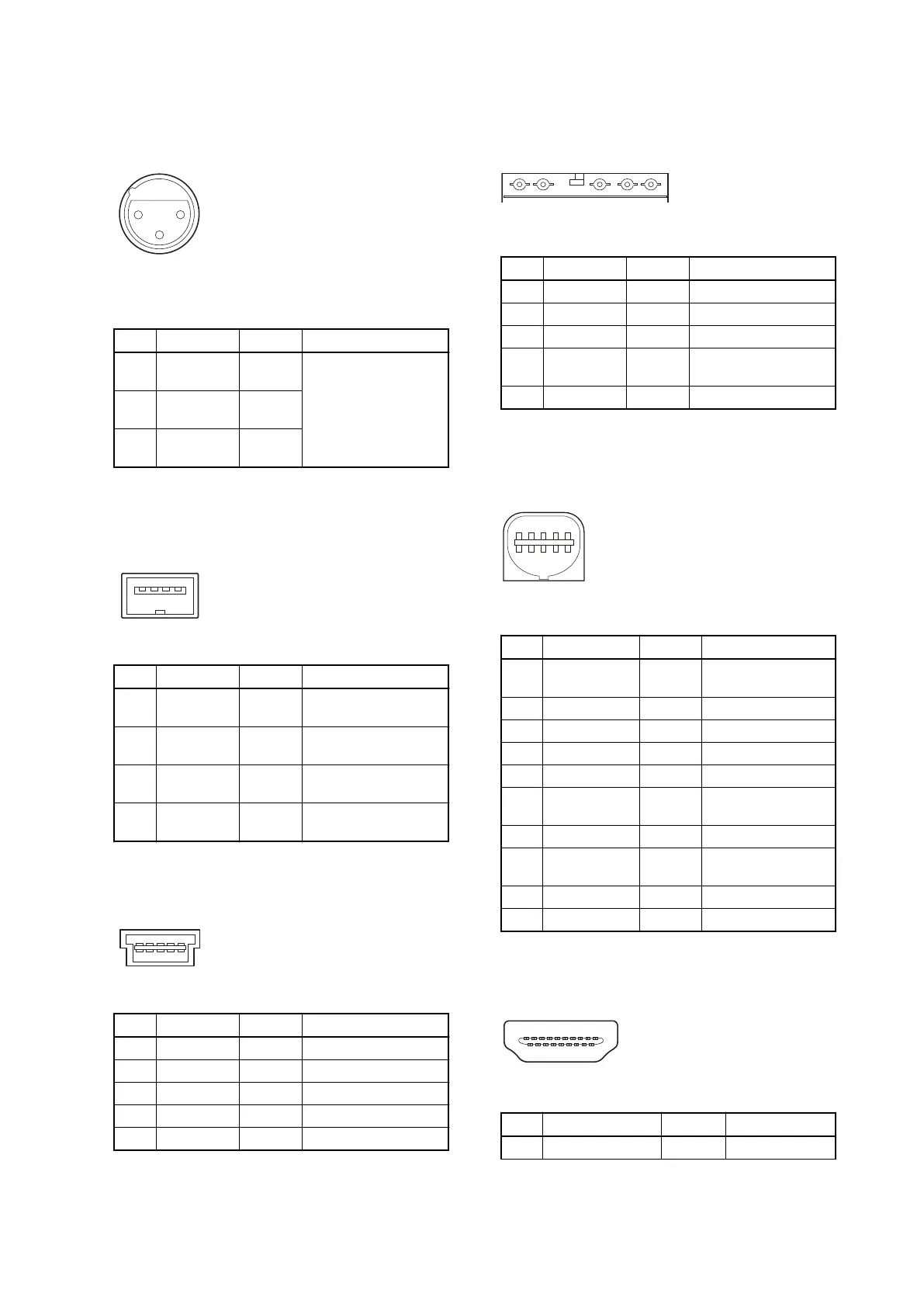

6. AUDIO IN CH-1, 2
1
2
3
- External View -
(0 dBu = 0.775 Vrms)
XLR 3-pin, Female
No. Signal I/O Specifications
1 MIC/LINE
(G)
— –65 dBu to –8 dBu
+4 dBu, selectable
High impedance, Bal-
anced
2 MIC/LINE
(H)
IN
3 MIC/LINE
(C)
IN
7. HDV/DV
i.LINK connector
14
- External View -
4-pin, IEEE1394, S400
No. Signal I/O Specifications
1 TPB– IN/OUT Strobe on receive, data on
transmit B (–)
2 TPB+ IN/OUT Strobe on receive, data on
transmit B (+)
3 TPA– IN/OUT Data on receive, strobe on
transmit A (–)
4 TPA+ IN/OUT Data on receive, strobe on
transmit A (+)
8. USB
15
- External View -
5-pin, mini-B, USB2.0 Hi-Speed
No. Signal I/O Specifications
1 VCC — USB Vcc
2 D– IN/OUT I/O USB–
3 D+ IN/OUT I/O USB+
4 ID — NC
5 GND — Ground
9. BATTERY
- External View -
5-pin, Male
12 3 45
No. Signal I/O Specifications
1 BATT (+) — +11 to +17 V dc
2 BAT SCL OUT —
3 BAT SDA IN/OUT —
4 BATT ID
DATA
IN —
5 BATT (–) — —
10. A/V OUT
Multi-connector
- External View -
10-Pin
1
2
9
10
No. Signal I/O Specifications
1 LINE MONI1 L
(A/V)
OUT LINE OUT (L)
2 LANC SIG — NC
3 S GND — GND
4 LANC DC — NC
5 S-C OUT NC
6 LINE MONI2 R
(A/V)
OUT LINE OUT (R)
7 AV SW IN —
8 VIDEO/
AUDIO GND
— GND
9 VIDEO OUT Composite OUT
10 S-Y OUT NC
11. HDMI
- External View -
19-pin, Type A
19 1
18 2
No. Signal I/O Specifications
1 TMDS DATA2+ OUT —
Continued
PMW-200/PMW-EX280
1-2
