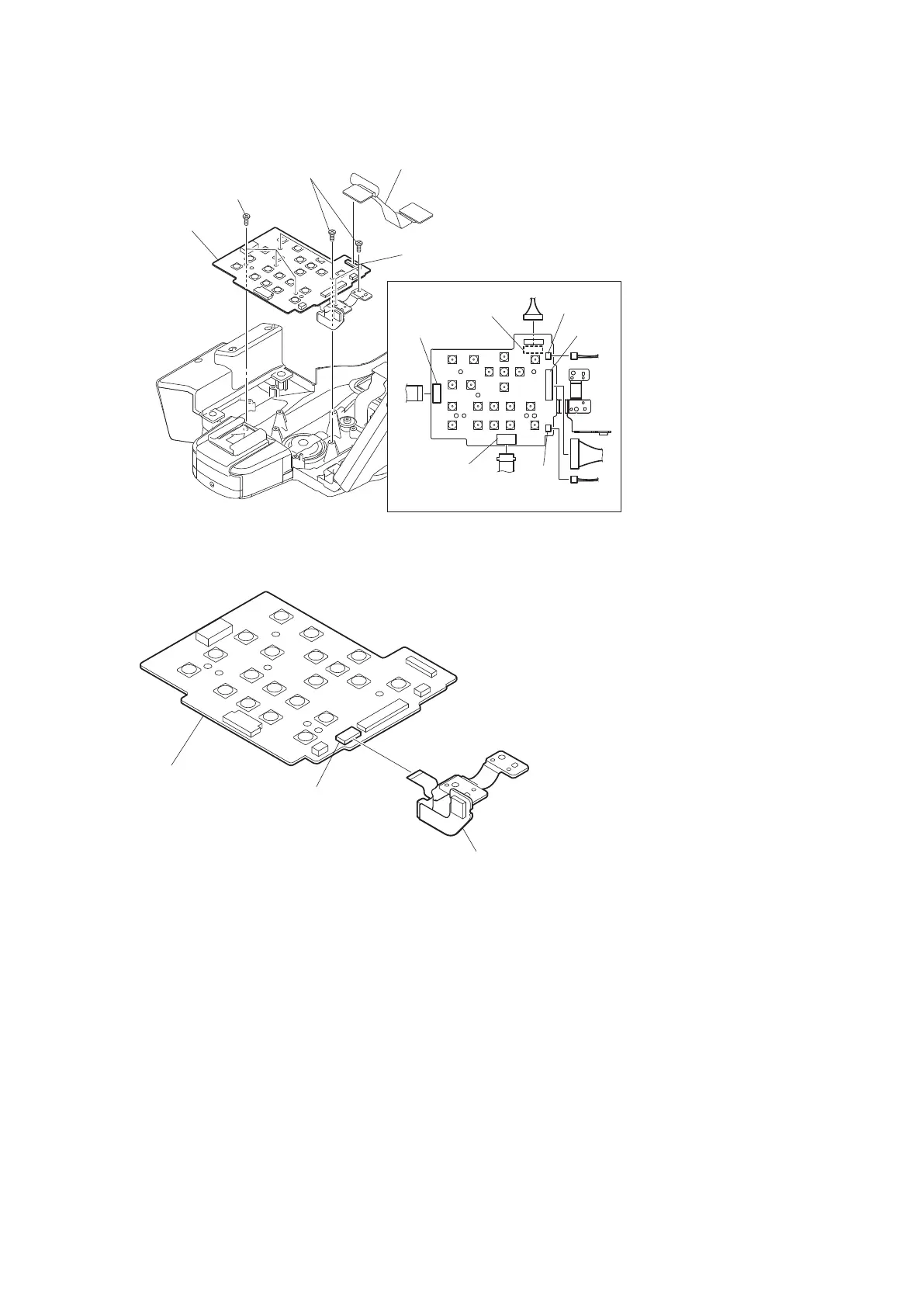

5. Disconnect the harness from the connector CN401 on the KSW-62 board and remove the KSW-62 board.
CN101
CN401
CN400
CN403
CN402
CN102
CN100
Precision screws (M2 x 4)
KSW-62 board
HN-403 board
Precision screws (M2 x 4)
6. Disconnect the KSW-61 board from the connector CN404 on the KSW-62 board.
KSW-61 board
CN404
KSW-62 board
7. Remove the two precision screws (M2 x 4) and the speaker retainer to detach the speaker.
PMW-200/PMW-EX280
2-36
