4. Remove the outside panel assembly. (Refer to “2-5-1. Outside Panel Assembly”.)
5. Remove the top panel assembly. (Refer to “2-6. Top Panel Assembly”.)
6. Remove the front panel assembly. (Refer to “2-8-1. Front Panel Assembly”.)

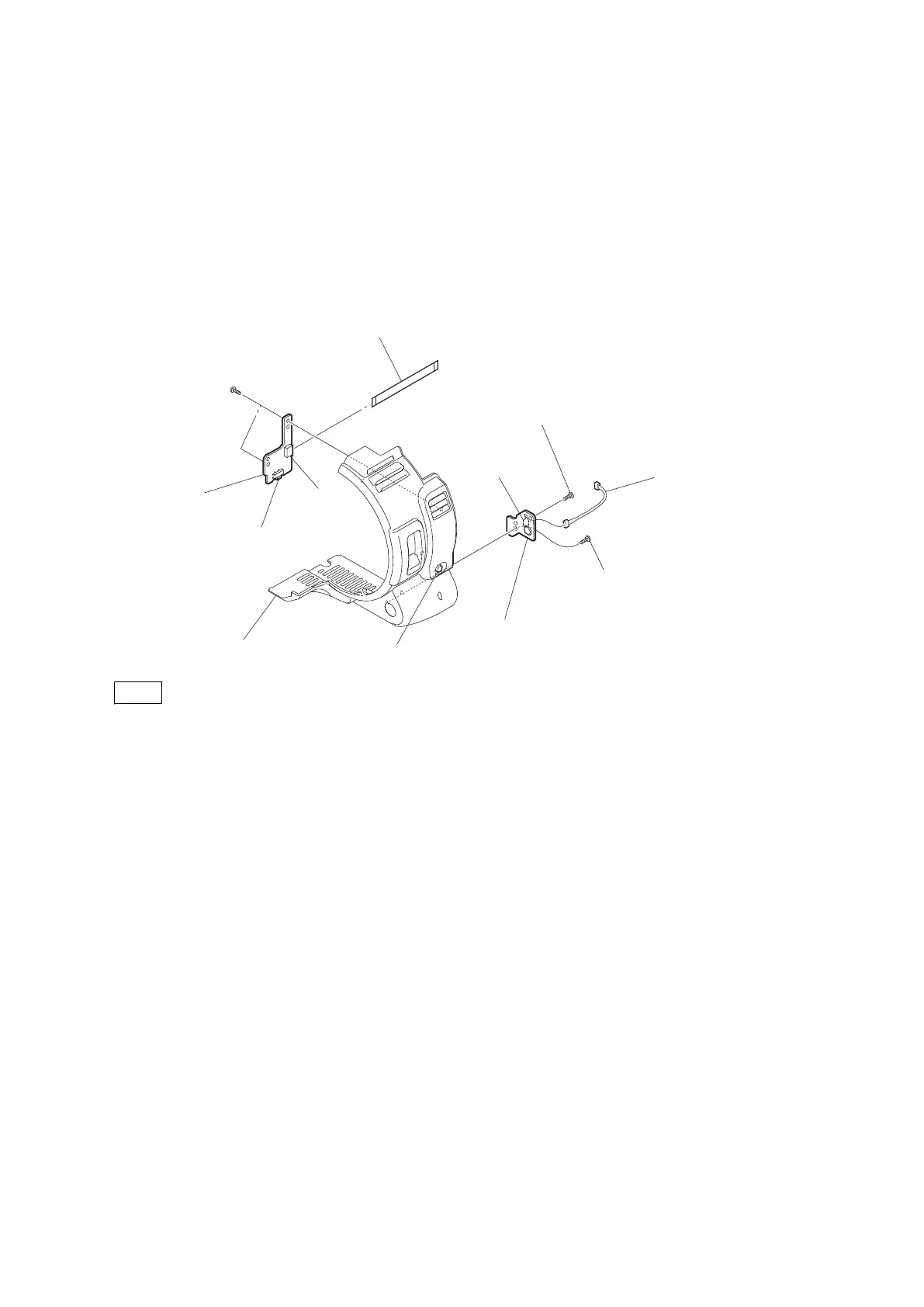

Procedure
1. Remove the two screws to detach the SW-1559 board.
2. Disconnect the harness from the connector CN104 on the SW-1559 board.
3. Remove the two screws to detach the SW-1573 board.
4. Disconnect the flexible flat cable from the connector CN100 on the SW-1573 board.
Tapping screws
(2 x 5)
Tapping screw
(2 x 5)
Tapping screw
(2 x 5)
SW-1559 board
Knob
Slide switch
CN100
Front panel assembly
Harness
Flexible flat cable
SW-1573 board
CN104
Note
Align the phase of the slide switch on the SW-1573 board and the knobs on the front panel assembly during
installation.
5. Install the removed parts by reversing steps of removal.
