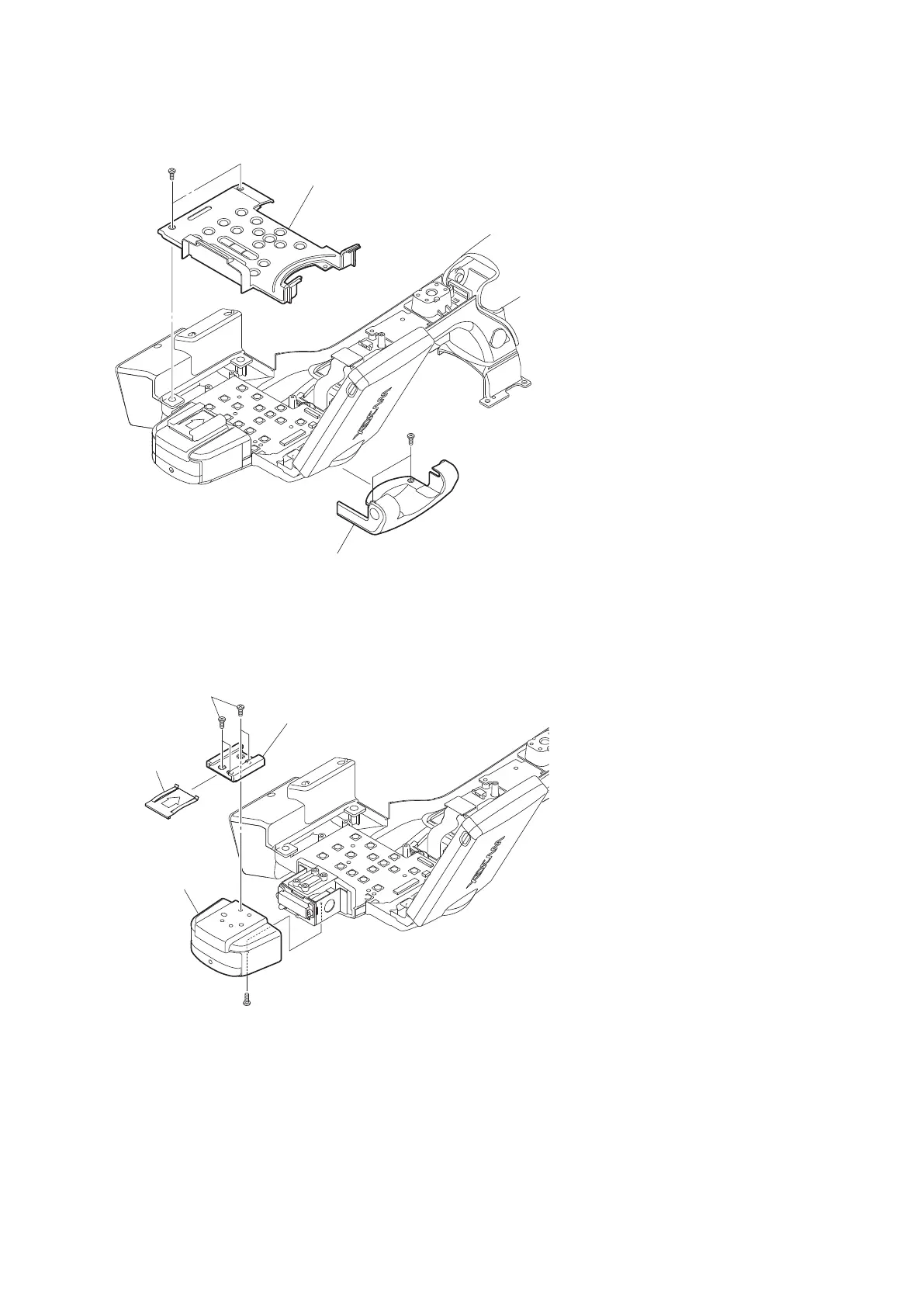

2. Remove the two precision screws (M2 x 5) to detach the control panel assembly.
Precision screws
(M2 x 5)
Precision screws
(M2 x 5)
Control panel assembly
Hinge (front) cover assembly
3. Remove the shoe spring.
4. Remove the four precision screws (M2 x 6) to detach the accessory shoe.
5. Remove the precision screw (M2 x 5) to detach the MIC cabinet assembly.
Precision screws
(M2 x 6)
Precision screw
(M2 x 5)
MIC cabinet assembly
Accessory shoe
Shoe spring
6. Disconnect the flexible board from the connector CN100 on the KSW-62 board.
7. Remove the precision screw (M2 x 4) to detach the FP-179 board.
8. Remove the two tapping screws (2 x 5) to detach the MIC case.
PMW-200/PMW-EX280
2-26
