Sony PMW-EX280 - Page 70

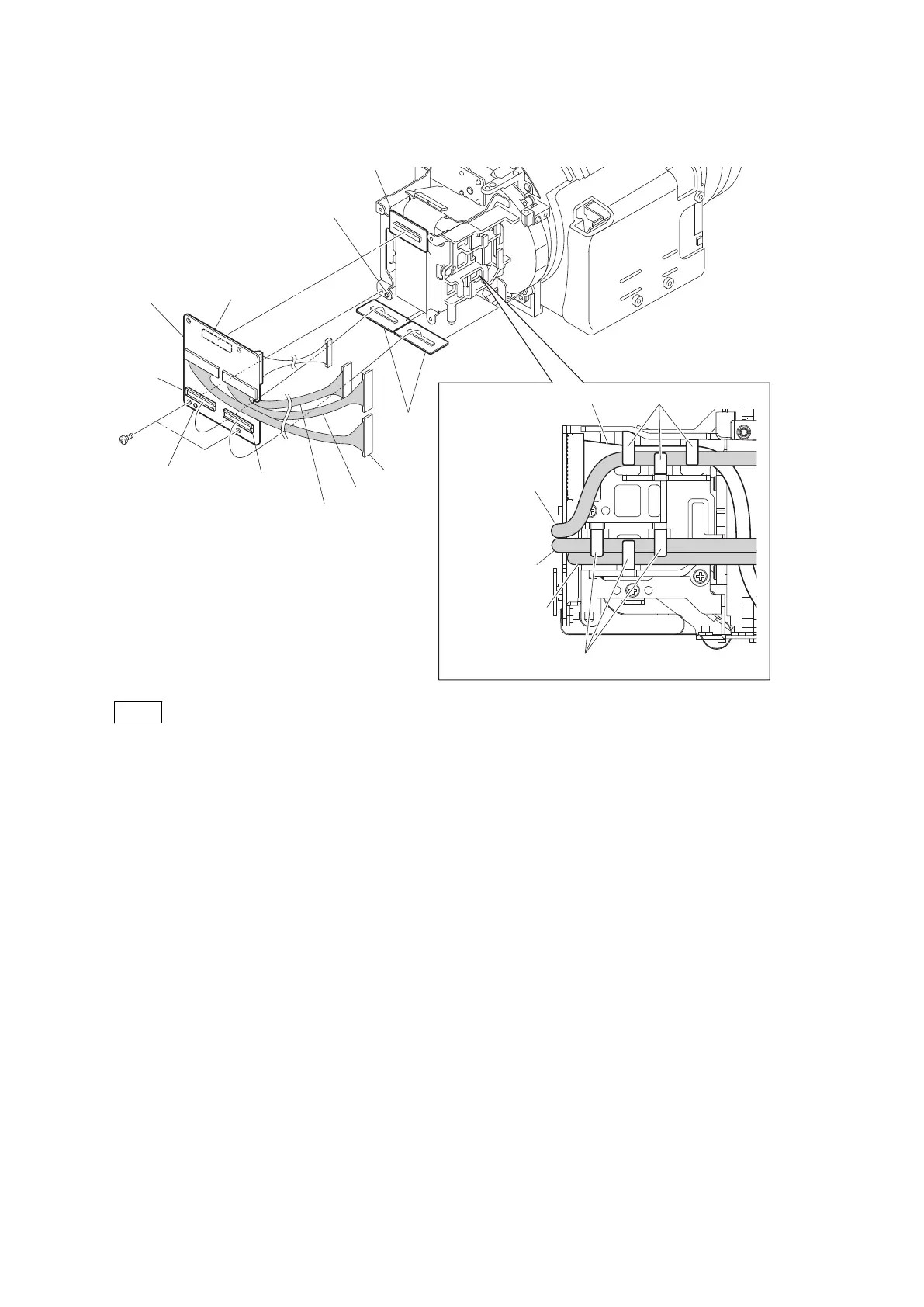

5. Disconnect the BI board from the connector CN300 on the HN-399 board and remove the HN-399 board.
P2 x 4
Fine-wire
coaxial cable (G)
Fine-wire
coaxial cable (R)
Fine-wire
coaxial cable (B)
Harness Claws
Claws
HN-399 board
Boss
Hole
BI board
CN100
CN300
CN200
(B)
(G)
(R)
BI board
Note
When installing the HN-399 board, fit the boss with the hole.
6. Disconnect the harness from the connector CN102 on the HN-399 board.
PMW-200/PMW-EX280
2-40
