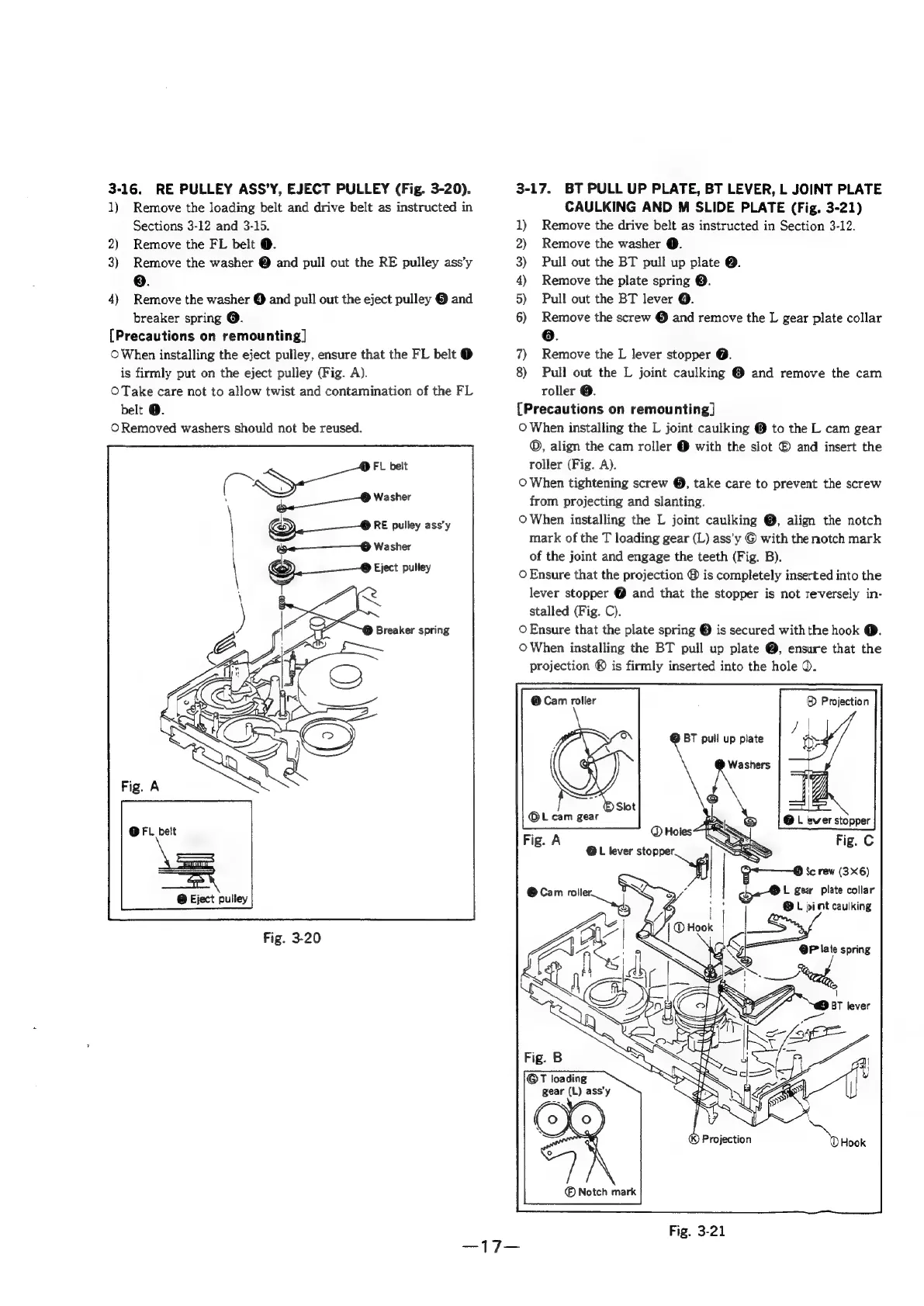

3-16. RE PULLEY ASS’Y, EJECT PULLEY (Fig. 3-20).
1) Remove the loading belt and drive belt as instructed in
Sections 3-12 and 3-15.
2) Remove the FL belt @.
3) Remove the washer @ and pull out the RE pulley ass’y
98.
4) Remove the washer @ and pull out the eject pulley @ and
breaker spring ©.
{Precautions on remounting]
© When installing the eject pulley, ensure that the FL belt @
is firmly put on the eject pulley (Fig. A).
© Take care not to allow twist and contamination of the FL
belt @.
© Removed washers should not be reused.
- = —__® Washer
RE pulley ass’y
6-9 Washer
Eject pulley
@FL belt
aR
@ Eject pulley
Fig. 3-20
3-17. BT PULL UP PLATE, BT LEVER, L JOINT PLATE
CAULKING AND M SLIDE PLATE (Fig, 3-21)
1) Remove the drive belt as instructed in Section 3-12.
2) Remove the washer @.
3) Pull out the BT pull up plate @.
4) Remove the plate spring ©.
5) Pull out the BT lever @.
6) Remove the screw @ and remove the L gear plate collar
6.
7) Remove the L lever stopper @.
8) Pull out the L joint caulking @ and remove the cam
roller ©.
[Precautions on remounting]
O When installing the L joint caulking @ to the L cam gear
®, align the cam roller @ with the slot ® and insert the
roller (Fig. A).
O When tightening screw @, take care to prevent the screw
from projecting and slanting.
O When installing the L joint caulking @, align the notch
mark of the T loading gear (L) ass’y © with the notch mark
of the joint and engage the teeth (Fig. B).
O Ensure that the projection @ is completely inserted into the
lever stopper @ and that the stopper is not teversely in-
stalled (Fig. C).
© Ensure that the plate spring @ is secured withthe hook @.
© When installing the BT pull up plate @, ensure that the
projection ® is firmly inserted into the hole @.
© Cam roller
® Projection
@L cam gear
Fig.
A
IS
Fig.
.
@
L
lever
stopper.
SEO
g.C
fi gE" _® Sc rew (3X6)
©
Cam
roller.
v
a
@
gex
plate
collar
KR 3
es OL pint caulking
Ss
@P late spring
3 a
© Notch mark
Fig. 3-21
