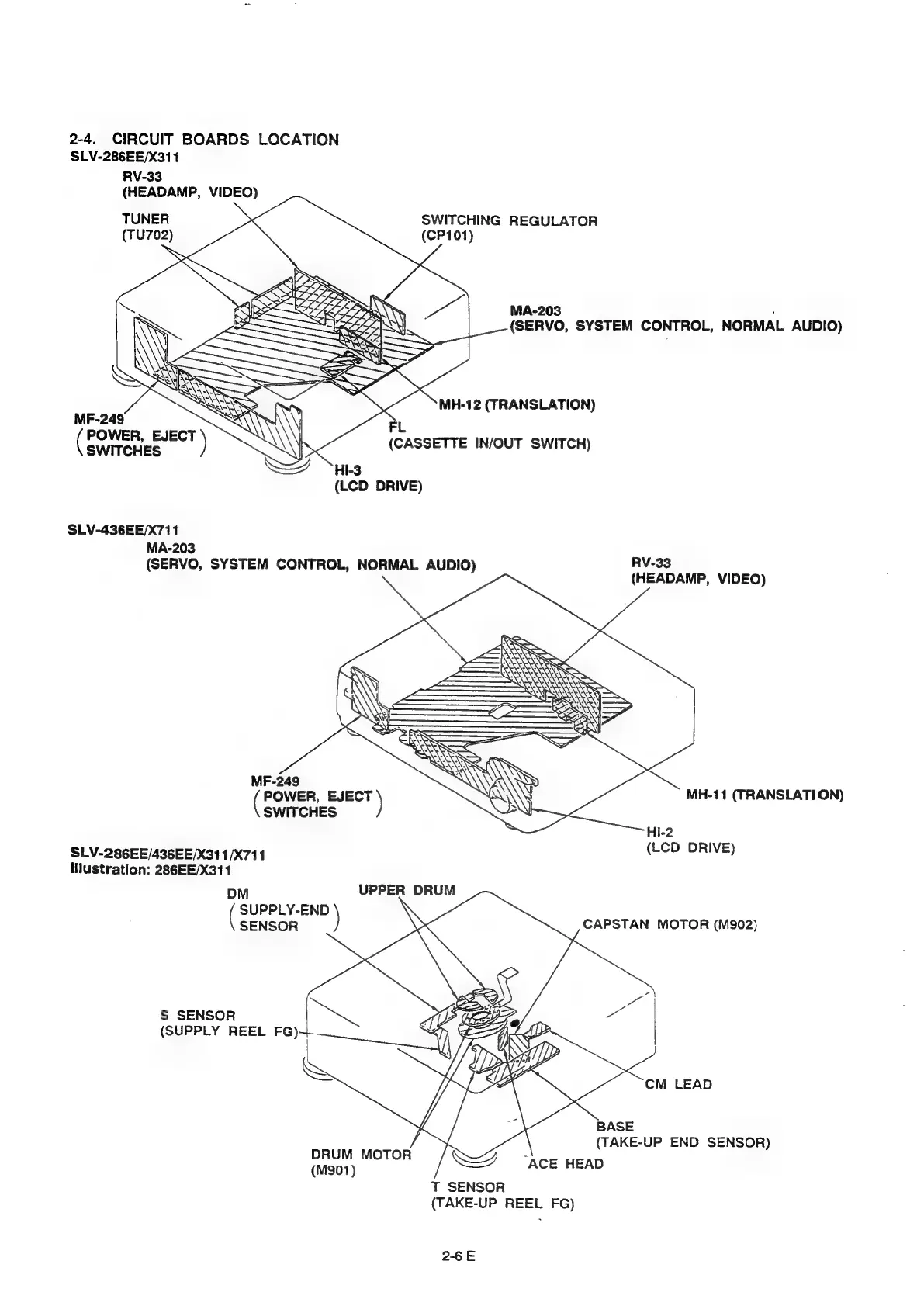

2-4. CIRCUIT BOARDS LOCATION
SLV-286EE/X311
RV-33
(HEADAMP, VIDEO)
TUNER SWITCHING REGULATOR
(TU702) (CP101)
MA-203 .
(SERVO, SYSTEM CONTROL, NORMAL AUDIO)
MH-12 (TRANSLATION)
MF-249
PL
Ceoeetee
(CASSETTE
IN/OUT
SWITCH)
SS
“urs
(LCD
DRIVE)
SLV-436EE/X711
MA-203
(SERVO,
SYSTEM
CONTROL,
NORMAL
AUDIO)
we
(HEADAMP, VIDEO)
MF-249
( POWER, EJECT )
SWITCHES
MH-11 (TRANSLATION)
HI-2
SLV-286EE/436EE/X311/X711
eee
iustration: 286EE/X311
DM UPPER DRUM
( SUPPLY-END )
SENSOR
CAPSTAN MOTOR (M302)
S SENSOR
(SUPPLY REEL FG)~
DRUM MOTOR
(Mg01)
T SENSOR
(TAKE-UP REEL FG)
2-6E
