2-5. SERVICE TOOLS AND JIGS
Ref. No.
Reel disc height jig
SS SS
~ wile
NTSC Hi-Fi alignment tape
PAL Hi-Fi alignment tape
j-8 Cleaning fluid
J-9
J-10
Chamois cloth
Head degausser
Smal] adjustment mirror (with handle)
Small adjustment mirror (mirror only)
H-7099-038-H
j-5 0.93mm Allen wrench H-7099-202-H
36 NTSC torque cassette VHT-063S J-6082-011-A
PAL torque cassette VHT-066S J-6082-066-A
NTSC torque cassette VHT-404S J-6082-012-A
PAL torque cassette VHT-404S J-6082-067-A
ye NTSC alignment tape JVC-MH-1 H-7099-046-H
PAL alignment tape JVC-MH-2 H-7099-052-H
H-7099-153-H
H-7099-175-H
Y-2031-001-0
2-034-697-00
Widely available
J-6080-029-A
J-6080-030-1
SL-5052

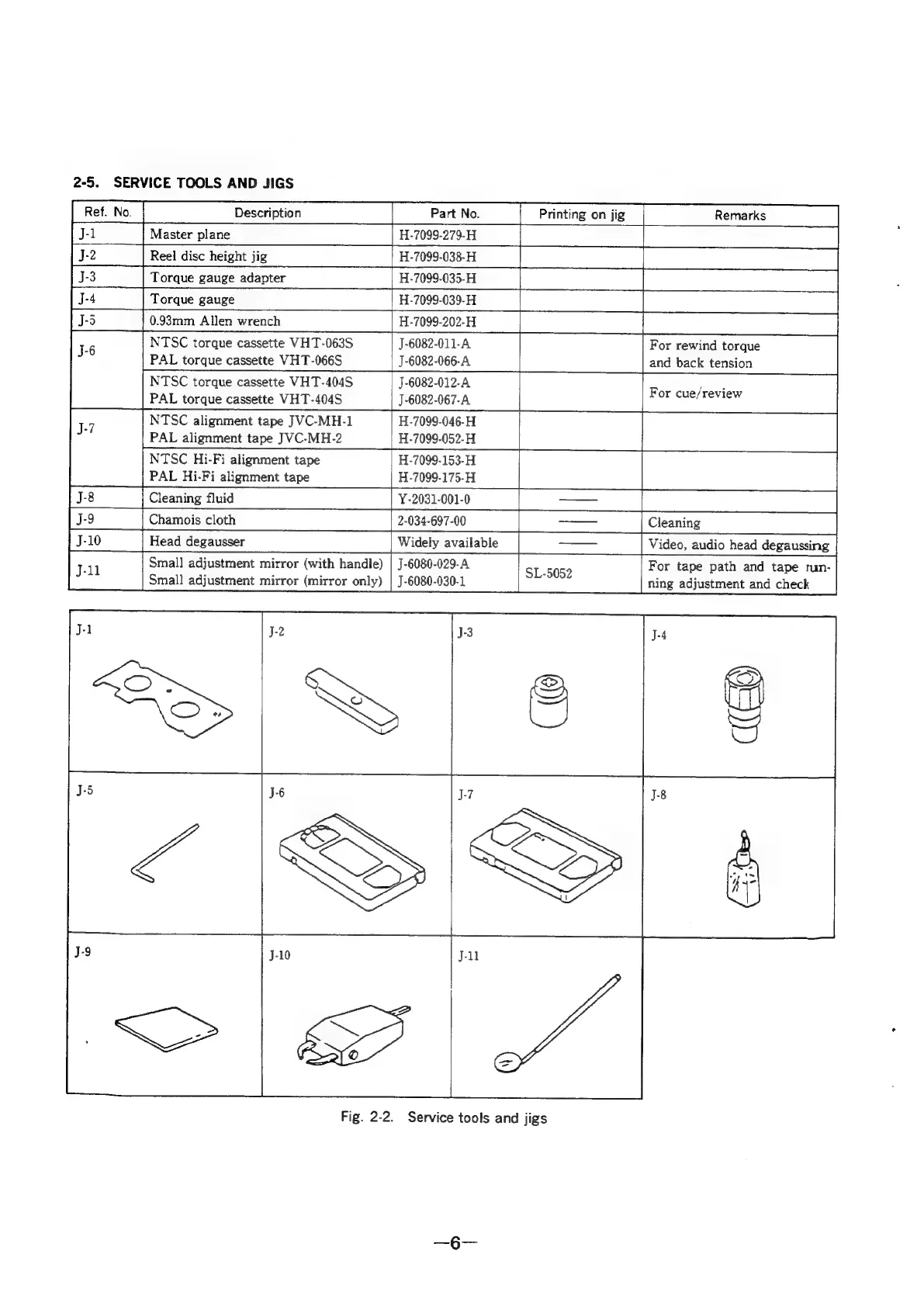

Fig. 2-2. Service tools and jigs
Description
Part
No
Printing
on
jig
Remarks
3 Torque gauge adapter H-7099-035-H
Torque gauge H-7099-039-H
For rewind torque
and back tension
For cue/review
Cleaning
Video, audio head degaussing
For tape path and tape run-
ning adjustment and check
