Sony SLV-286EE - Chassis Assembly

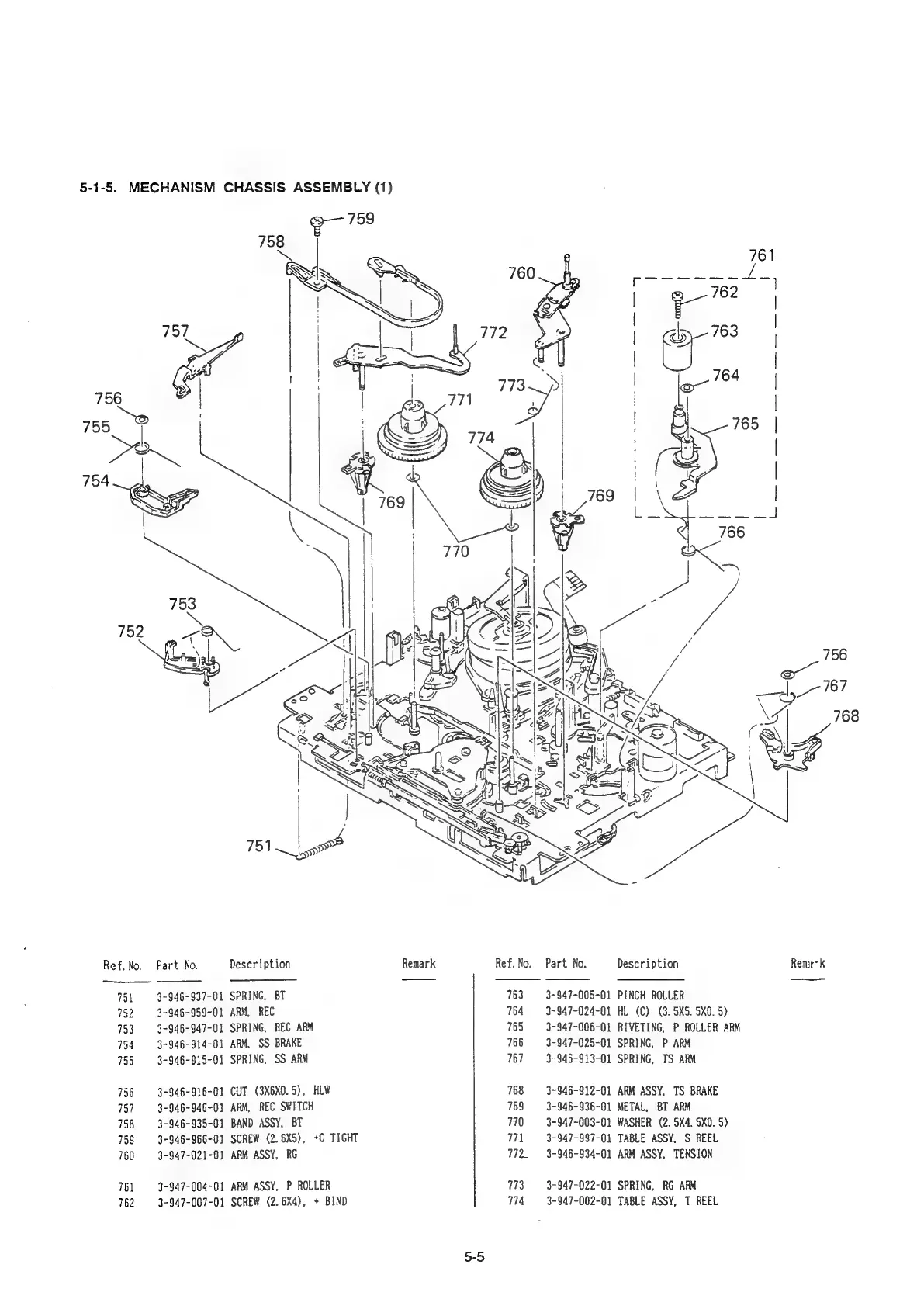

5-1-5. MECHANISM CHASSIS ASSEMBLY (1)
Ref. No
731
732
753
734
735
736
737
738
759
760
761
762
Part No.
3-946-937-01
3-946-959-01
3-946-947-01
3-946-914-01
3-946-915-01
3-946-916-01
3-946-946-01
3-946-935-01
3-946-966-01
3-947-021-01
3-947-004-01
3-947-007-01
Description Remark
SPRING, BT
ARM, REC
SPRING, REC ARM
ARM, SS BRAKE
SPRING, SS ARM
CUT (3X6X0.5), HLW
ARM, REC SWITCH
BAND ASSY, BT
SCREW (2. 6X5), *C TIGHT
ARM ASSY, RG
ARM ASSY, P ROLLER
SCREW (2. 6X4), + BIND
5-5
Ref. No.
763
764
765
766
767
768
769
770
771
772_
173
774
Part No.
3-947-005-01
3-947-024-01
3-947-006-01
3-947-025-01
3-946-913-01
3-9$46-912-01
3-946-936-01
3-947-003-01
3-947-987-01
3-946-934-01
3-$47-022-01
3-947-002-01
Remark
Description
PINCH ROLLER
HL (C) (3. 5X5. 5X0. 5)
RIVETING, P ROLLER ARM
SPRING, P ARM
SPRING, TS ARM
ARM ASSY, TS BRAKE
METAL, BT ARM
WASHER (2. 5X4. 5X0. 5)
TABLE ASSY, S REEL
ARM ASSY, TENSION
SPRING, RG ARM
TABLE ASSY, T REEL
