Sony SLV-286EE - T Loading Gear (L, R) Assy

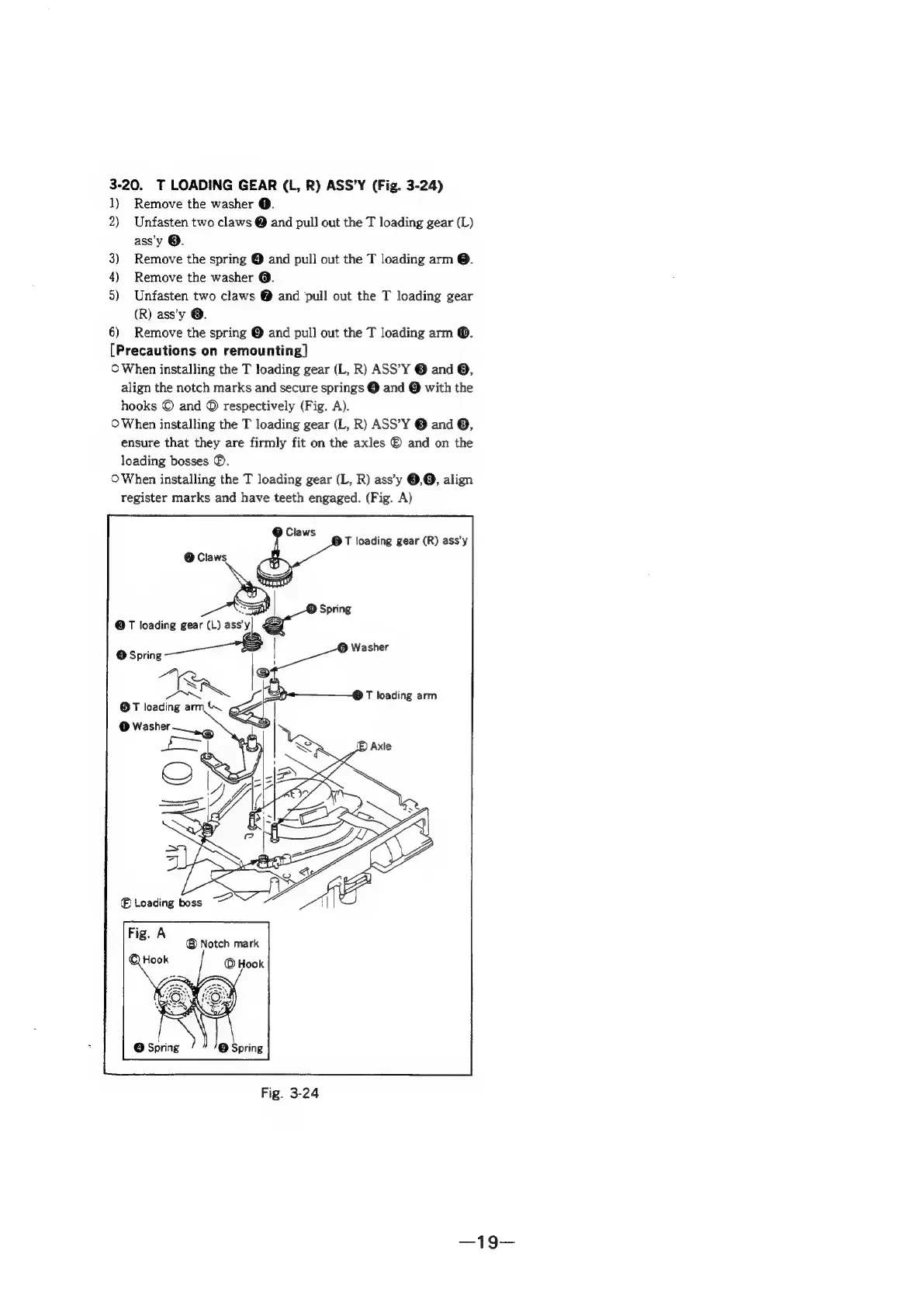

3-20. T LOADING GEAR (L, R) ASS’Y (Fig. 3-24)
1) Remove the washer @.
2) Unfasten two claws @ and pull out the T loading gear (L)
ass'y @.
3) Remove the spring @ and pull out the T loading arm ©.
4) Remove the washer @.
5) Unfasten two claws @ and pull out the T loading gear
(R) ass’y @.
6) Remove the spring © and pull out the T loading arm ©.
[Precautions on remounting]
© When installing the T loading gear (L, R) ASS’Y © and @,
align the notch marks and secure springs @ and @ with the
hooks © and © respectively (Fig. A).
O When installing the T loading gear (L, R) ASS’Y © and ©,
ensure that they are firmly fit on the axles ® and on the
loading bosses ®.
© When installing the T loading gear (L, R) ass’y ©,@, align
register marks and have teeth engaged. (Fig. A)
@T loading gear (L) ass'y
@ Spring
Plast ® Notch mark
