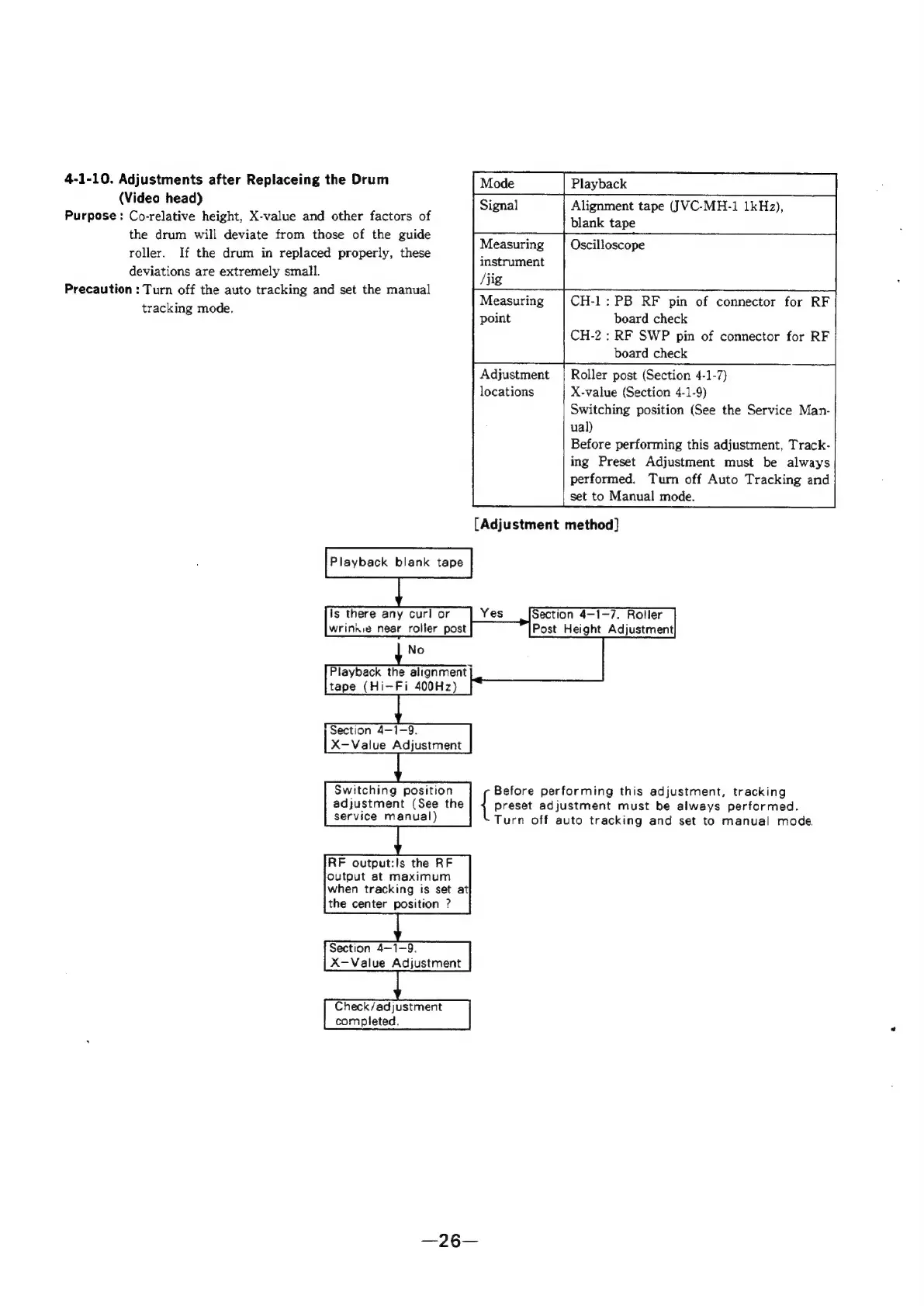

4-1-10.
Adjustments
after
Replaceing
the
Drum
(Video
head)
Purpose:
Co-relative
height,
X-value
and
other
factors
of
the
drum
will
deviate
from
those
of
the
guide
roller.
If
the
drum
in
replaced
properly,
these
deviations
are
extremely
small.
Precaution
:
Turn
off
the
auto
tracking
and
set
the
manual
tracking
mode.
=
Measuring
instrument
/jig
Measuring
point
Adjustment
locations
Alignment
tape
(JVC-MH-1
1kHz),
blank
tape
Oscilloscope
CH-1:
PB
RF
pin
of
connector
for
RF
board
check
CH-2:
RF
SWP
pin
of
connector
for
RF
board
check
Roller
post
(Section
4-1-7)
X-value
(Section
4-1-9)
Switching
position
(See
the
Service
Man-
ual)
Before
performing
this
adjustment,
Track-
ing
Preset
Adjustment
must
be
always
performed.
Turn
off
Auto
Tracking
and
set
to
Manual
mode.
[Adjustment
method]
Playback
blank
tape
Is
there
any
curl
or
wrinkie
near
roller
post
No
Playback
the
alignment]
tape
(Hi-Fi
400Hz)
Section
4-1-9.
X-Value
Adjustment
Switching
position
adjustment
(See
the
service
manual)
RF
output:ls
the
RF
Output
at
maximum
when
tracking
is
set
at
the
center
position
?
Section
4-1-9.
X-Value
Adjustment
Check/adjustment
completed.
Section
4-1-7.
Roller
Post
Height
Adjustment
Before
performing
this
adjustment,
tracking
preset
adjustment
must
be
always
performed.
Turn
off
auto
tracking
and
set
to
manual
mode.
{
