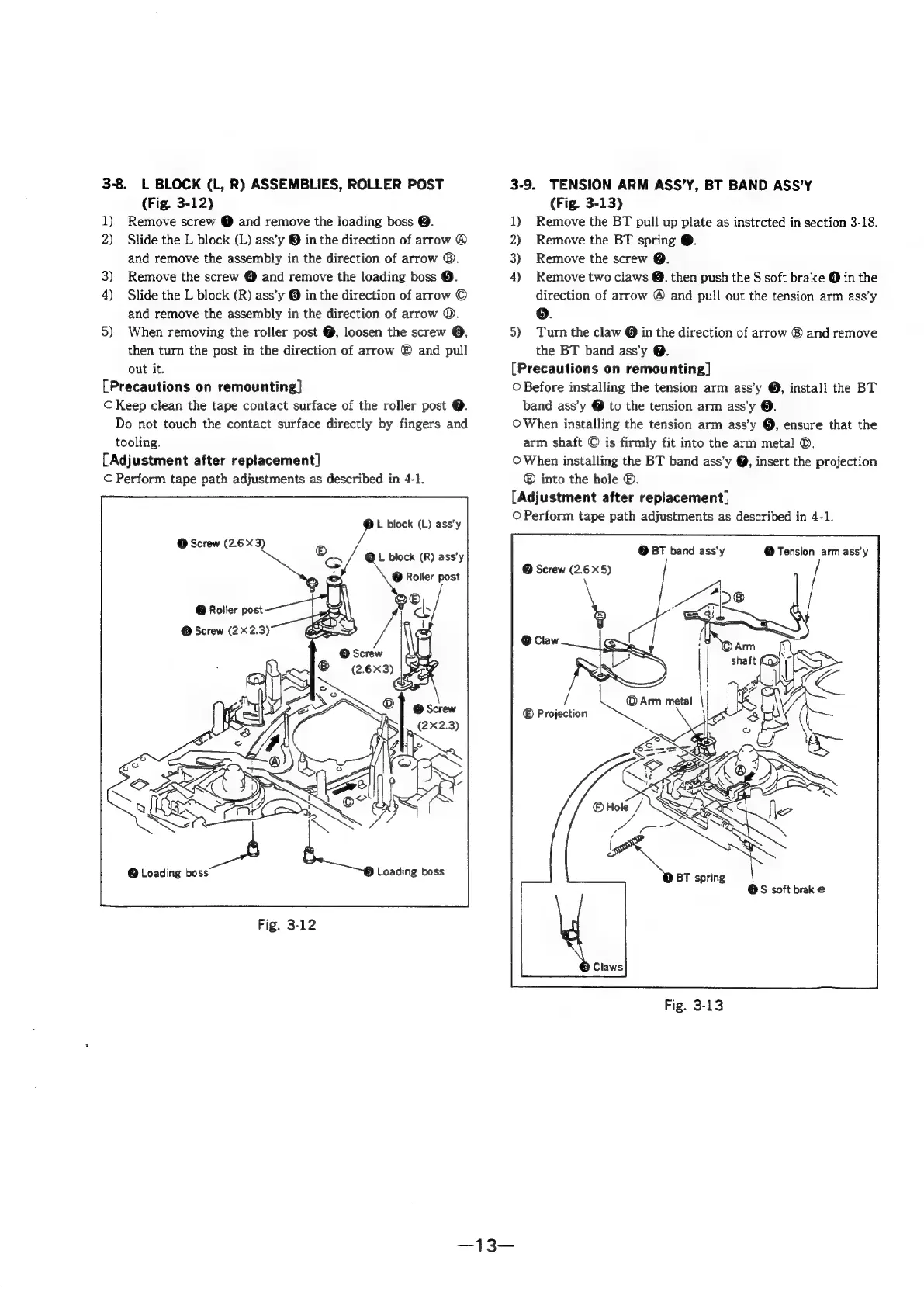

3-8. L BLOCK (L, R) ASSEMBLIES, ROLLER POST
(Fig. 3-12)
1) Remove screw @ and remove the loading boss @.
2) Slide the L block (L) ass’y @ in the direction of arrow ®
and remove the assembly in the direction of arrow ®.
3) Remove the screw @ and remove the loading boss ©.
4) Slide the L block (R) ass’y @ in the direction of arrow ©
and remove the assembly in the direction of arrow D.
5) When removing the roller post @, loosen the screw ©,
then turn the post in the direction of arrow © and pull
out it.
[Precautions on remounting]
© Keep clean the tape contact surface of the roller post @.
Do not touch the contact surface directly by fingers and
tooling.
[Adjustment after replacement]
© Perform tape path adjustments as described in 4-1.
L block (L) ass’y
@ Screw (2.6 x 3) ©
cD L block (R) ass’y
al @ Roller post
© Screw
® (2.6x3)
® @ Screw
[S _ (22.3)
(Gilg
(QD
*
@ Loading boss Loading boss
Fig. 3-12
3-9. TENSION ARM ASS’Y, BT BAND ASS’Y
(Fig. 3-13)
1) Remove the BT pull up plate as instrcted in section 3-18.
2) Remove the BT spring @.
3) Remove the screw @.
4) Remove two claws @, then push the S soft brake @ in the
direction of arrow @ and pull out the tension arm ass’y
98.
5) Turn the claw @ in the direction of arrow ® and remove
the BT band ass’y @.
(Precautions on remounting]
© Before installing the tension arm ass’y @, install the BT
band ass’y @ to the tension arm ass’y @.
© When installing the tension arm ass’y @, ensure that the
arm shaft © is firmly fit into the arm metal O.
© When installing the BT band ass’y @, insert the projection
© into the hole ®.
[Adjustment after replacement]
© Perform tape path adjustments as described in 4-1.
@ BT band ass’y @ Tension arm ass'y
@ Screw (2.65)
\
\ ,
@ Claw
® Arm metal
© Projection
y Ri
a
BT spring
@S soft brak €
Fig. 3-13
