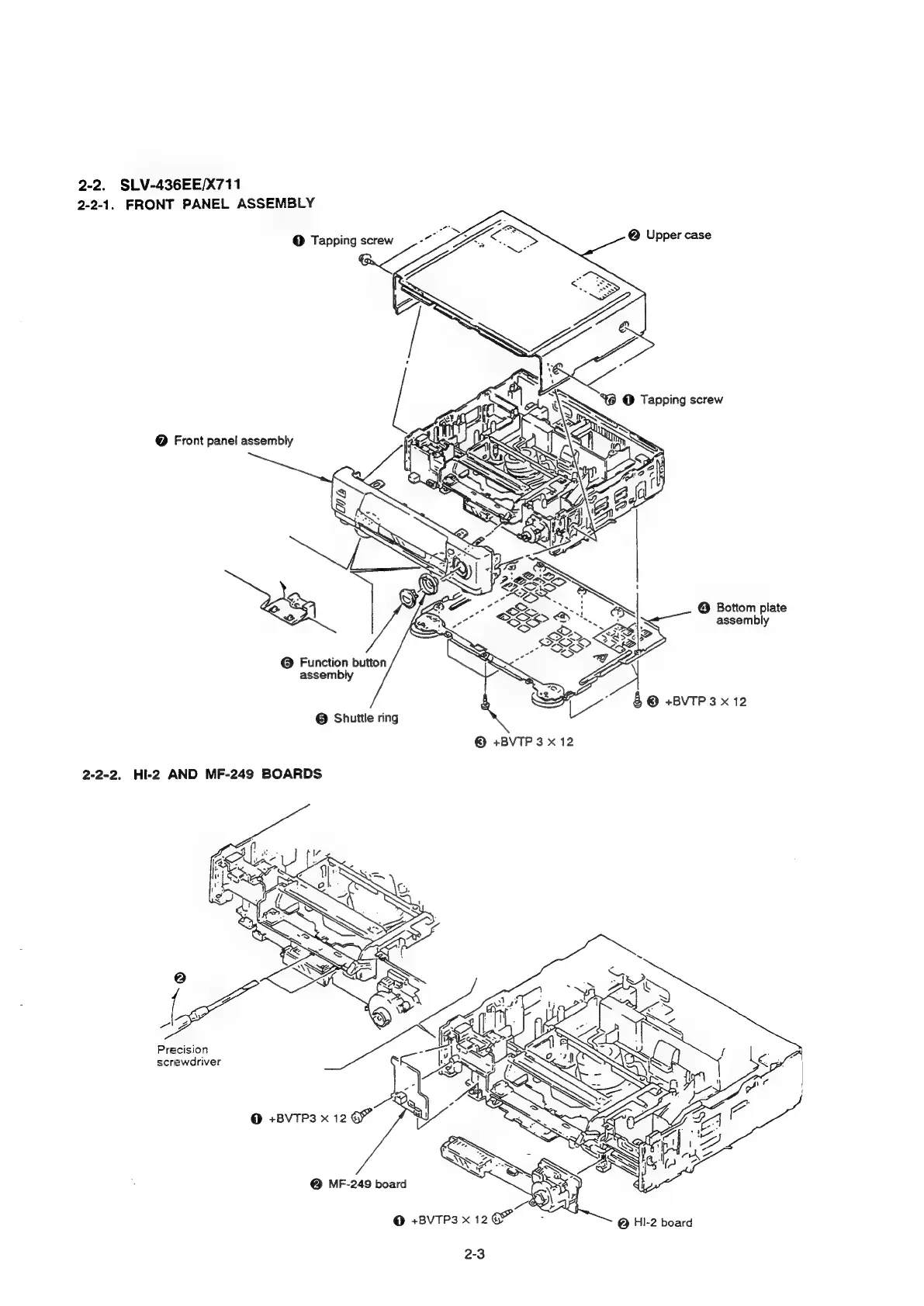

2-2. SLV-436EE/X711
FRONT PANEL ASSEMBLY
2-2-1.
@ Upper case
© Tapping screw
8 O Tapping screw
@ Front panel assembly
@ Bottom plate
assembly
© Function button
assembly
© +BVTP3 x 12
@ Shuttle ring
© +BVTP 3 x 12
2-2-2. HI-2 AND MF-249 BOARDS
i= 2
a ray o & oO
.
o 2
=
ae) 2
o - oO n
@ MF-249 board
© +BVTP3 x 12 &
@ HI-2 board
@ +BVTP3 x 126”
