Sony SLV-286EE - Page 21

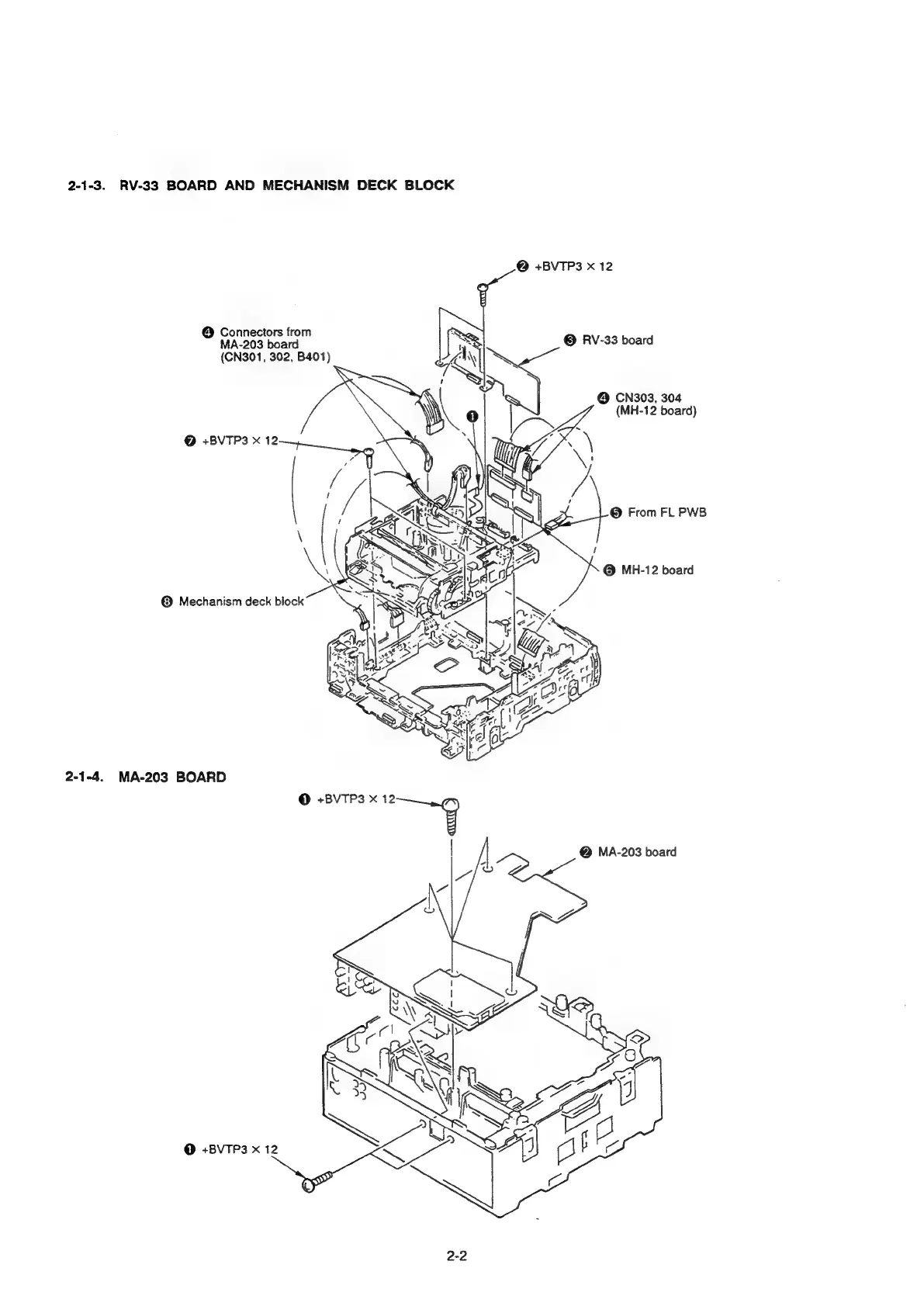

2-1-3. RV-33 BOARD AND MECHANISM DECK BLOCK
@ +BVTP3 x 12
@ Connectors from
MA-203 board
(CN301, 302, B401)
© RV-33 board
@ CN303, 304
(MH-12 board)
@® Mechanism deck biock
2-1-4. MA-203 BOARD
@ MA-203 board
>
@
+BVTP3
x
oS
2-2
