Sony SLV-286EE - RG Post Tilt Adjustment; Regulation Direction Check

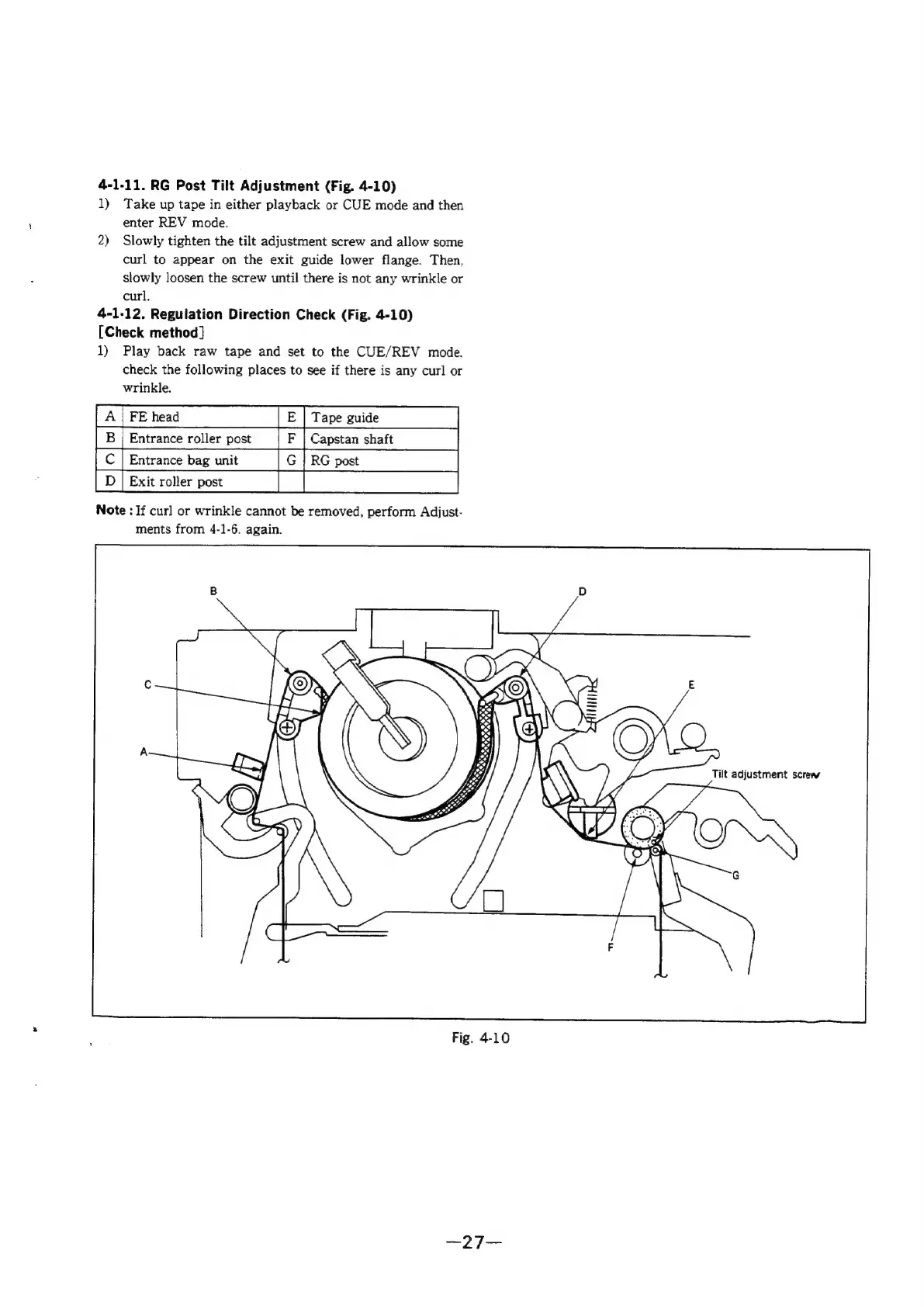

4-1-11. RG Post Tilt Adjustment (Fig. 4-10)
1) Take up tape in either playback or CUE mode and then
enter REV mode.
2) Slowly tighten the tilt adjustment screw and allow some
curl to appear on the exit guide lower flange. Then,
slowly loosen the screw until there is not any wrinkle or
curl.
4-1-12. Regulation Direction Check (Fig. 4-10)
[Check method]
1) Play back raw tape and set to the CUE/REV mode.
check the following places to see if there is any curl or
wrinkle.
-B | Entrance roller post | F | Capstan shaft
PD [exieroter po |_|
Note : If curl or wrinkle cannot be removed, perform Adjust-
ments from 4-1-6. again.
7400-028. OO
2
OOO
by
Se,
:
Fig. 4-10
ilt adjustment screw
