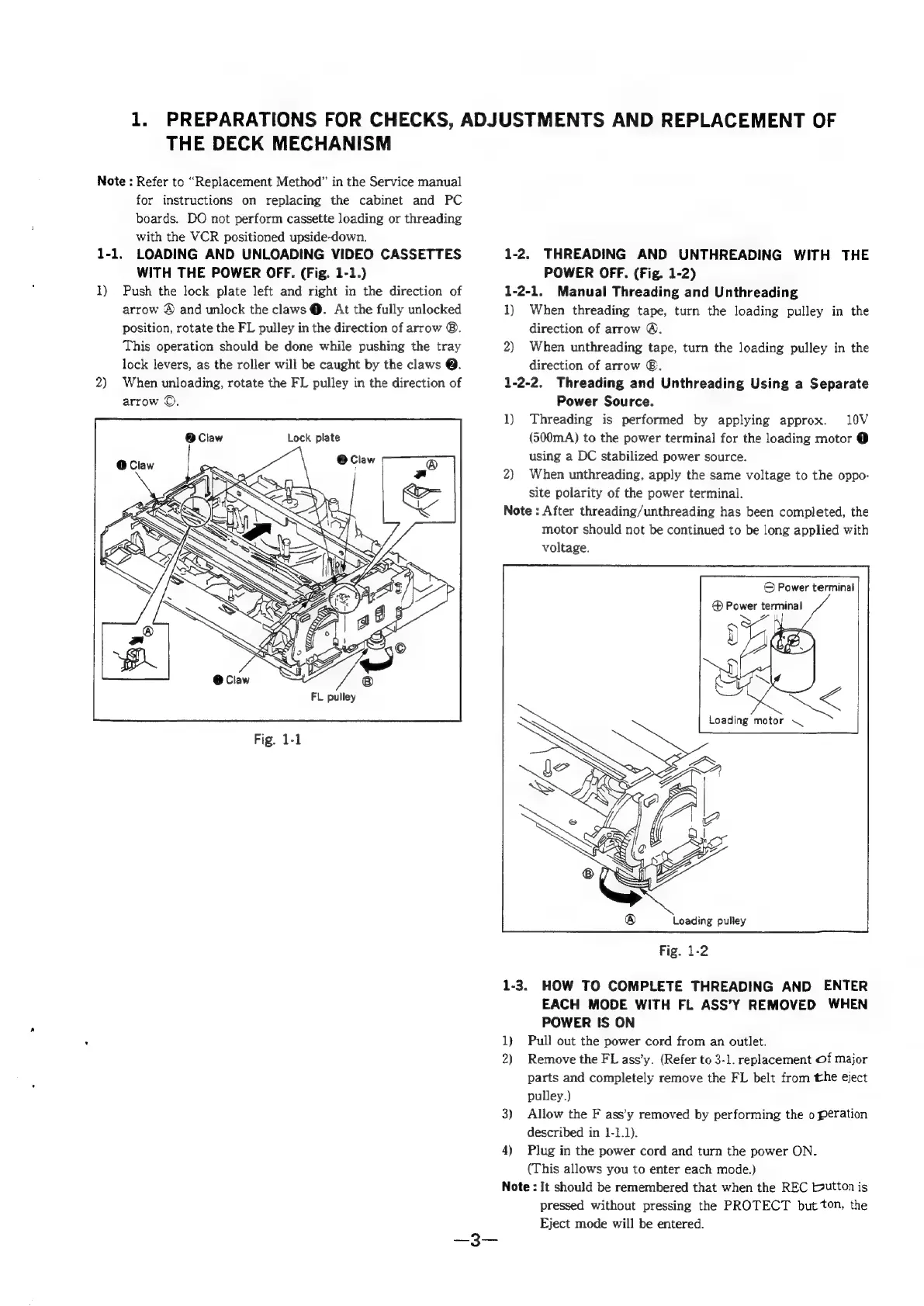

1.
PREPARATIONS
FOR
CHECKS,
ADJUSTMENTS
AND
REPLACEMENT
OF
THE
DECK
MECHANISM
Note
:
Refer
to
“Replacement
Method”
in
the
Service
manual
for
instructions
on
replacing
the
cabinet
and
PC
boards.
DO
not
perform
cassette
loading
or
threading
with
the
VCR
positioned
upside-down.
1-1.
LOADING
AND
UNLOADING
VIDEO
CASSETTES
WITH
THE
POWER
OFF.
(Fig.
1-1.)
1)
Push
the
lock
plate
left
and
right
in
the
direction
of
arrow
@
and
unlock
the
claws
@.
At
the
fully
unlocked
position,
rotate
the
FL
pulley
in
the
direction
of
arrow
®.
This
operation
should
be
done
while
pushing
the
tray
lock
levers,
as
the
roller
will
be
caught
by
the
claws
@.
2)
When
unloading,
rotate
the
FL
pulley
in
the
direction
of
arrow
©.
FL
pulley
Fig.
1-1
—3—
1-2.
THREADING
AND
UNTHREADING
WITH
THE
POWER
OFF.
(Fig.
1-2)
1-2-1.
Manual
Threading
and
Unthreading
1)
When
threading
tape,
turn
the
loading
pulley
in
the
direction
of
arrow
@.
2)
When
unthreading
tape,
turn
the
loading
pulley
in
the
direction
of
arrow
®.
1-2-2.
Threading
and
Unthreading
Using
a
Separate
Power
Source.
1)
Threading
is
performed
by
applying
approx.
10V
(500mA)
to
the
power
terminal
for
the
loading
motor
@
using
a
DC
stabilized
power
source.
2)
When
unthreading,
apply
the
same
voltage
to
the
oppo-
site
polarity
of
the
power
terminal.
Note:
After
threading/unthreading
has
been
completed,
the
motor
should
not
be
continued
to
be
long
applied
with
voltage.
=
©
Power
terminal
@
Power
terminal
san
Loading
pulley
Fig.
1-2
1-3.
HOW
TO
COMPLETE
THREADING
AND
ENTER
EACH
MODE
WITH
FL
ASS’Y
REMOVED
WHEN
POWER
IS
ON
1)
Pull
out
the
power
cord
from
an
outlet.
2)
Remove
the
FL
ass’y.
(Refer
to
3-1.
replacement
Of
major
parts
and
completely
remove
the
FL
belt
from
the
eject
pulley.)
3)
Allow
the
F
ass’y
removed
by
performing
the
operation
described
in
1-1.1).
4)
Plug
in
the
power
cord
and
turn
the
power
ON.
(This
allows
you
to
enter
each
mode.)
Note:
It
should
be
remembered
that
when
the
REC
button
is
pressed
without
pressing
the
PROTECT
button,
the
Eject
mode
will
be
entered.
