Sony SLV-286EE - Internal Views; Top Side; Bottom Side

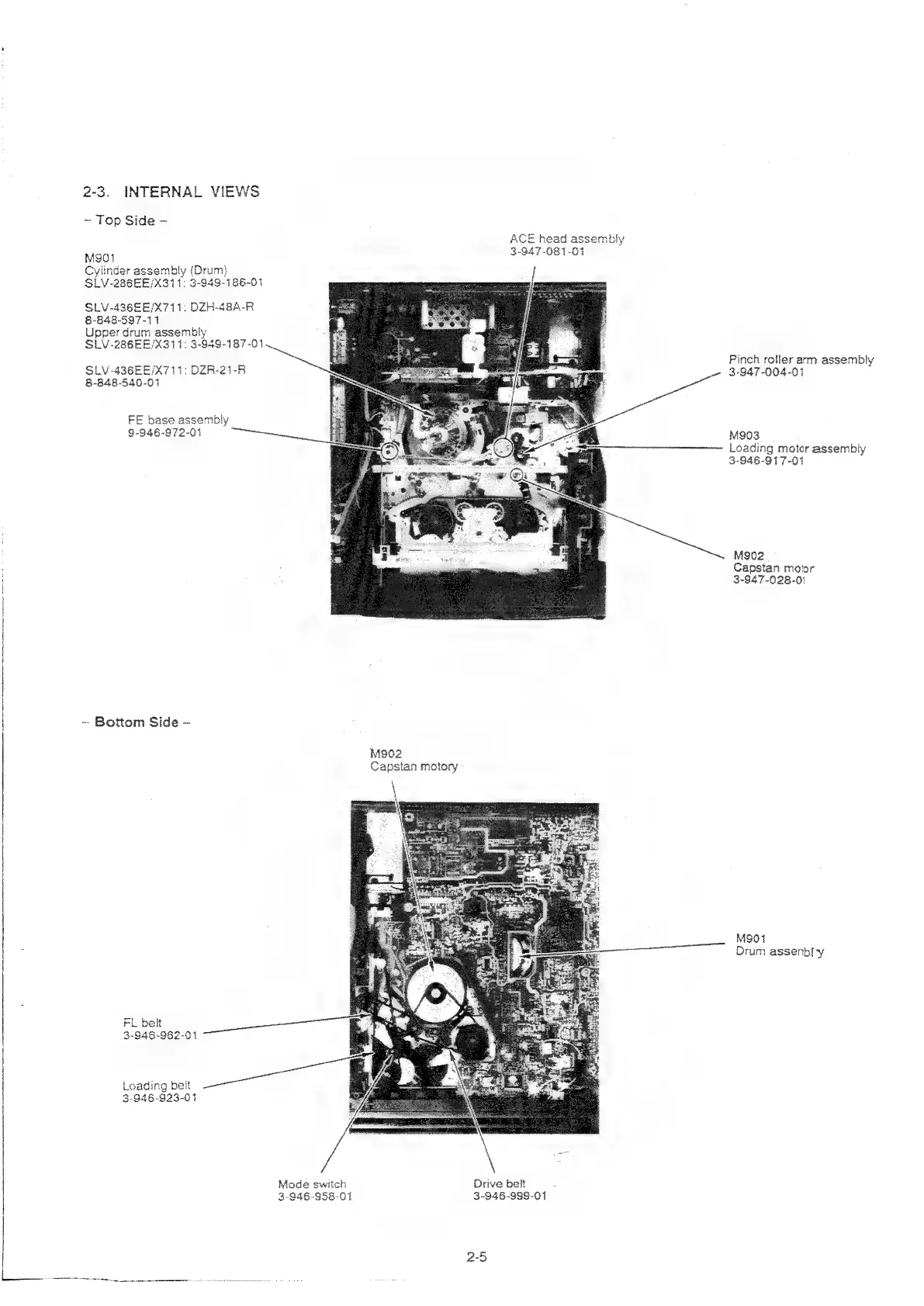

2-3. INTERNAL VIEWS
~ Top Side -
Mgo1
Cylinder assembly (Drum}
SLV-286EE/X311: 3-949-186-01
SLV-436EE/K711;, DZH-484-R
8-848-597-11
Upper drum assembly
SLV-286EE/X31 1: 3-948-187-01
SLV-436EE/X711: DZR-21-R
8-B848-546-01
FE base assembly
9-946-972-01
i ~ Bottom Side —
Loading belt
3-946-923-61
ACE head assembly
3-947 -08 1-04
Pinch roller arm assembly
3-947-004-01
M803
Loading motor assembly
3-846-917-01
—~
Capstan motor
3-947-028-0!
Mso2
Capsian motory
\
Moot
Drum assenbly
Mode switch Drive belt
3-948-858-01 3-946-998-01
