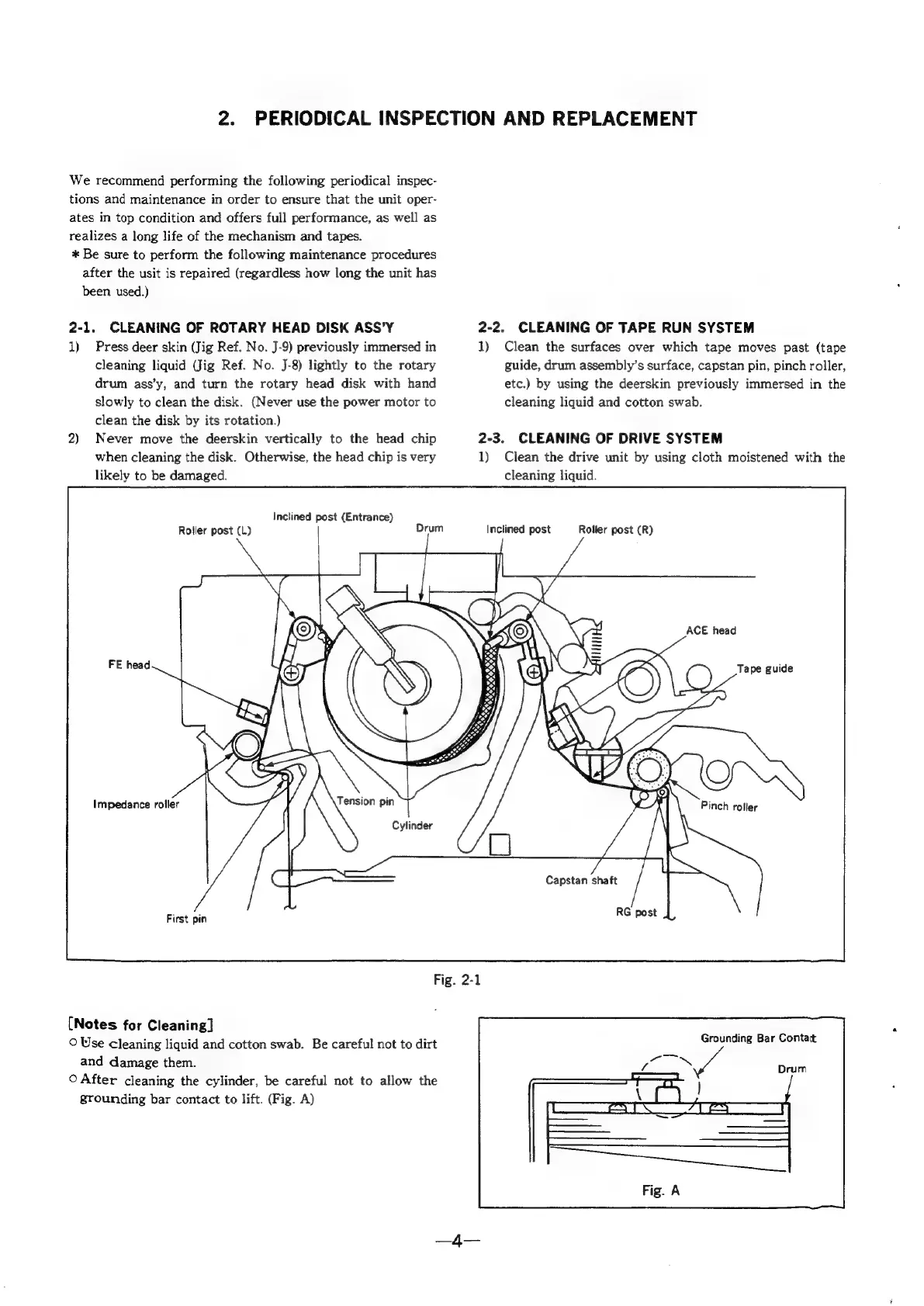

2. PERIODICAL INSPECTION AND REPLACEMENT
We recommend performing the following periodical inspec-
tions and maintenance in order to ensure that the unit oper-
ates in top condition and offers full performance, as well as
realizes a long life of the mechanism and tapes.
* Be sure to perform the following maintenance procedures
after the usit is repaired (regardless how long the unit has
been used.)
2-1. CLEANING OF ROTARY HEAD DISK ASS'Y
1) Press deer skin (Jig Ref. No. J-9) previously immersed in
cleaning liquid (Jig Ref. No. J-8) lightly to the rotary
drum ass’y, and turn the rotary head disk with hand
slowly to clean the disk. (Never use the power motor to
clean the disk by its rotation.)
2) Never move the deerskin vertically to the head chip
when cleaning the disk. Otherwise, the head chip is very
likely to be damaged.
Inclined post (Entrance)
Roller post (L) |
Impedance roller
Cylinder
First pin
2-2. CLEANING OF TAPE RUN SYSTEM
1) Clean the surfaces over which tape moves past (tape
guide, drum assembly’s surface, capstan pin, pinch roller,
etc.) by using the deerskin previously immersed in the
cleaning liquid and cotton swab.
2-3. CLEANING OF DRIVE SYSTEM
1) Clean the drive unit by using cloth moistened with the
cleaning liquid.
Inctined post Roller post (R)
ACE head
7
Rrors
Tape guide
OO F
B23]
fe
Pinch roller
Capstan shaft
RG post
Fig. 2-1
[Notes for Cleaning]
0 Use cleaning liquid and cotton swab. Be careful not to dirt
and damage them.
O After cleaning the cylinder, be careful not to allow the
grounding bar contact to lift. (Fig. A)
Grounding Bar Contart
Drum
