Sony SLV-286EE - @L Motor Assy

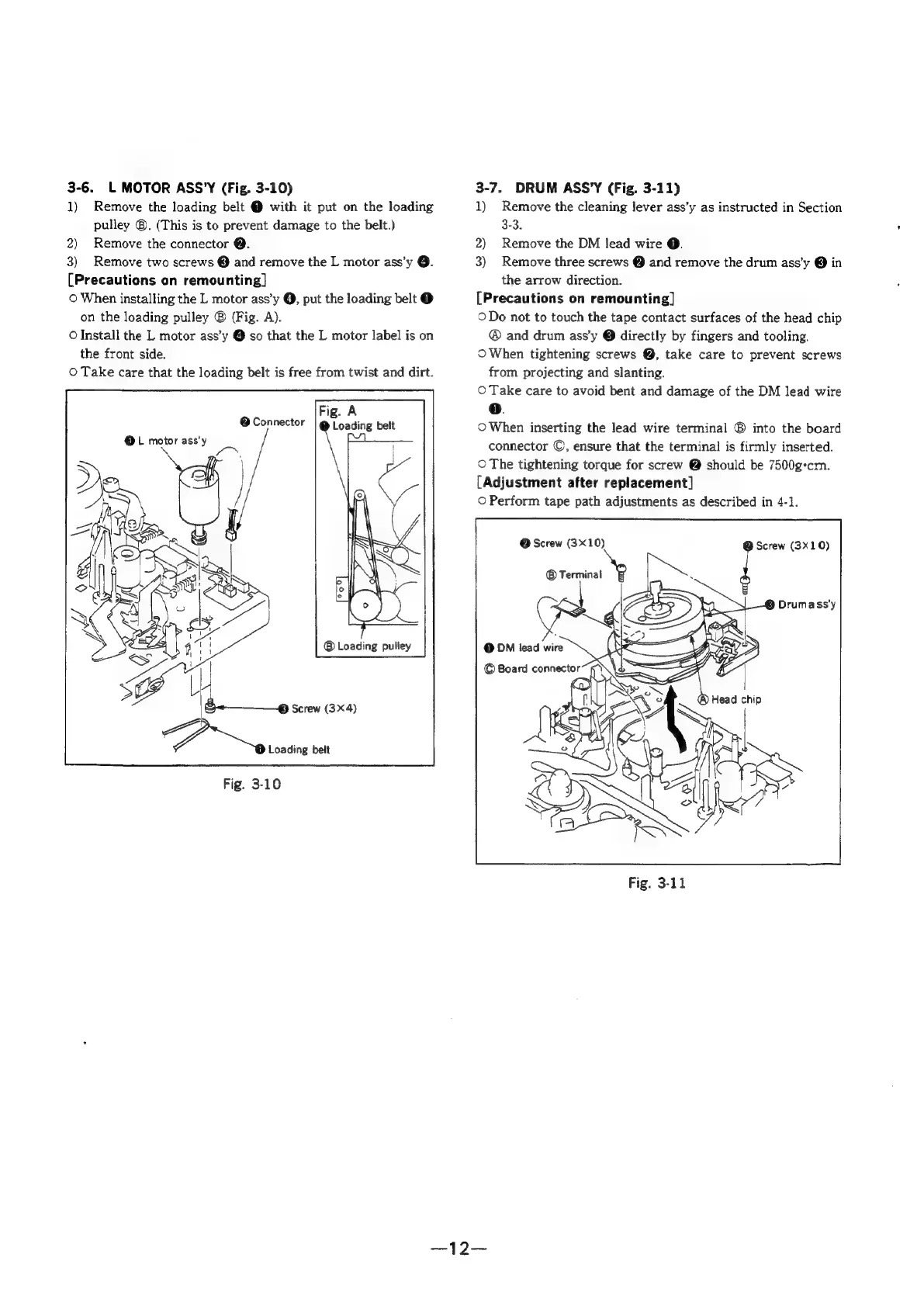

3-6. L MOTOR ASS’Y (Fig. 3-10)
1) Remove the loading belt @ with it put on the loading
pulley ®. (This is to prevent damage to the belt.)
2) Remove the connector @.
3) Remove two screws @ and remove the L motor ass’y @.
[Precautions on remounting]
© When installing the L motor ass’y Q, put the loading belt @
on the loading pulley ® (Fig. A).
O Install the L motor ass’y @ so that the L motor label is on
the front side.
© Take care that the loading belt is free from twist and dirt.
@ Connector
@L motor ass'y
Screw (3X4)
Loading belt
3-7. DRUM ASS’Y (Fig. 3-11)
1) Remove the cleaning lever ass’y as instructed in Section
3-3.
2) Remove the DM lead wire @.
3) Remove three screws @ and remove the drum ass’y @ in
the arrow direction.
[Precautions on remounting]
Do not to touch the tape contact surfaces of the head chip
® and drum ass’y @ directly by fingers and tooling.
© When tightening screws @, take care to prevent screws
from projecting and slanting.
© Take care to avoid bent and damage of the DM lead wire
oe.
O When inserting the lead wire terminal ® into the board
connector ©, ensure that the terminal is firmly inserted.
© The tightening torque for screw @ should be 7500g*crn.
[Adjustment after replacement]
© Perform tape path adjustments as described in 4-1.
@ Screw (3X10) Screw (3X10)
® Terminal
e
@ DM lead wire
B Drumass’y
© Board connector
