Sony SLV-286EE - Replacement of Major Component Parts of the Deck Mechanism

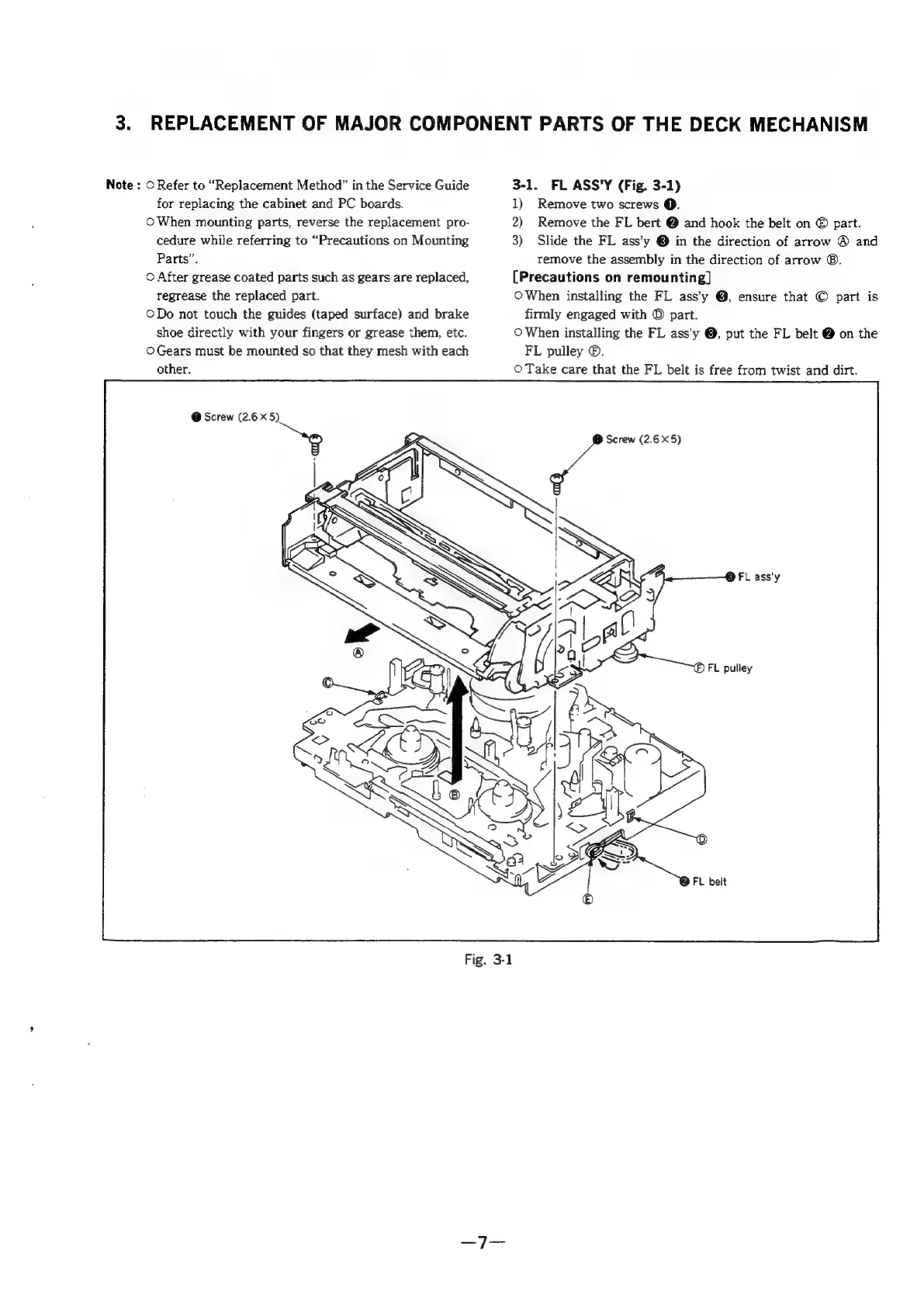

3. REPLACEMENT OF MAJOR COMPONENT PARTS OF THE DECK MECHANISM
Note : © Refer to “Replacement Method” in the Service Guide 3-1. FL ASS’Y (Fig. 3-1)
for replacing the cabinet and PC boards. 1) Remove two screws @.
© When mounting parts, reverse the replacement pro- 2) Remove the FL bert @ and hook the belt on © part.
cedure while referring to “Precautions on Mounting 3) Slide the FL ass’y @ in the direction of arrow ® and
Parts”. remove the assembly in the direction of arrow ®.
© After grease coated parts such as gears are replaced, [Precautions on remounting]
regrease the replaced part. O When installing the FL ass’y @, ensure that © part is
CDo not touch the guides (taped surface) and brake firmly engaged with © part.
shoe directly with your fingers or grease them, etc. © When installing the FL ass’y @, put the FL belt @ on the
©Gears must be mounted so that they mesh with each FL pulley ©.
other. © Take care that the FL belt is free from twist and dirt.
@ Screw (2.6 X 5)
Screw (2.6 X5)
BFL ass'y
(FE) FL pulley
Fig. 3-1
