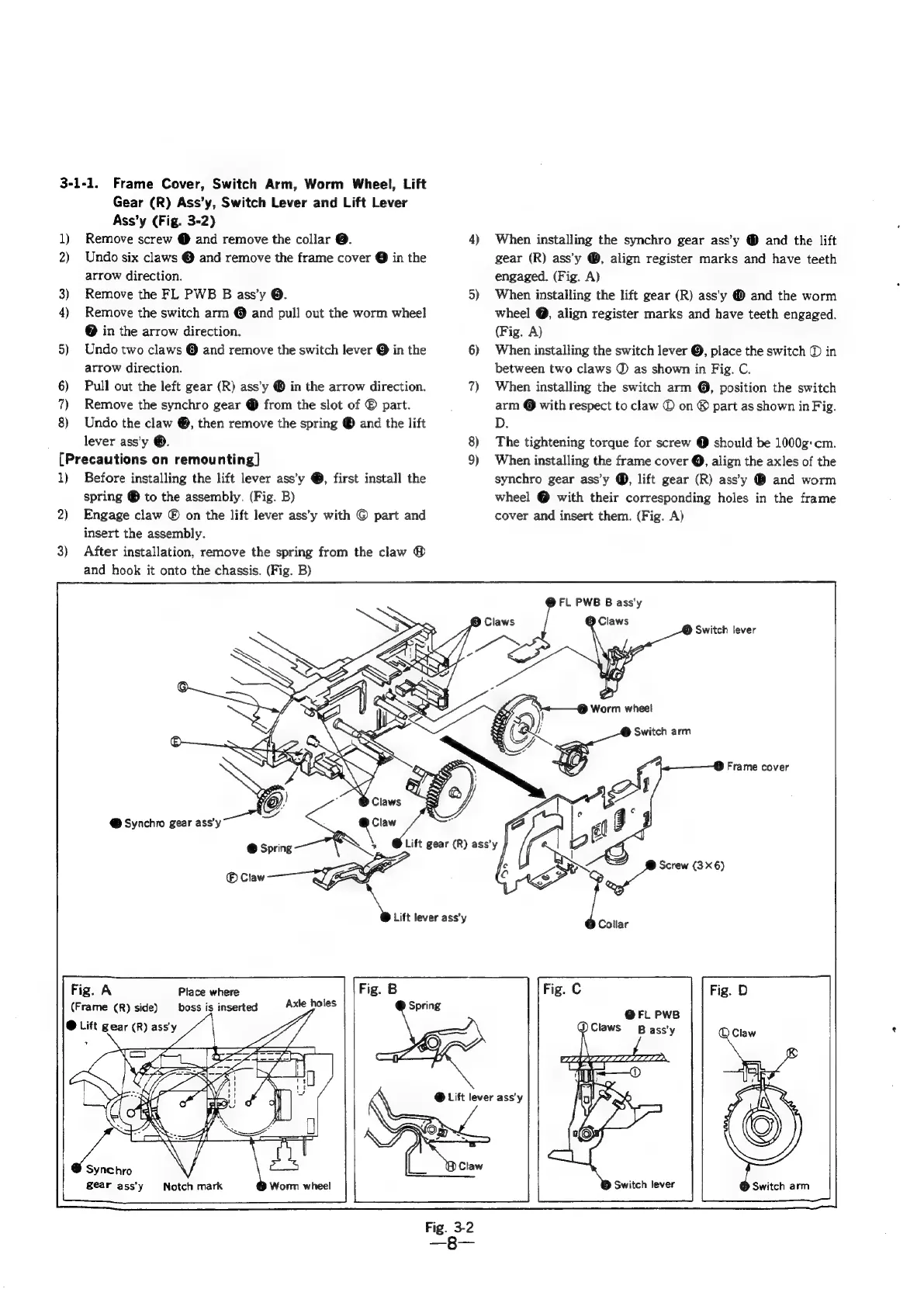

3-1-1. Frame Cover, Switch Arm, Worm Wheel, Lift
Gear (R) Ass’y, Switch Lever and Lift Lever
Ass’y (Fig. 3-2)
1) Remove screw @ and remove the collar @. 4) When installing the synchro gear ass’y @ and the lift
2) Undo six claws @ and remove the frame cover @ in the gear (R) ass’y ®, align register marks and have teeth
arrow direction. engaged. (Fig. A)
3) Remove the FL PWB B ass’y @. 5) When installing the lift gear (R) ass’y @ and the worm
4) Remove the switch arm @ and pull out the worm wheel wheel @, align register marks and have teeth engaged.
@ in the arrow direction. (Fig. A)
5) Undo two claws © and remove the switch lever © in the 6) When installing the switch lever @, place the switch © in
arrow direction. between two claws ® as shown in Fig. C.
6) Pull out the left gear (R) ass’y @ in the arrow direction. 7) When installing the switch arm @, position the switch
7) Remove the synchro gear @ from the slot of © part. arm @ with respect to claw © on © part as shown in Fig.
8) Undo the claw @, then remove the spring ® and the lift Dz
lever ass’y ®. 8) The tightening torque for screw @ should be 1000g:cm.
[Precautions on remounting] 9) When installing the frame cover @, align the axles of the
1) Before installing the lift lever ass’y @, first install the synchro gear ass’y @, lift gear (R) assy @ and worm
spring ® to the assembly. (Fig. B) wheel @ with their corresponding holes in the frame
2) Engage claw ® on the lift lever ass’y with © part and cover and insert them. (Fig. A)
insert the assembly.
3) After installation, remove the spring from the claw @
and hook it onto the chassis. (Fig. B)
FL PWB B ass'y
9 Claws Claws
we Switch lever
@
A f Worm wheel
A Switch arm
® (OA
“6 @ Frame cover
AX
@ Synchro gear ass’y
@ Spring
Screw (3X6)
© Claw
Collar
Fig. A Place where
(Frame (R) side) boss is inserted Axle holes
@ Lift gear (R) assy
@ FL PWB
B ass'y
D Switch lever
gear ass’y Notch mark B Switch arm
