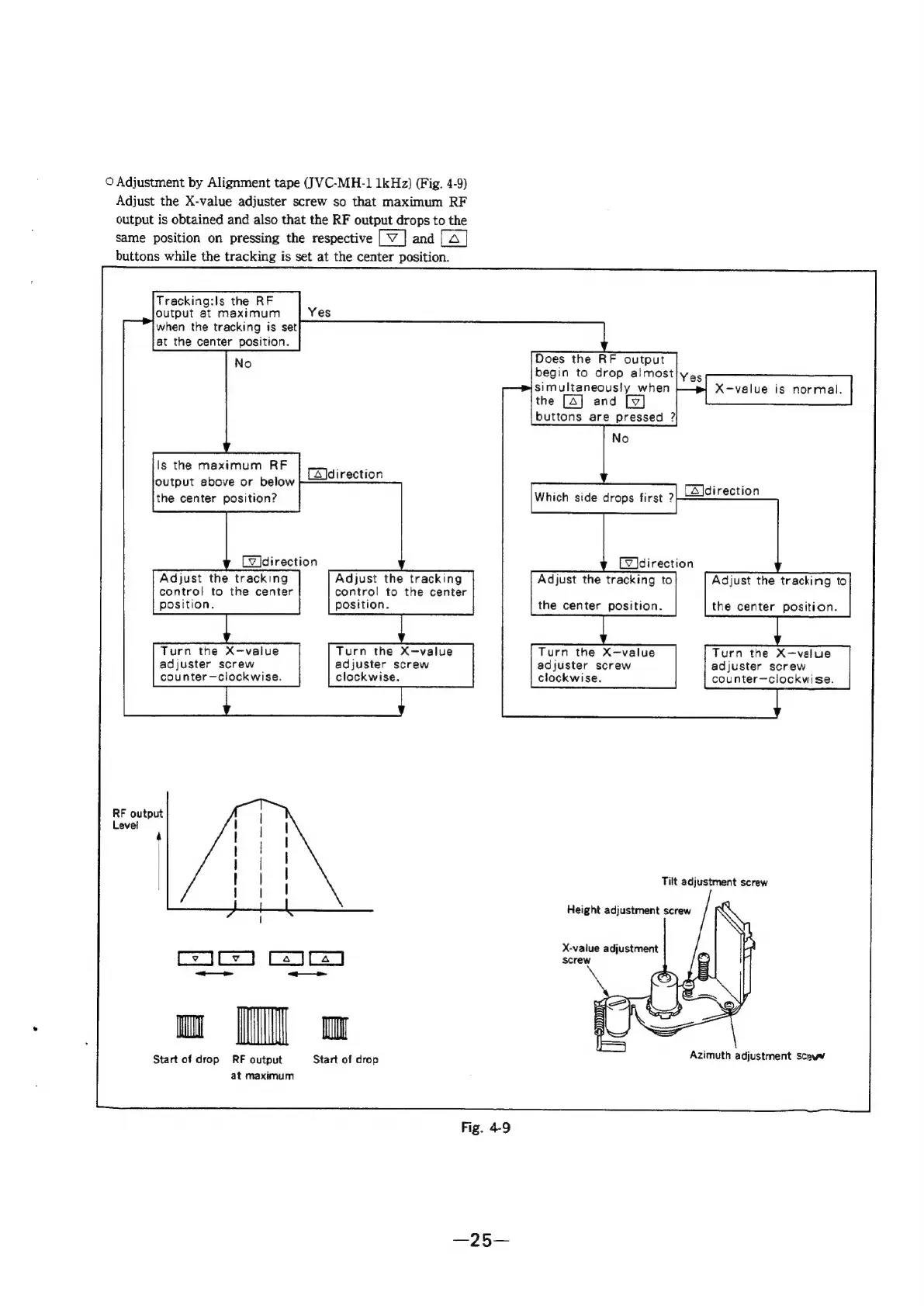

© Adjustment by Alignment tape (JVC-MH-1 1kHz) (Fig. 4-9)
Adjust the X-value adjuster screw so that maximum RF
output is obtained and also that the RF output drops to the
same position on pressing the respective Lv] and [A]
buttons while the tracking is set at the center position.
Tracking:Is the RF
output at maximum
when the tracking is set
at the center position.
Does the RF output
begin to drop almost Yes
simultaneously when X-value is normal.
the [4] and i]
buttons are pressed ?
Is the maximum RF Xidinection
output above or below
the center position? Which side drops first ? [Aldirection
[¥]direction [Vdirection
Adjust the tracking Adjust the tracking Adjust the tracking to Adjust the tracking to
control to the center control to the center
position. position. the center position. the center position.
Turn the X-value Turn the X-value Turn the X—value
adjuster screw — adjuster screw adjuster screw
counter —clockwise. clockwise. clockwise.
Turn the X—value
adjuster screw
counter—clockwise.
RF output
Level
Tilt adjustment screw
<$——$_e
Start of drop RF output Start of drop
at maximum
Fig. 4-9
