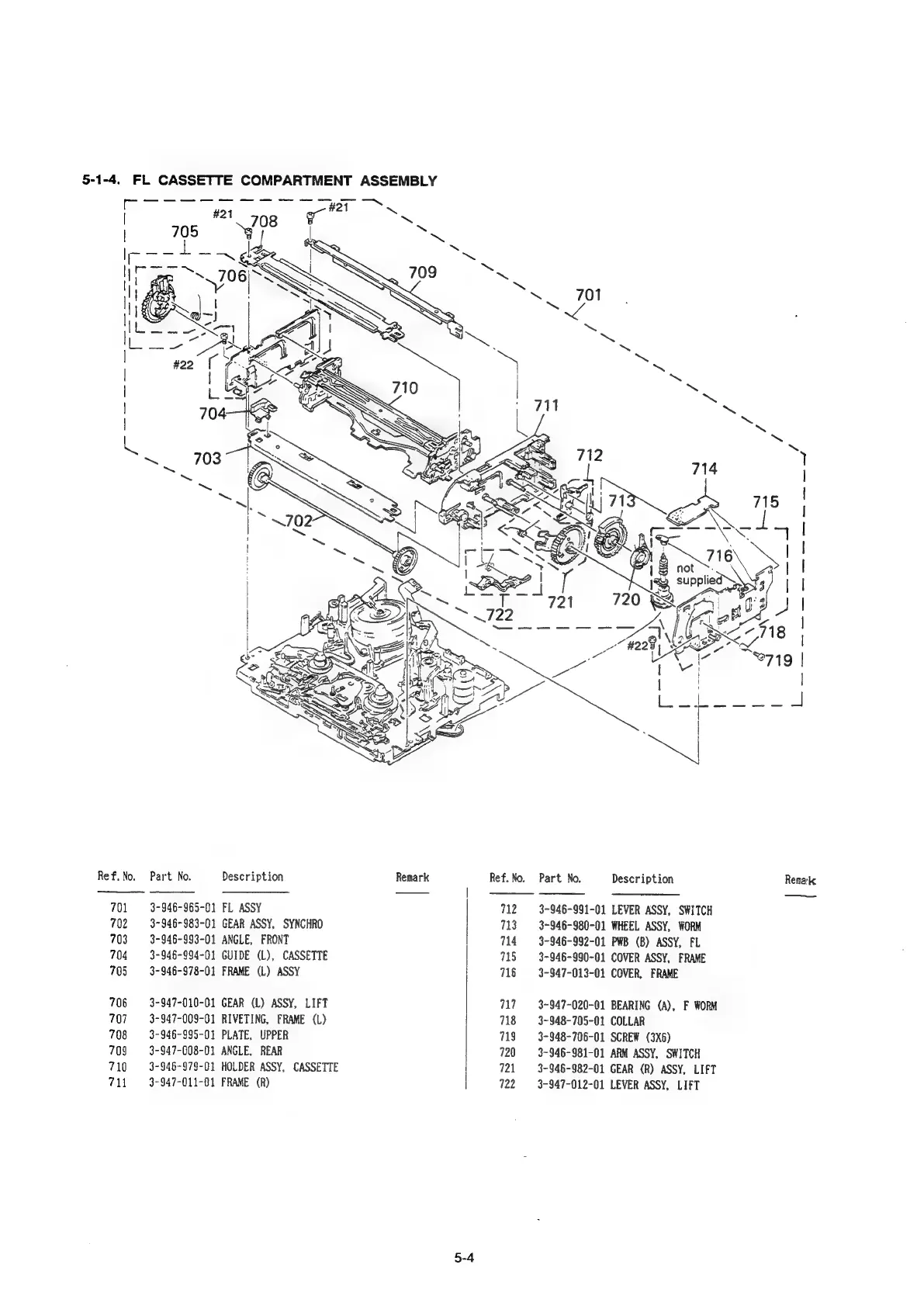

5-1-4. FL CASSETTE COMPARTMENT ASSEMBLY
Ref. No.
701
702
703
704
705
706
707
708
709
710
7
Part No. Description
3-946-965-01 FL ASSY
3-946-983-01 GEAR ASSY, SYNCHRO
3-946-993-01 ANGLE, FRONT
3-946-994-01 GUIDE (L), CASSETTE
3-946-978-01 FRAME (L) ASSY
3-947-010-01 GEAR (L) ASSY, LIFT
3-947-009-01 RIVETING, FRAME (L)
3-946-995-01 PLATE, UPPER
3-947-008-01 ANGLE. REAR
3-946-979-01 HOLDER ASSY, CASSETTE
3-947-011-01 FRAME (R)
Remark
Ref. No.
712
713
714
715
716
717
718
719
720
721
722
Part No. Renak
Description
3-946-991-01 LEVER ASSY, SWITCH
3-946-980-01 WHEEL ASSY, WORM
3-846-952-01 PWB (B) ASSY, FL
3-946-990-01 COVER ASSY, FRAME
3-$47-013-01 COVER, FRAME
3-947-020-01 BEARING (A), F WORM
3-$48-705-01 COLLAR
3-948-706-01 SCREW (3X6)
3-946-981-01 ARM ASSY, SWITCH
3-9$46-982-01 GEAR (R) ASSY, LIFT
3-947-012-01 LEVER ASSY, LIFT
