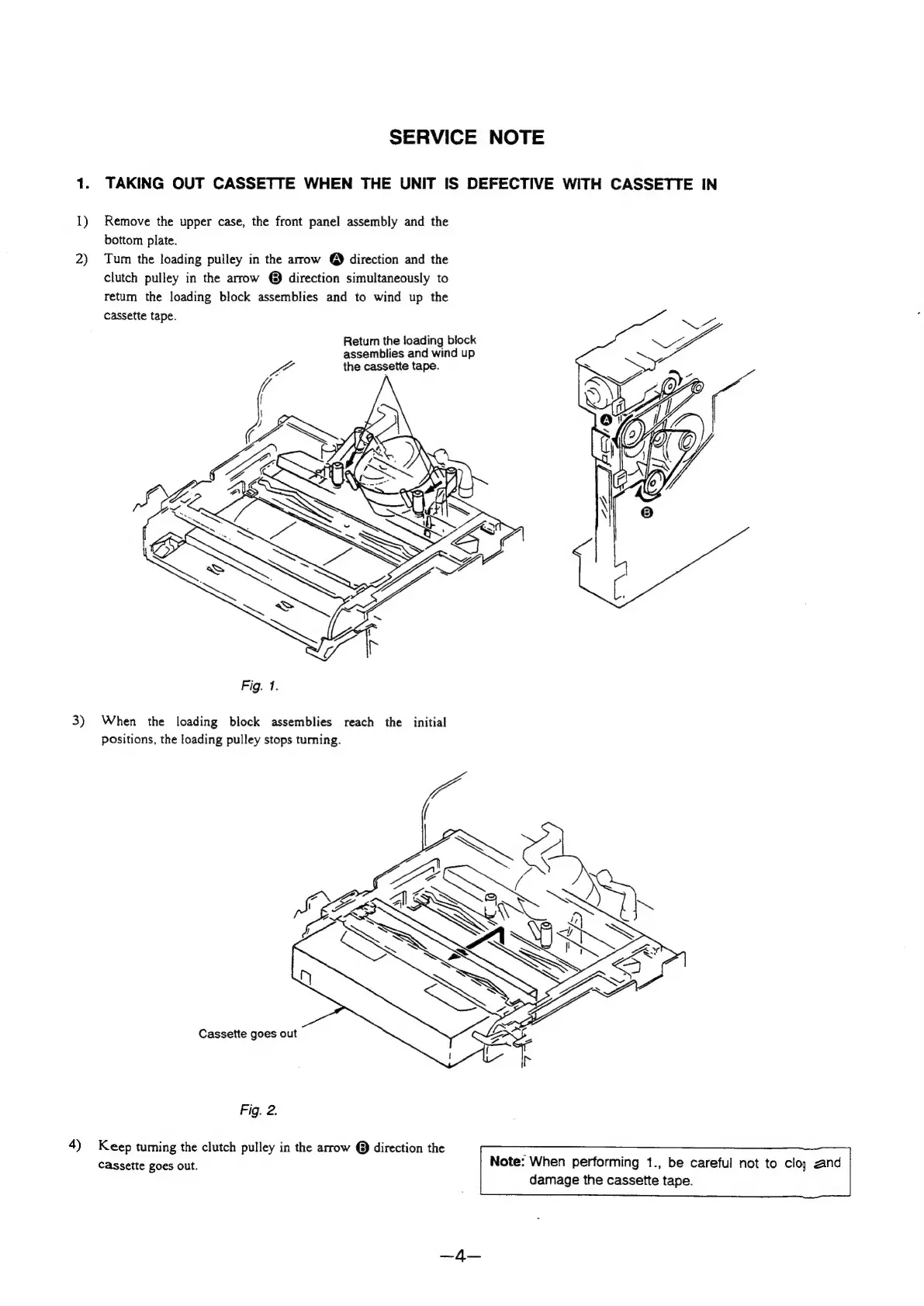

SERVICE NOTE
1. TAKING OUT CASSETTE WHEN THE UNIT IS DEFECTIVE WITH CASSETTE IN
1) Remove the upper case, the front panel assembly and the
bottom plate.
2) Tum the loading pulley in the arrow @) direction and the
clutch pulley in the arrow @ direction simultaneously to
retum the loading block assemblies and to wind up the
Cassette tape.
Return the loading block
assemblies and wind up
a the cassette tape.
Fig. 1.
3) When the loading block assemblies reach the initial
positions, the loading pulley stops turning.
Cassette goes out
Fig. 2.
4) Keep tuming the clutch pulley in the arrow @ direction the
cassette goes out. Note: When performing 1., be careful not to cloy and
damage the cassette tape.
