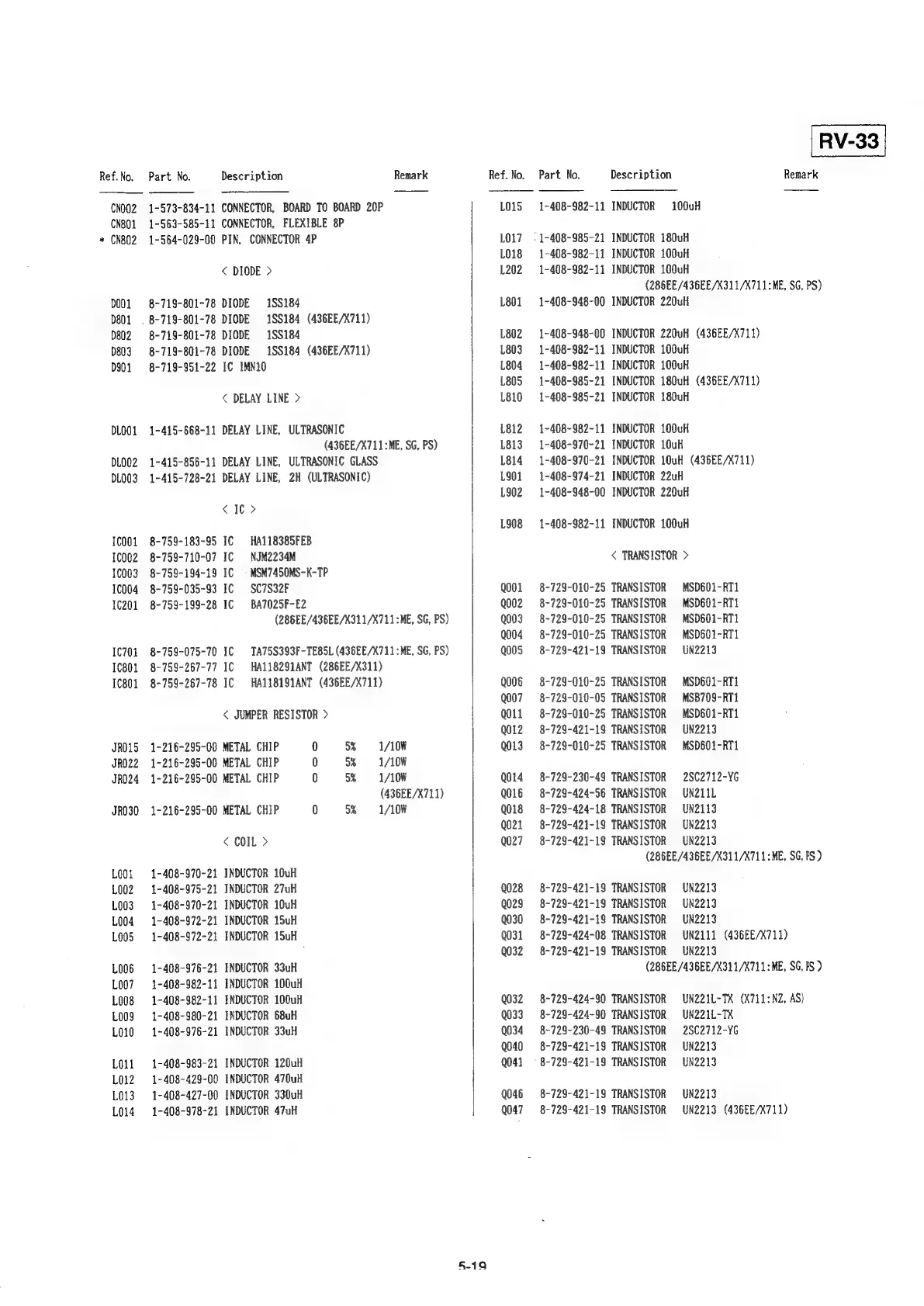

Sony SLV-286EE - Page 70

Ref.No. Part No. Description Remark Ref. No. Part No. Description Remark
CNO02 1-573-834-11 CONNECTOR, BOARD TO BOARD 20P L015 1-408-982-11 INDUCTOR 100uH
CN801 1-563-585-11 CONNECTOR, FLEXIBLE 8P
* (N802 1-564-029-00 PIN, CONNECTOR 4P L017 = 1-408-985-21 INDUCTOR 180uH
L018 1-408-982-11 INDUCTOR i100uH
< DIODE > L202 1-408-982-11 INDUCTOR 100uH
(286EE/436EE/X311/X711:ME, SG, PS)
D001 8-719-801-78 DIODE 188184 L801 1-408-948-00 INDUCTOR 220uH
D801 + 8-719-801-78 DIODE 188184 (436EE/X711)
D802 «=«8-719-801-78 DIODE 188184 L802 1-408-948-00 INDUCTOR 220uH (436EE/X711)
D803 8-719-801-78 DIODE 188184 (436EE/X711) L803 1-408-982-11 INDUCTOR 100uH
D901 «= 8-719-951-22 IC IMNi0 L804 1-408-982-11 INDUCTOR 100uH
L805 1-408-985-21 INDUCTOR 180uH (436EE/X711)
< DELAY LINE > L810 1-408~-$85-21 INDUCTOR 180uH
DLOO1 = 1-415-668-11 DELAY LINE, ULTRASONIC L812 1-408-982-11 INDUCTOR 100uH
(436EE/X711:ME, SG, PS) L813 1-408-970-21 INDUCTOR 10uH
DLOQ2 1-415-856-11 DELAY LINE, ULTRASONIC GLASS L814 1-408-970-21 INDUCTOR 10uH (436EE/X711)
DLOO3 1-415-728-21 DELAY LINE, 2H (ULTRASONIC) L901 1-408-974-21 INDUCTOR 22uH
L902 1-408-948-00 INDUCTOR 220uH
< IC >
L908 1-408-$82-11 INDUCTOR 100uH
16001 8-759-183-95 IC HA118385FEB
1C002 8-759-710-07 IC NJM2234M < TRANSISTOR >
1¢003 8-759-194-19 IC | MSM7450MS-K-TP
1€004 8-759-035-93 IC SC7S32F Q001 8-729-010-25 TRANSISTOR MSD601-RT1
10201 8-759-199-28 IC BA7025F-E2 Q002 8-729-010-25 TRANSISTOR MSD6&01-RT1
(286EE/436EE/X311/X711 :ME, SG, PS) Q003 8-729-010-25 TRANSISTOR MSD601-RT1
Q004 8-729-010-25 TRANSISTOR MSD601-RT1
1C701 8-759-075-70 IC TA75S393F-TE8SL (436£E/X711:ME, SG, PS) Q005 8-729-421-19 TRANSISTOR UN2213
1C801 8-759-267-77 IC HA118291ANT (286EE/X311)
1C801 8-759-267-78 IC HAII8191ANT (436EE/X711) Q006 8-729-010-25 TRANSISTOR MSD601-RT1
Q007 8-729-010-05 TRANSISTOR MSB709-RTi
< JUMPER RESISTOR > Q011 8-729-010-25 TRANSISTOR MSD601-RT1
Q012 8-729-421-19 TRANSISTOR UN2213
JRO15 1-216-295-00 METAL CHIP 0 5% =-1/10¥ Q013. 8-729-010-25 TRANSISTOR MSD601-RT1
JRO22 1-216-295-00 METAL CHIP 0 5% 1/10W
JRO24 1-216-295-00 METAL CHIP 0 5% 1/10W Q014 8-729-230-49 TRANSISTOR 28C2712-YG
(436EE/X711) Q016 8-729-424-56 TRANSISTOR UN211L
JRO30 1-216-295-00 METAL CHIP 0 5% ~=—s«1/10W Q018 8-729-424-18 TRANSISTOR UN2113
Q021 8-729-421-19 TRANSISTOR UN2213
< COIL > Q027 =8-723-421-19 TRANSISTOR UN2213
(286EE/436EE/X311/X711:ME, SG, PS)
L001 1-408-970-21 INDUCTOR 10uH i
£002 1-408-975-21 INDUCTOR 27uH Q028 8-729-421-19 TRANSISTOR UN2213
L003 1-408-970-21 INDUCTOR 10uH Q029 = 8-729-421-19 TRANSISTOR UN2213
L004 1-408-972-21 INDUCTOR 15uH Q030 8-729-421-18 TRANSISTOR UN2213
L005 1-408-972-21 INDUCTOR 15uH Q031 8-729-424-08 TRANSISTOR UN2111 (436EE/X711)
; Q032 8-729-421-19 TRANSISTOR UN2213
L006 1-408-976-21 INDUCTOR 33uH (286EE/436EE/X311/X711:ME, SG, PS)
L007 1-408-982-11 INDUCTOR 100uH
L008 1-408-982-11 INDUCTOR 100uH Q032 8-729-424-90 TRANSISTOR UN221L-TX (X711:NZ, AS
L009 1-408-980-21 INDUCTOR 68uH Q033. 8-729-424-90 TRANSISTOR UN221L-TX
L010 1-408-976-21 INDUCTOR 33uH Q034 8-729-230-49 TRANSISTOR 2S8C2712-YG
Q040 8-729-421-19 TRANSISTOR UN2213
LO1i 1-408-983-21 INDUCTOR 120uH Q041 = 8-729-421-19 TRANSISTOR UN2213
LOl2 1-408-429-00 INDUCTOR 470uH
L013. 1-408-427-00 INDUCTOR 330uH Q046 8-729-421-19 TRANSISTOR UN2213
L014: 1-408-978-21 INDUCTOR 47uH Q047 8-729-421-19 TRANSISTOR UN2213 (436EE/X711)
