Sony XVS-G1

26
Pattern limit setting buttons
The following functions can be assigned to the four
butt
ons at the top only.
Main/sub switching buttons (multi program 2
mode)
The following functions can be assigned to the four
butt
ons at the top only.
b Display
Displays the transition rate.
c Fader lever/transition indicator

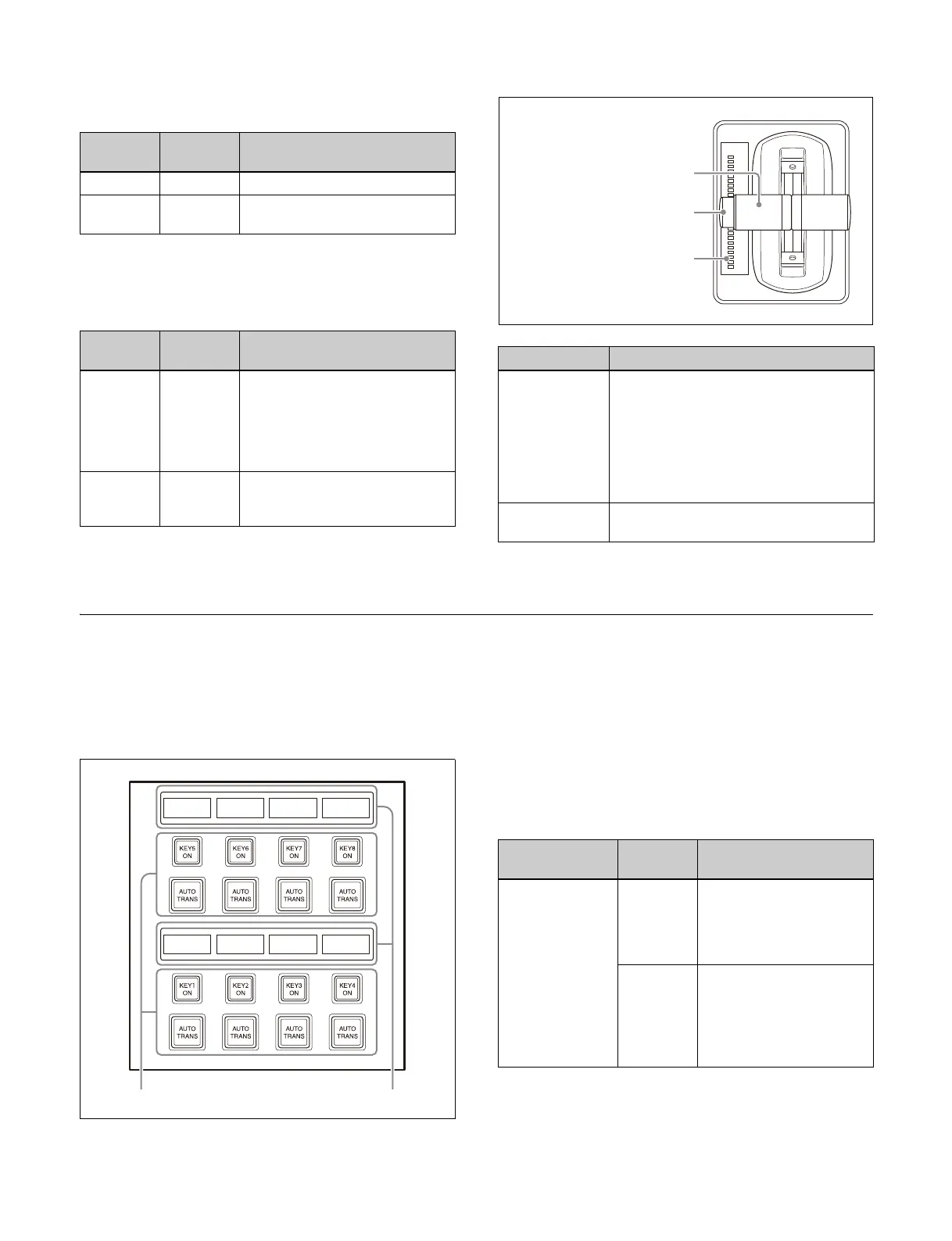

Independent Key Transition Control Block
The independent key transition control block is used to
execute independent key transitions.
For details, see “Chapter 5 Transitions” (page 93).
a Independent key transition execution buttons
(assignable buttons)
You can assign execution buttons for independent key
t
ransitions in the Home > Setup > Panel > Module >
Button Assign menu (19104.21).
For details about assign
ing buttons, see “Assigning
Control Panel Buttons” (page 397).
Function
name
Button
name
Description
Limit Set LIMIT SET Sets the pattern limit.
Pattern
Li
mit
PTN LIMIT Enables the pattern limit.
Function
name
Button
name
Description
Main MAIN Switches operation to the
function
on the main side in multi
program 2 mode.
Simultaneously pressing the
[SUB] bu
tton activates both the
main and sub operations.
Sub SUB Switches operation to the
function
on the sub side in multi
program 2 mode.
Name Description
Fader lever Move this up or down to execute a
transitio
n.
You can press the [KF] button, turning it
on, to use the fader lever as a keyframe
fader.
You can press the lock button to unlock
the fade
r lever and split it into two for use
as split faders.
Transition
indicator
Displays the transition progress using
LEDs.
Transition indicator
Fader lever
Lock button
ab
Function name Button
name
Description
Current Bank:
Key 1 Transition
to Key 8
Tra
nsition
KEY1 ON
to KEY8
ON
Inserts or removes a key
in
stantaneously.
If a key is currently
in
serted, the button is lit
amber.
AUTO
TRANS
Inserts or removes a key
au
tomatically with the set
transition rate and
transition type.
During the transition, the
bu
tton is lit amber.
