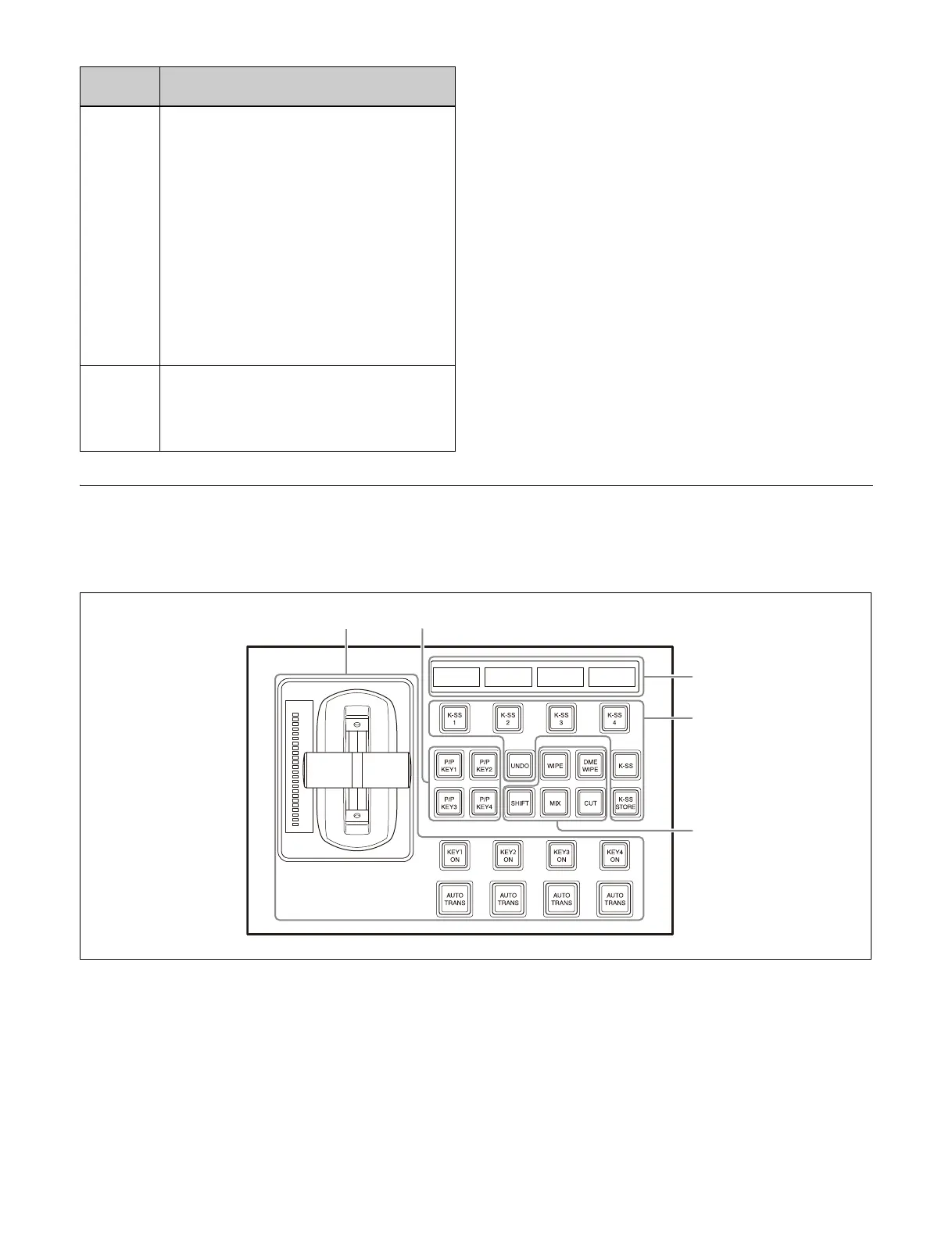

Key Fader Control Block
The key fader control block is used for independent key
transition and key snapshot operations.
For details, see “Chapter 5 Transitions” (page 93) and
“Key Snapshots” (page 145).
a Key
delegation buttons
There are four key delegation buttons (1 to 4) in the order
top l
eft, top right, bottom left, and bottom right.
You can assign keys of any switcher banks (M/E-1 to
M/E-5, P/P) in the Home >
Setup > Panel > Module >
Button Assign menu (19104.21).
For details about assign
ing buttons, see “Assigning
Control Panel Buttons” (page 397).
AUTO
DELEG
Switches the delegation of the key control
block automatically in sync with the following
control block buttons.
• Transition control block: [KEY1] to [KEY8]
bu
ttons
• Cross-point pad in the cross-point control
block: [KEY1] to [KEY8] buttons
• 1st row on the cross-point control block
(key/AUX
bus delegation mode): [KEY1] to
[KEY8] buttons
• Memory recall section on the Flexi Pad
control block (key
operation mode): [KEY1]
to [KEY8] buttons
• Key fader control block: Key delegation
bu
ttons
MORE Lights up amber when there are six or more
parameters.
When the [MORE] button is pressed, turning it
on green, the 6th and subsequent parameters
are displayed.
Button
name
Description
ab
e
d
c
