Sony XVS-G1

40
Bank selection buttons b Memory recall section (memory recall buttons)
This section displays the functi
ons assigned to the buttons
for the selected operation mode.
When using two utility/shotbox control blocks, the
memory rec
all button settings are common to both.

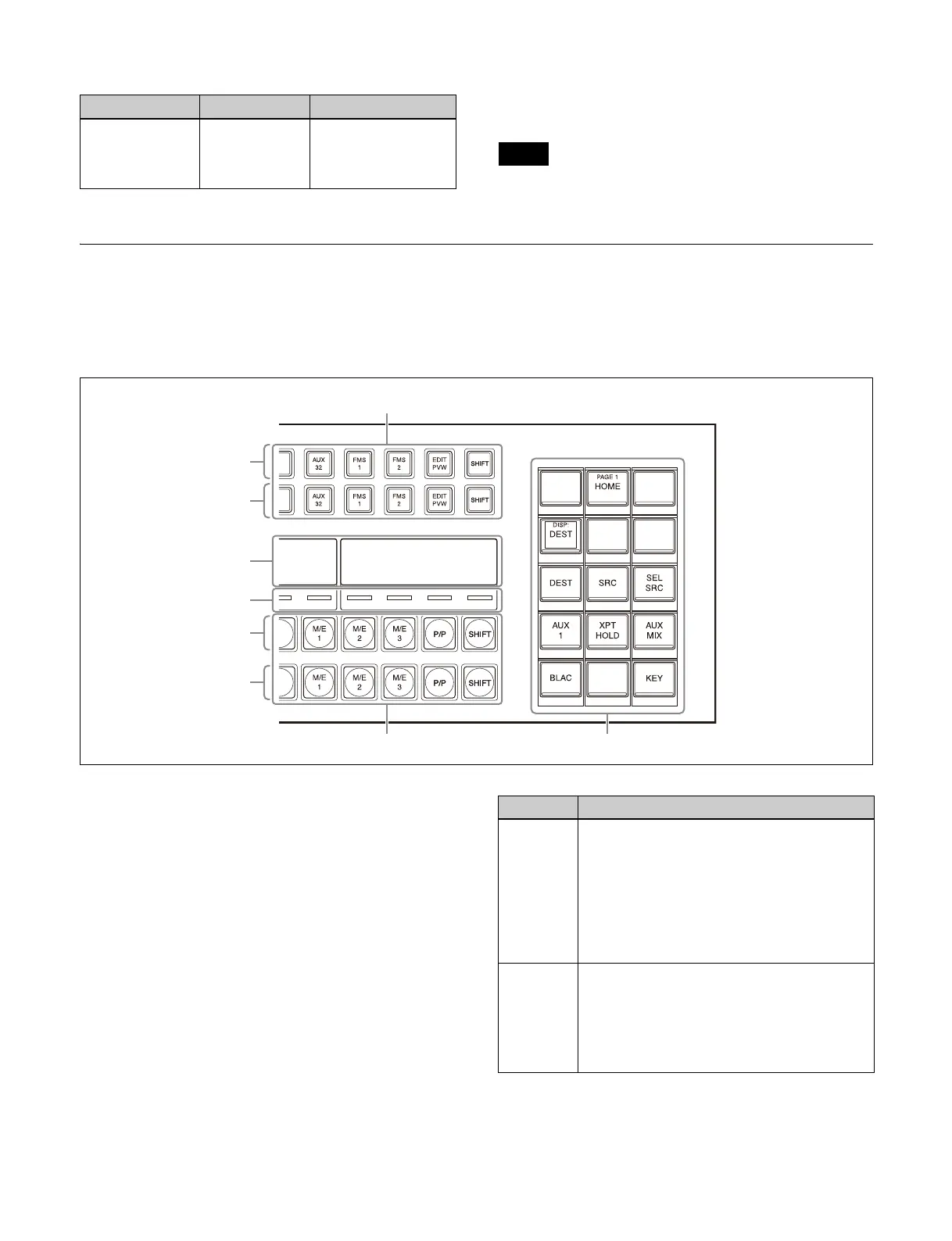

AUX Bus Control Block
The AUX bus control block is used for selecting signals
used on buses, for router operations, and other tasks.
The AUX bus control block has two modes: AUX bus
operation mode and router operation mode. To switch to
router operation mode, press the [RTR MODE] button,
turning it on, in the cross-point pad.
a Bu
tton rows
The 1st row and 2nd row are used as delegation button
rows, an
d the 3rd row and 4th row are used as cross-point
button rows.
AUX bus operation mode
Uses the 1st row and 2nd delegation buttons to select
bu
ses, and the 3rd row and 4th row cross-point buttons to
select signals.
For details, see “Chapter 4 Selecting Signals”
(page 80).
Function name Button name Description
Bank 1 to Bank
20
BANK1 to
BANK20
Switches the memory
recall section
to
function recall mode
of the selected bank.
Note
a
a
d
b
c
1st row
3rd row
4th row
2nd row
Name Description
1st row • When second delegation mode is enabled,
sel
ects the bus to assign to the 3rd row.
• When second delegation mode is disabled,
selects the bus (bus in unshifted state of
delegation buttons) to assign to the 3rd row
and 4th row.
You can select the bus in the shif
ted state
while pressing the shift button.
2nd row • When second delegation mode is enabled,
sel
ects the bus to assign to the 4th row.
• When second delegation mode is disabled,
sel
ects the bus (bus in shifted state of
delegation buttons) to assign to the 3rd row
and 4th row.
