8 Calibration and adjustment
206718 rev 9
SOREDEX 93

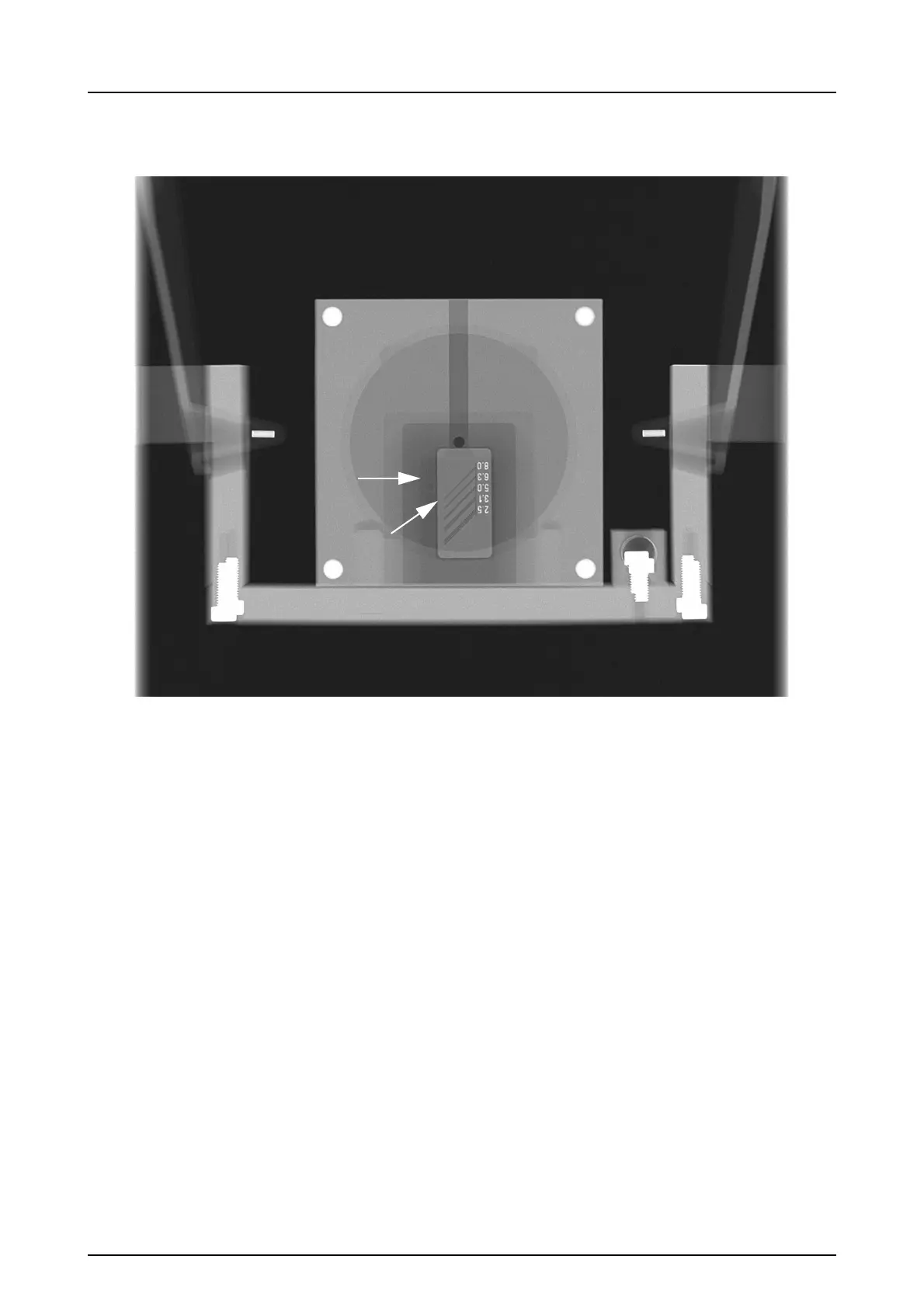

5. Visually evaluate the result using the installed imaging
software.
Subjects to be evaluated:
1. Smoothness of the exposed area. Non-exposed area
surrounds the whole image.
2. High contrast resolution; minimum 3.1LP/mm must be
distinguishable.
3. All four low contrast holes must be visible.
