SOREDEX 9
2 Unit description
2.1 Main parts and controls
PC with MDD approved dental imaging software and 3D
viewing software (not included).
All software must conform to the MDD and the relevant
legal requirements in the USA.
The PC must conform to all the unit and dental imaging
software requirements.

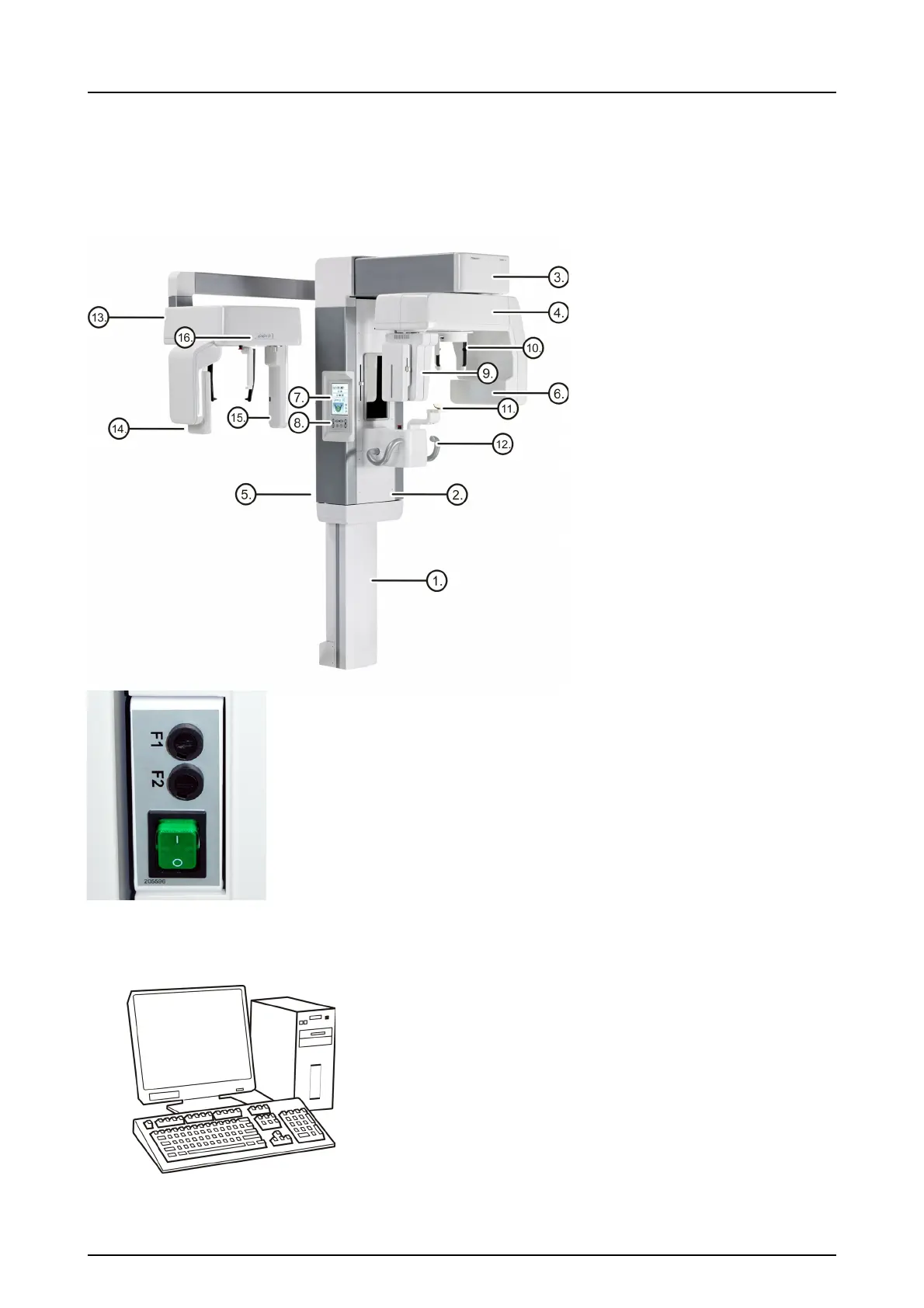

1. Column
2. Carriage
3. Main support
4. Rotating unit
5. On / off switch (rear of
carriage) and main fuses
6. Tubehead assembly
7. ClearTouch™control panel
8. Patient positioning panel
9. Sensor head
10.Head support
11.Chin rest
12.Handles
13.Cephalometric unit
14.Cephalometric sensor
15.Secondary collimator
16.Patient positioning panel
On/off switch (used to power the unit on
and off) and main fuses.
