8 Calibration and adjustment
206718 rev 9
SOREDEX 87

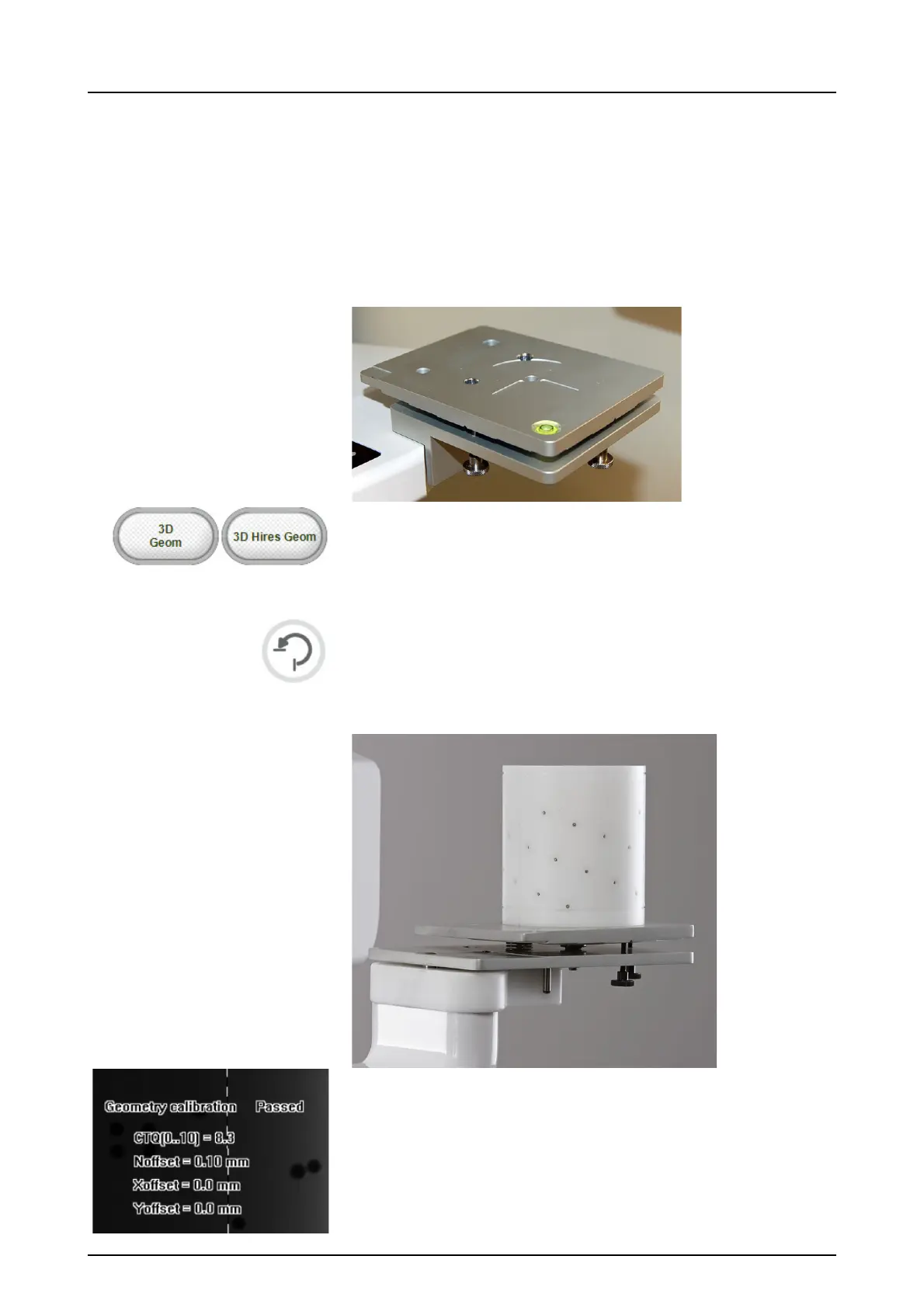

8.4 3D calibration
8.4.1 3D geometry calibration
1. Attach the 3D phantom base (bubble level assembly) to
the lower shelf. Level it using the screws on the bottom
of the phantom base and the bubble on top of the phan-
tom base.
2. Select the program.There is a calibration procedure for
both 3D imaging modes, standard and high resolution.
Standard geometry calibration has to be done first.
3. Press Return.
4. Install the 3D calibration phantom.
5. Take an exposure.
6. Repeat the calibration until calibration result “passed” is
achieved. This calibration is only needed with 3D units.
