Waukesha Cherry-Burrell
®
Brand Universal 3 Pump Pump Dimensions
11/2018 95-03103 Page 101
Pump Shaft Guards
Full guards must be installed to isolate operators and maintenance personnel from rotating components.
Guards are provided as part of a complete pump and drive package and are selected by SPX FLOW
Engineering for the pump, base, and motor ordered. Do not modify the guard provided by SPX FLOW. If the
guard provided by SPX FLOW is lost, contact SPX FLOW Customer Service and provide your order number or
PO number of the pump to order a correctly-sized replacement guard.
If the pump was not purchased as a unit, it is the responsibility of the customer to ensure proper guarding.
Refer to your local regulations for guidance.

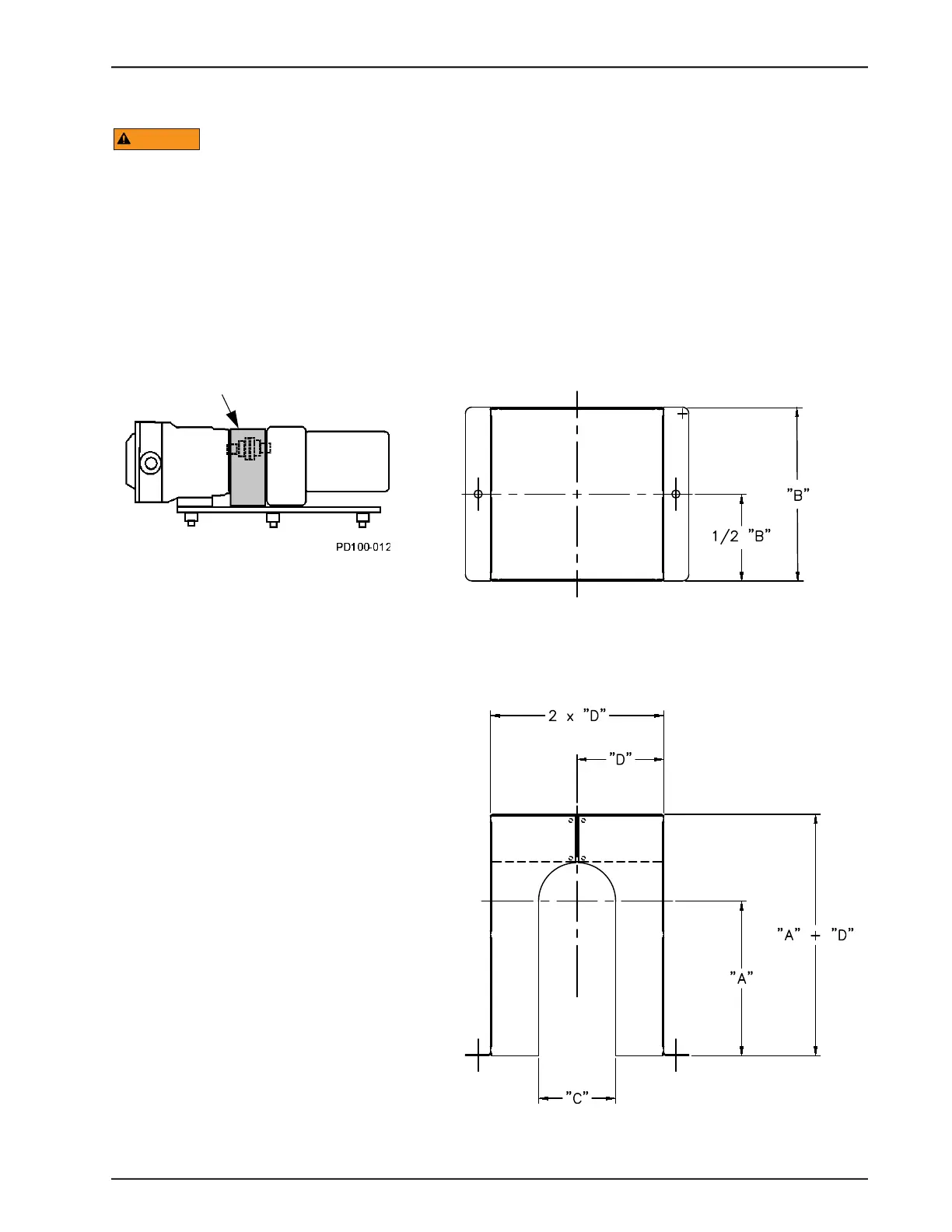

Guard (side view) shown as supplied
with an SPX FLOW base package
Top view
Front view
NOTE: Dimensions A, B, C, and D depend
on the specific pump unit configuration.
